LGAM-7-27-24-58 GPS+MIMO 5G/4G + WIFI 3m SMA P

Panorama Antennas

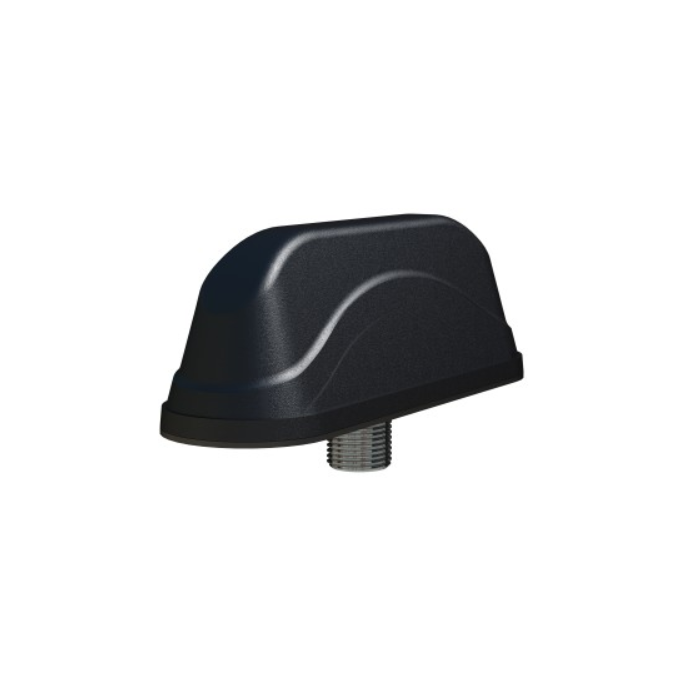

Low Profile GPS+MIMO 5G/4G+WIFI 3m cable SMA

Out of stock

SKU
LGAM-7-27-24-58
$110.00

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / LGAM-7-27-24-58 GPS+MIMO 5G/4G + WIFI 3m SMA P

·        Low Profile Design

·        MiMo 5G/4G + 2x2 MiMo 2.4/ 5GHz

·        GPS/GNSS

More Information

brand Panorama Antennas
Specifications
Electrical Data
LTE Frequencies 698-960/1710-2170/2500-3800MHz
Global Positioning Optional GPS L1 1575; GPS L1 1575
Wifi Frequencies 2.4/5.0GHz - (Optional)
Peak Gain (dBi) 5
LTE MiMo 2x2
WiFi MiMo 2x2
Max Input Power (W) 25
Pattern Omni-directional
Ground Plane Independent Yes
Global Positioning Data
LNA Gain (dB) 26
Mechanical Data
Length (mm) 150
Width (mm) 44
Height (mm) 50
Mounting Data
Mounting Type Panel Mount
Mounting Method 18mm (3/4\") Mounting Bush
Description

·        Low Profile Design

·        MiMo 5G/4G + 2x2 MiMo 2.4/ 5GHz

·        GPS/GNSS
