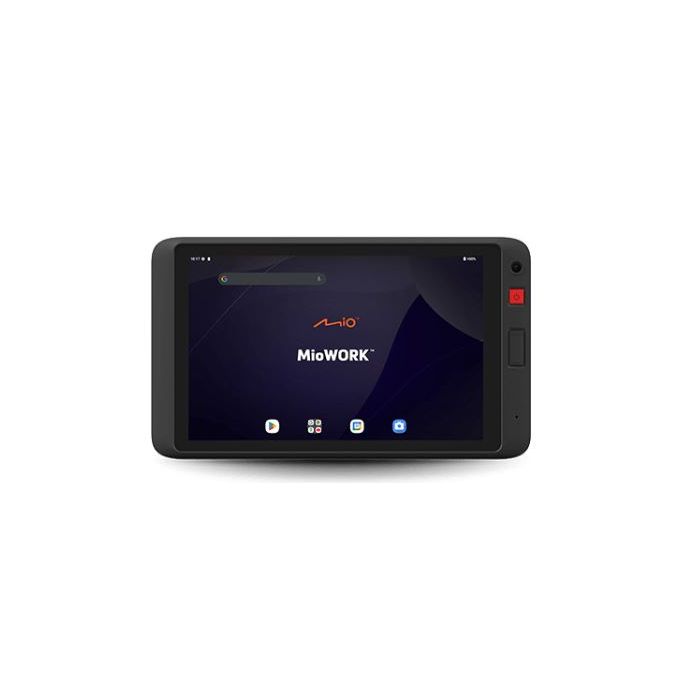

MioWORK 8" F840 Industrial Tablet

Mio

8-inch Capacitive Touch Industrial Tablet 600nit

Key Features:

  • 8-inch capacitive touch panel with anti-glare coating
  • Androidâ„¢ 13.0 (GMS)
  • 8-core Qualcomm processor, on-device AI intelligence
  • IP54 water & dust proof, up to 1.8m drop & 20G shock resistant
  • Serviceable battery with advanced power management
  • Five types of dedicated vehicle cradles
  • Built-in 4G LTE, Wi-Fi, NFC, Bluetooth, GPS
  • Remote management through MiDM (MiTAC MDM)*

In stock

SKU
F840
$1,025.00

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / MioWORK 8" F840 Industrial Tablet

Experience the sleek, modern design of the F840 Series. Boasting an expansive 8-inch display with upgraded 1280x800 resolution and narrower bezels, users enjoy 18% more screen real estate to visualize key workflows. The high brightness display complemented by optical bonding and anti-glare coating, ensures unparalleled readability from any angle. Glove support and rain resistance completes the package for seamless transition between in-vehicle and outdoor use.

Elevate your fleet management with our All-in-one Video Telematics solution. Our innovative multi-channel video cradle connects up to 4 cameras simultaneously, providing complete 360° vehicle coverage without additional investment in multi-camera systems. Video recordings continue even when the tablet is out of the cradle. The Enterprise IoT-grade Qualcomm processor with on-device AI-intelligence enables cutting-edge applications, whilst a suite of API’s allow for seamless system and cloud integration.

Power management has been completely reimagined to maximize battery performance. A new Smart Power Mode allows the F840 Series to use vehicle power directly through the cradle, minimizing battery use and reducing aging. Intelligent battery monitoring provides on-device and remote cloud diagnostics. Coupled with a new serviceable battery design, fleet managers and support staff can perform swift preventative in-house maintenance, minimizing service disruption.



More Information

brand Mio
Specifications
Display 8\" 1280x800 IPS (600 nits, 85° view angle)
Touch Panel Capacitive multi-touch with optical bonding, glove support & water resistant, anti-glare coating
Platform Qualcomm® QCM4290, Octa core, up to 2.0GHz
OS Androidâ„¢ 13 (GMS), upgradeable to Androidâ„¢ 14
Memory 3GB RAM / 32GB internal storage (4GB RAM / 64GB internal storage*)
Expansion MicroSD slot (up to 128GB)
Wireless Interface
  • IEEE 802.11 a/b/g/n/ac (2.4GHz & 5GHz)
  • WEP, WPA/WPA2/WPA3
  • 802.11x EAP security standard, WIFI Direct®
  • Bluetooth® 5.1 BLE
  • GPS (including AGPS) + GLONASS, simultaneously tracking, dual frequency (L1 + L5)
  • LTE Cat.6
    EMEA & Australia: LTE FDD Band 1/2/3/4/5/7/8/20/28;
    WCDMA Band 1/2/4/5/8;
    GSM 850/900/1800/1900MHz
    North America: LTE FDD Band 2/4/5/7/12/13/14/17/25/26/66/71
NFC
  • NFC: MiFare®, FeliCa
  • HF RFID: ISO14443 A&B, ISO15693
Sensor
  • Accelerometer (G sensor) - auto rotation
  • Gyro
  • eCompass
  • ambient light sensor
  • vibration motor
Camera
  • Rear: 8 megapixels, auto focus with flash LED
  • Front: N/A*
Physical Interface
  • MicroSD slot (up to 512GB capacity)
  • Dual Nano SIM slots
  • USB Type-C 2.0 (supports OTG)
  • 24-pin pogo pin connector (charging & data transmission)
  • Built-in mic x2 (supports noise cancellation)
  • Built-in speaker x1
Buttons
  • Front: power, programmable button x2 (default: volume +/-)
  • Soft buttons: on screen Androidâ„¢ navigation keys
Battery
  • 4,000mAh Li-Po replaceable battery, with tamperproof security screws
  • Battery life up to 8 hours based on typical usage conditions***
Environment
  • IP54 and MIL-STD-810G 1.2m/4ft drop resistant (1.8m/6ft with protective caps)
  • Vibration & Shock resistance: SAE J1455 standard, up to 20G peaks
  • -20° to +60°C (-4° to +140°F) operating temperature****
  • -30° to +70°C (-22° to +158°F) storage temperature
  • Humidity: 0 Ëœ 95%, non-condensing
  • Altitude: operating: operating: 0 Ëœ 4,572m (15,000ft); non-operating: 0 Ëœ 12,192m (40,000ft)
Certification CE/CB, FCC/IC, RCM, BQB, E-mark, PTCRB, ETSI EN 303 645, ROHS, WEEE ( ** Region dependent)
Software MiTAC Mobile Device Management (MiDM), MiLock (Kiosk Launcher),
MiBatteryPro (Battery Health Monitoring) ready; SOTI MobiControl compatible
Warranty 12 months (extended warranty available)
Weight 490g (17.3oz)
Dimensions 132.4 x 225.5 x 20.5 mm (5.21 x 8.88 x 0.81\")
Remarks * Optional
** Region dependent
*** Actual battery life varies depending on factors including network activity,functions enabled, screen brightness, and other application-usage patterns
**** -20°C (-4°F) with AC input; -10°C (14°F) standalone
Description

Experience the sleek, modern design of the F840 Series. Boasting an expansive 8-inch display with upgraded 1280x800 resolution and narrower bezels, users enjoy 18% more screen real estate to visualize key workflows. The high brightness display complemented by optical bonding and anti-glare coating, ensures unparalleled readability from any angle. Glove support and rain resistance completes the package for seamless transition between in-vehicle and outdoor use.

Elevate your fleet management with our All-in-one Video Telematics solution. Our innovative multi-channel video cradle connects up to 4 cameras simultaneously, providing complete 360° vehicle coverage without additional investment in multi-camera systems. Video recordings continue even when the tablet is out of the cradle. The Enterprise IoT-grade Qualcomm processor with on-device AI-intelligence enables cutting-edge applications, whilst a suite of API’s allow for seamless system and cloud integration.

Power management has been completely reimagined to maximize battery performance. A new Smart Power Mode allows the F840 Series to use vehicle power directly through the cradle, minimizing battery use and reducing aging. Intelligent battery monitoring provides on-device and remote cloud diagnostics. Coupled with a new serviceable battery design, fleet managers and support staff can perform swift preventative in-house maintenance, minimizing service disruption.
