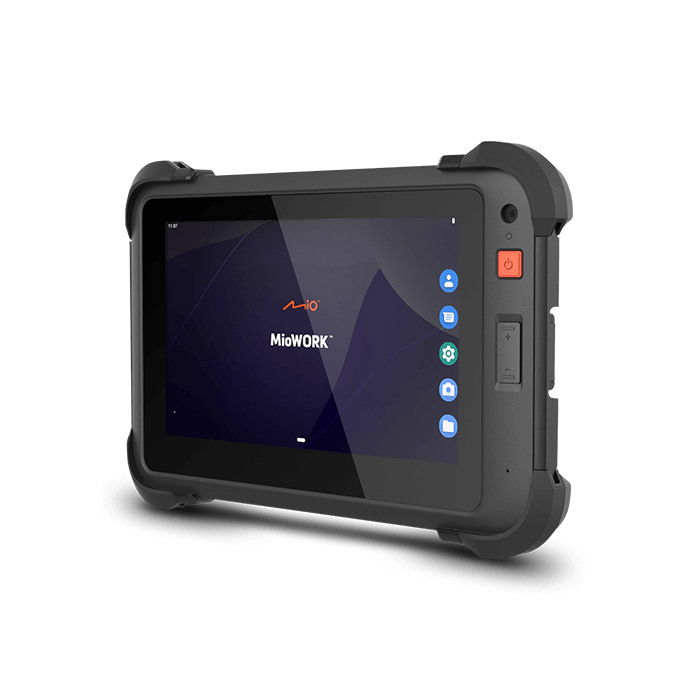

MioWORK F740s Android Rugged Tablet

Mio

MioWORK F740s series, handheld rugged tablet

Key Features:

  • 7-inch capacitive touch panel with anti-glare coating
  • IP54 water & dust proof, up to 1.8m drop & 20G shock resistant
  • 4 types of active in-vehicle cradles
  • 4G LTE, WIFI connected
  • Androidâ„¢ 9.0 (GMS)
  • Dual-satellite system – GPS & GLONASS
  • NFC, HF RFID data capture
  • Integrated camera
  • 10 hrs+ battery life

In stock

SKU
MioWORK-F740s

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / MioWORK F740s Android Rugged Tablet

The all-new MioWORK F740s is a lightweight, ruggedized Android-based tablet that allows for seamless operation anytime, anywhere, even in harsh environments. The F740s, which is powered by a Qualcomm Octa-core processor, offers plenty of computing power while keeping battery life in check. Remote access and asset management are made simple thanks to high-speed 4G LTE, dual-band WiFi (802.11 a/b/g/n/ac), and precision GPS technology. It's ready to go into workplaces that require mobility and dependability, such as fleet management, field service, and logistics.



Key Features:



  • 7-inch capacitive touch panel with anti-glare coating
  • IP54 water & dustproof, up to 1.8m drop & 20G shock resistant
  • 4 types of active in-vehicle cradles
  • 4G LTE, WIFI connected
  • Android 9.0 (GMS)
  • Dual-satellite system – GPS & GLONASS
  • NFC, HF RFID data capture
  • Integrated camera
  • 10 hrs+ battery life

More Information

brand Mio
Specifications
Display 7" 1024x600 IPS (600nits, 85° view angle)
Touch Panel Capacitive multi-touch with optical bonding, glove support & water resistant, anti-glare coating
Platform Qualcomm® Snapdragon™ SDM450 Octa core, 1.8GHz
OS Androidâ„¢ 9.0 (GMS)
Memory 2GB RAM / 32GB internal storage
Expansion MicroSD slot (up to 128GB)
Wireless Interface
  • IEEE 802.11 a/b/g/n/ac/d/h/i/k/r/v/w (2.4GHz & 5GHz), WEP, WPA/WPA2 PSK, 802.11x EAP security standard, WIFI Direct®
  • Bluetooth® 4.2 BLE
  • GPS (including AGPS) + GLONASS, simultaneously tracking
  • LTE Cat.6 (3G/2G fallback*)　
    EMEA & Australia: LTE FDD Band 1/2/3/4/5/7/8/20/28; WCDMA Band 1/2/4/5/8; GSM 850/900/1800/1900MHz
    North America: LTE FDD Band 2/4/5/7/12/13/14/17/25/26/66/71; WCDMA Band 2/4/5
    Japan: LTE FDD Band 1/3/5/8/11/18/19/21/26/28; WCDMA Band 1/6/8/19
NFC
  • NFC: MiFare®, FeliCa
  • RFID (HF): ISO14443A&B, ISO15693
Sensor
  • Accelerometer (G sensor) - auto rotation
  • Gyro
  • Ambient light sensor
  • eCompass
  • Vibration motor
Camera Rear: 8 megapixels, auto focus with flash LED;
Front: N/A**
Physical Interface
  • MicroSD slot (up to 128GB capacity)
  • MicroSIM slot (SIM 1) and eSIM** (SIM 2)
  • USB Type-C 2.0 (supports OTG)
  • 18-pin pogo pin connector (charging & data transmission)
  • Built-in mic x2 (supports noise cancellation)
  • Built-in speaker x1
Buttons
  • Front: power, programmable button x2 (default: volume +/-)
  • Soft buttons: on screen Androidâ„¢ navigation keys
Battery
  • 4,000mAh Li-ion Polymer
  • Battery life 10 hours + depending on usage (charging status on screen)
Environment
  • IP54 and MIL-STD-810G 1.2m/4ft drop resistant (1.8m/6ft with protective caps)
  • Vibration & Shock resistance: SAE J1455 standard, up to 20G peaks
  • -20° to +60°C (-4° to +140°F) operating temperature***
  • -30° to +70°C (-22° to +158°F) storage temperature
  • Humidity: 0 Ëœ 95%, non-condensing
  • Altitude: operating: 0 Ëœ 4,572m (15,000ft); non-operating: 0 Ëœ 12,192m (40,000ft)
Certification CE/CB, FCC/IC, RCM, BQB, E-mark, TELEC, PTCRB, Carrier (AT&T), ROHS, WEEE
Software MiTAC Mobile Device Management (MiDM) ready, SOTI MobiControl
Warranty 12 months (extended warranty available)
Weight 480g (16.9oz)
Dimensions 132 x 210.8 x 17/20.55mm (5.20 x 8.30 x 0.67/0.81")
Remarks * Region Dependent
** Optional
*** -15°C (5°F) operating stand-alone; -20°C (-4°F) operating with AC input


Description

The all-new MioWORK F740s is a lightweight, ruggedized Android-based tablet that allows for seamless operation anytime, anywhere, even in harsh environments. The F740s, which is powered by a Qualcomm Octa-core processor, offers plenty of computing power while keeping battery life in check. Remote access and asset management are made simple thanks to high-speed 4G LTE, dual-band WiFi (802.11 a/b/g/n/ac), and precision GPS technology. It's ready to go into workplaces that require mobility and dependability, such as fleet management, field service, and logistics.



Key Features:



  • 7-inch capacitive touch panel with anti-glare coating
  • IP54 water & dustproof, up to 1.8m drop & 20G shock resistant
  • 4 types of active in-vehicle cradles
  • 4G LTE, WIFI connected
  • Android 9.0 (GMS)
  • Dual-satellite system – GPS & GLONASS
  • NFC, HF RFID data capture
  • Integrated camera
  • 10 hrs+ battery life
