MPC102-845

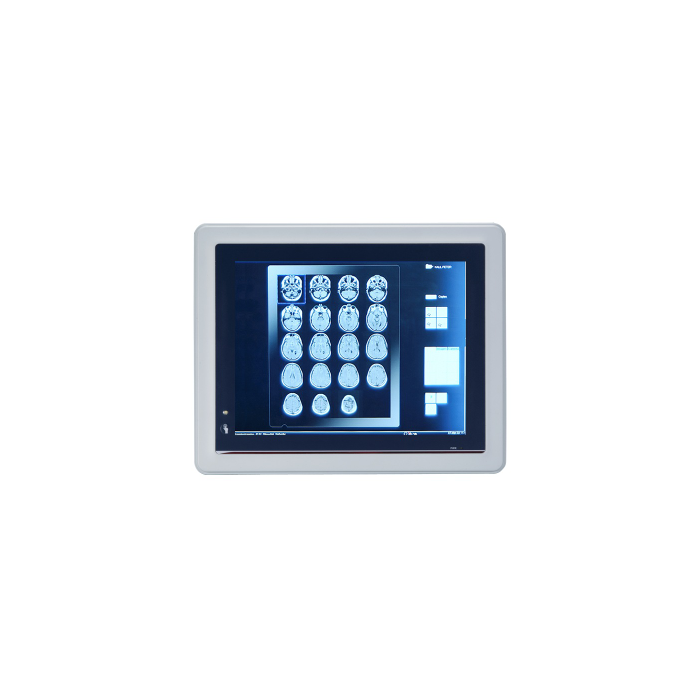

10.4" XGA TFT Fanless Medical Grade Touch Panel Computer with Intel® Celeron® Processor N3060

In stock

SKU
MPC102-845

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / MPC102-845

10.4" XGA TFT Fanless Medical Grade Touch Panel Computer with Intel® Celeron® Processor N3060



·         10.4" XGA TFT LCD display with LED backlight

·         Fanless design with Intel® Celeron® processor N3060

·         2 GbE LANs, 4 USB and 2 COM

·         Plastic and IP65-rated front bezel

·         Supports RFID (optional)

·         External AT/ATX mode selection switch

·         Easy access storage design

·         Supports panel mount, wall mount, VESA arm and desktop stand

·         4th EN 60601-1 (ESD contact 8KV, air 15KV), CE and FCC certified

More Information

Specifications
LCD Panel
  • 10.4" XGA TFT
  • 350 nits
  • 1024 x 768 pixels
CPU
  • Intel® Celeron® processor N3060 up to 2.48 GHz
Chipset
  • SoC integrated
System Memory
  • 1 x 204-pin SO-DIMM DDR3L-1600, up to 8GB
BIOS
  • AMI
COM
  • 1 x RS-232
  • 1 x RS-232/422/485 (default RS-232)
USB
  • 2 x USB 2.0
  • 2 x USB 3.0
Ethernet
  • 2 x 10/100/1000 Mbps (Intel® i211-AT)
Display
  • N/A
Audio
  • 1 x Audio (Line-out)
Camera
  • N/A
Optical Drive
  • N/A
Storage
  • 1 x 2.5" SATA HDD (9.5 mm height)
  • 1 x mSATA
Expansion
  • 1 x Full-size PCI Express Mini Card slot with mSATA
  • 1 x Full-size PCI Express Mini Card slot with SIM
Others
  • 1 x Switch for power on/off
  • 1 x AT/ATX mode selection switch
Touchscreen
  • Resistive type
Front Bezel
  • IP65, NEMA 4 rugged protection, plastic front bezel
Power Consumption
  • 32W
Power Supply
  • AC version: 100 to 240 V AC-DC, 65W power adapter
  • DC version: 9 to 36 VDC with over current protection fuse
Watchdog Timer
  • 255 levels, 0 to 255 sec.
Operating Temperature
  • 0°C to +40°C (+32°F to +122°F)
Relative Humidity
  • 20% to 90% @ +40°C; non-condensing
Vibration
  • 2G, 5 - 500Hz, random for SSD
Dimensions
(W x D x H)
  • 292.5 x 45.8 x 235.8 mm (11.52" x 1.80" x 9.28")
Weight (net/gross)
  • 1.8 kg (3.96 lb)/3 kg (6.61 lb)
Certifications
  • 4th EN 60601-1 (ESD contact 8KV, air 15KV), CE and FCC
EOS
  • Windows® 10, Windows® 8.1, WE8S, Windows® 7, WES7
Mounting
  • VESA arm
  • Panel mount
  • Desktop stand
  • Wall mount


Description

10.4" XGA TFT Fanless Medical Grade Touch Panel Computer with Intel® Celeron® Processor N3060



·         10.4" XGA TFT LCD display with LED backlight

·         Fanless design with Intel® Celeron® processor N3060

·         2 GbE LANs, 4 USB and 2 COM

·         Plastic and IP65-rated front bezel

·         Supports RFID (optional)

·         External AT/ATX mode selection switch

·         Easy access storage design

·         Supports panel mount, wall mount, VESA arm and desktop stand

·         4th EN 60601-1 (ESD contact 8KV, air 15KV), CE and FCC certified
