MSata SSD MSA452T-I

DRAM Cache embedded, Endurance: 3K P/E cycles (Program/Erase cycles) guaranteed, Wide-temperature model available (from -40℃ to 85℃), Built-in ECC (Error Correction Code) functionality

In stock

SKU
MSata SSD MSA452T-I

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / MSata SSD MSA452T-I

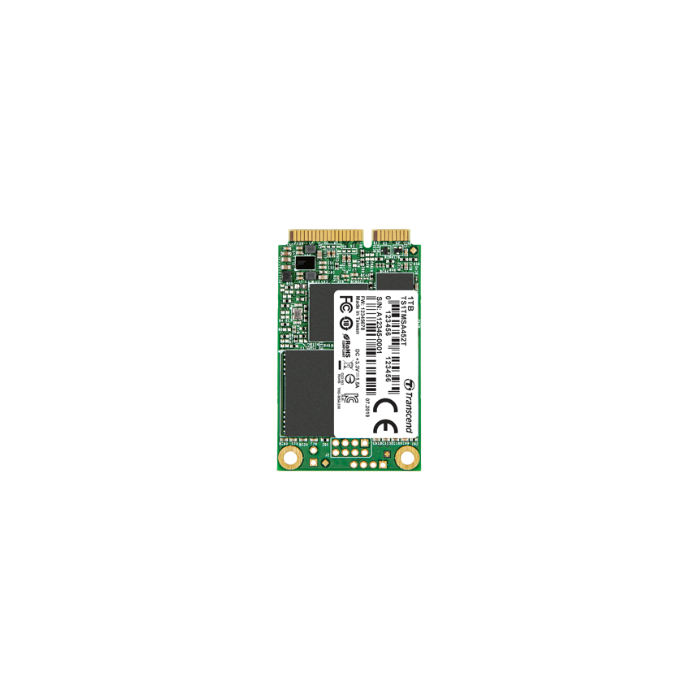

Transcend's SATA III 6Gb/s MSA452T mSATA SSD delivers blazing-fast performance, long-term reliability, and high cost-effectiveness. Featuring DRAM cache for fast access and state-of-the-art 96-layer 3D NAND flash, the MSA452T is fully tested to guarantee reliability in mission-critical applications, boasting an endurance rating of 3K Program/Erase cycles.

More Information

Specifications
Dimensions

50.8 mm x 29.85 mm x 4.85 mm (2" x 1.18" x 0.19")

Weight

8 g (0.28 oz)

mSATA Type

MO-300

Pin

52 pin

Form Factor

  • mSATA

Interface

Bus Interface

  • SATA III 6Gb/s

Storage

Flash Type

  • 3D TLC NAND flash

Capacity

  • 64 GB/
  • 128 GB/
  • 256 GB/
  • 512 GB/
  • 1 TB

Operating Environment

Operating Voltage

  • 3.3V±5%

Operating Temperature

  • Standard
0°C (32°F) ~ 70°C (158°F)


  • Wide Temp.
-40°C (-40°F) ~ 85°C (185°F)

Storage Temperature

-40°C (-40°F) ~ 85°C (185°F)

Humidity

5% ~ 95%

Shock

  • 1500 G, 0.5 ms, 3 axis

Vibration (Non-operating)

2.17 G (peak-to-peak), 10 Hz ~ 700 Hz (frequency)

Power

Power Consumption (Operation)

2.4 watt(s)

Power Consumption (Sleep)

0.4 watt(s)

Performance

Sequential Read/Write (CrystalDiskMark, max.)

Read: 560 MB/s Write: 520 MB/s

4K Random Read/Write (IOmeter, max.)

Read: 95,000 IOPS Write: 85,000 IOPS

Mean Time Between Failures (MTBF)

3,000,000 hour(s)

Terabytes Written (Max.)

1,760 TB

Drive Writes Per Day (DWPD)

1.61 (3 yrs)

Note

  • Speed may vary due to host hardware, software, usage, and storage capacity.
  • The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.


Description

Transcend's SATA III 6Gb/s MSA452T mSATA SSD delivers blazing-fast performance, long-term reliability, and high cost-effectiveness. Featuring DRAM cache for fast access and state-of-the-art 96-layer 3D NAND flash, the MSA452T is fully tested to guarantee reliability in mission-critical applications, boasting an endurance rating of 3K Program/Erase cycles.
