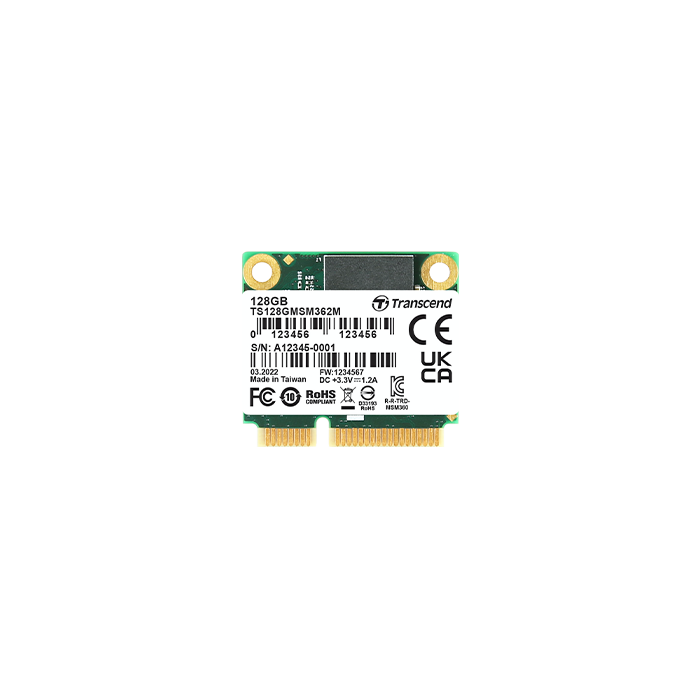

MSM362M & MSM362I mSATA mini SSD

Transcend

16/32/64/128GB mSATA mini SSD

Key Features:

  • Compliant with RoHS 2.0 standards
  • Compliant with JEDEC MO-300B
  • MLC NAND flash
  • Supports Transcend Scope Pro software
  • Promised operational reliability in a wide temperature range (from -40° to 85°C)
  • Built-in BCH ECC (Error Correction Code) functionality
  • Advanced Global Wear-Leveling and Block management for reliability
  • Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
  • TRIM command for better performance

In stock

SKU
TSxxxxMSM362x

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / MSM362M & MSM362I mSATA mini SSD

Fully compliant with mSATA specifications, Transcend’s mSATA MSM362M mini SSD combines ultra-compact dimensions with a high-bandwidth SATA III 6Gb/s interface, ideal for use in small form factor devices such as ultrabooks, industrial PCs, tablets, vehicle PCs, road surveillance recording devices, and other embedded storage applications.

Additionally, Transcend provides the MSM362I with broad temperature capabilities (-40°C to 85°C) to guarantee continued functionality, increased endurance, and ideal reliability in mission-critical applications.

Key Features:

  • Compliant with RoHS 2.0 standards
  • Compliant with JEDEC MO-300B
  • MLC NAND flash
  • Supports Transcend Scope Pro software
  • Promised operational reliability in a wide temperature range (from -40° to 85°C)
  • Built-in BCH ECC (Error Correction Code) functionality
  • Advanced Global Wear-Leveling and Block management for reliability
  • Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
  • TRIM command for better performance

More Information

brand Transcend
Specifications

Appearance
Dimensions 26.8 mm x 29.85 mm x 3.85 mm (1.06" x 1.18" x 0.15")
Weight 5 g (0.18 oz)
Pin Count 52 pin
Form Factor
  • mSATA mini (MO-300B)

Interface
Bus Interface
  • SATA III 6Gb/s

Storage
Capacity
  • 16 GB/
  • 32 GB/
  • 64 GB/
  • 128 GB
Flash Type
  • MLC NAND flash

Operating Environment
Operating Voltage
  • 3.3V±5%
Operating Temperature
  • Standard Temp.
    0°C (32°F) ~ 70°C (158°F)
    •
  • Wide Temp.
    -40°C (-40°F) ~ 85°C (185°F)
Storage Temperature -55°C (-67°F) ~ 85°C (185°F)
Humidity 5% ~ 95%
Shock
  • 1500 G, 0.5 ms, 3 axis
Vibration (Operating) 20 G (peak-to-peak), 7 Hz ~ 2,000 Hz (frequency)

Power
Power Consumption (Operation) 2.01 watt(s)
Power Consumption (Sleep) 0.27 watt(s)

Performance
Sequential Read/Write (CrystalDiskMark) Read: up to 520 MB/s
Write: up to 220 MB/s
4K Random Read/Write (IOmeter) Read: up to 35,000 IOPS
Write: up to 50,000 IOPS
Mean Time Between Failures (MTBF) 2,500,000 hour(s)
Terabytes Written (TBW) up to 168 TBW
Drive Writes Per Day (DWPD) 1.19 (3 yrs)
Note
  • Speed may vary due to host hardware, software, usage, and storage capacity.
  • The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.
  • Terabytes Written (TBW) expresses the endurance under the highest capacity.
Description

Fully compliant with mSATA specifications, Transcend’s mSATA MSM362M mini SSD combines ultra-compact dimensions with a high-bandwidth SATA III 6Gb/s interface, ideal for use in small form factor devices such as ultrabooks, industrial PCs, tablets, vehicle PCs, road surveillance recording devices, and other embedded storage applications.

Additionally, Transcend provides the MSM362I with broad temperature capabilities (-40°C to 85°C) to guarantee continued functionality, increased endurance, and ideal reliability in mission-critical applications.

Key Features:

  • Compliant with RoHS 2.0 standards
  • Compliant with JEDEC MO-300B
  • MLC NAND flash
  • Supports Transcend Scope Pro software
  • Promised operational reliability in a wide temperature range (from -40° to 85°C)
  • Built-in BCH ECC (Error Correction Code) functionality
  • Advanced Global Wear-Leveling and Block management for reliability
  • Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
  • TRIM command for better performance
