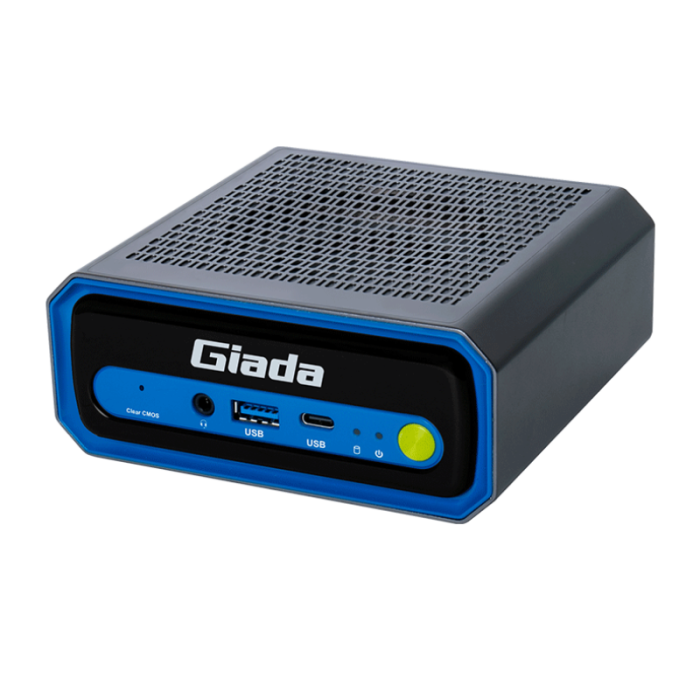

N601 Intel Core Ultra Embedded AI Computer

Giada Technology Inc.

Intel Meteor Lake Core Ultra AI Embedded Computer

Key Features:

  • Intel Meteor Lake Core Ultra processors
  • Intel® AI Boost NPU, Max frequency 1.4 GHz
  • 1 x HDMI (4096 x 2304 @60 Hz)
  • 1 x DP (7680 x 4320 @60 Hz)
  • Thunderbolt 4
  • Support Wi-Fi 7

In stock

SKU
N601-1x5H50N0G-GIA

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / N601 Intel Core Ultra Embedded AI Computer

Designed for AI tasks such as image/video editing, creative projects, and team collaboration, the Giada AI PC N601 is powered by Intel's AI-capable Meteor Lake Ultra 5 / Ultra 7 processors. With up to 34 TOPS computing capability, the N601 can efficiently handle various AI tasks locally, enhancing workplace efficiency and privacy.

Giada N601's ability to capture and process visual data, combined with the quality of its display outputs, is industry-leading. An HDMI 2.0 port and a DP 1.4 are both capable of achieving 8K resolution at 60Hz, leverage Intel®: Arc graphics to deliver crystal clear imaging for gaming, AI-assisted healthcare imaging and smart retail signage. The overall performance of Intel®: Arc graphics is doubled compared to the previous generation Iris Xe integrated graphics.

The N601 features an ultra-compact design for easy deployment while providing users with powerful expandability. It offers 1 M.2 slot supporting PCIe 5.0 NVMe SSDs, with read/write speeds of up to 10 GB/s (80Gbps). Additionally, it provides an M.2 slot supporting PCIe 4.0 NVMe SSDs, with read/write speeds of 5 GB/s (40Gbps), and a 2.5-inch SATA hard drive bay.

The Giada N601 enables ultra-fast file sharing with Thunderbolt 4, capable of reaching speeds of up to 40 Gbps and making transferring videos (up to 8K@60Hz resolution, or extension 2X 4K@60fps video playback) and gigantic files a breeze.

Giada N601 incorporates an M.2 (2230) for flexible Wi-Fi/BT functionality, supporting Wi-Fi 7. Wi-Fi 7 elevates wireless experiences and feature extreme data speeds and consistent low latency. Wi-Fi 7 can deliver peak rates of over 40 Gbps, a 4X increase over Wi-Fi 6E. With Giada N601, say goodbye to crowded networks and hello to a smoother, more reliable connection.



More Information

brand Giada Technology Inc.
Specifications

CPU

CPU
Intel® Core™ Ultra 5 processor 125H
Intel® Core™ Ultra 7 processor 155H
Max Turbo Frequency
4.50 GHz /4.80 GHz

Chipset

SoC

Processing Units
14 Cores /16 Cores

Base Power

28 W /28 W

NPU

Intel AI Boost, 1.4 GHz
Frameworks Supported
OpenVINO™, WindowsML, DirectML, ONNX RT, WebGPU

Memory

Size

Up to 86 GB

Type

2 x SO-DIMM DDR5-5600 MHz

Storage

Socket 1

1 x M-Key M.2 (2280) PCIe5.0 X4 for SSD

Socket 2

1 x M-Key M.2 (2280) PCIe4.0 X4 for SSD

Socket 3

1 x 2.5” SATAIII

Display

GPU

Intel® Arc™ graphics

Graphic Engine
DirectX 12.2, OpenGL 4.6, OpenCL 3.0,
H.264 /H.265 /AV1 Hardware Encode /Decode, VP9 Bitstream & Decoding

Display Interface

1 x HDMI (Max.4096 x 2304 @60Hz)

1 x DP1.4 (Max.7680 x 4320 @60Hz)
Multi-display
Quad 4K@60Hz (2 via Thunderbolt 4 + 2 via HDMI/DP)
Dual 8K@60Hz (1 via Thunderbolt 4 + 1 via DP1.4)

Network

Network Controller

1 x Intel i226-V Gigabit Ethernet

Ethernet Interface

1 x 2.5GbE RJ45

Wi-Fi/BT

1 x E-Key M.2(2230) for Wi-Fi/BT, Support Wi-Fi 6, Wi-Fi 6E (CNVi), Wi-Fi 7

Mobile Network

NA

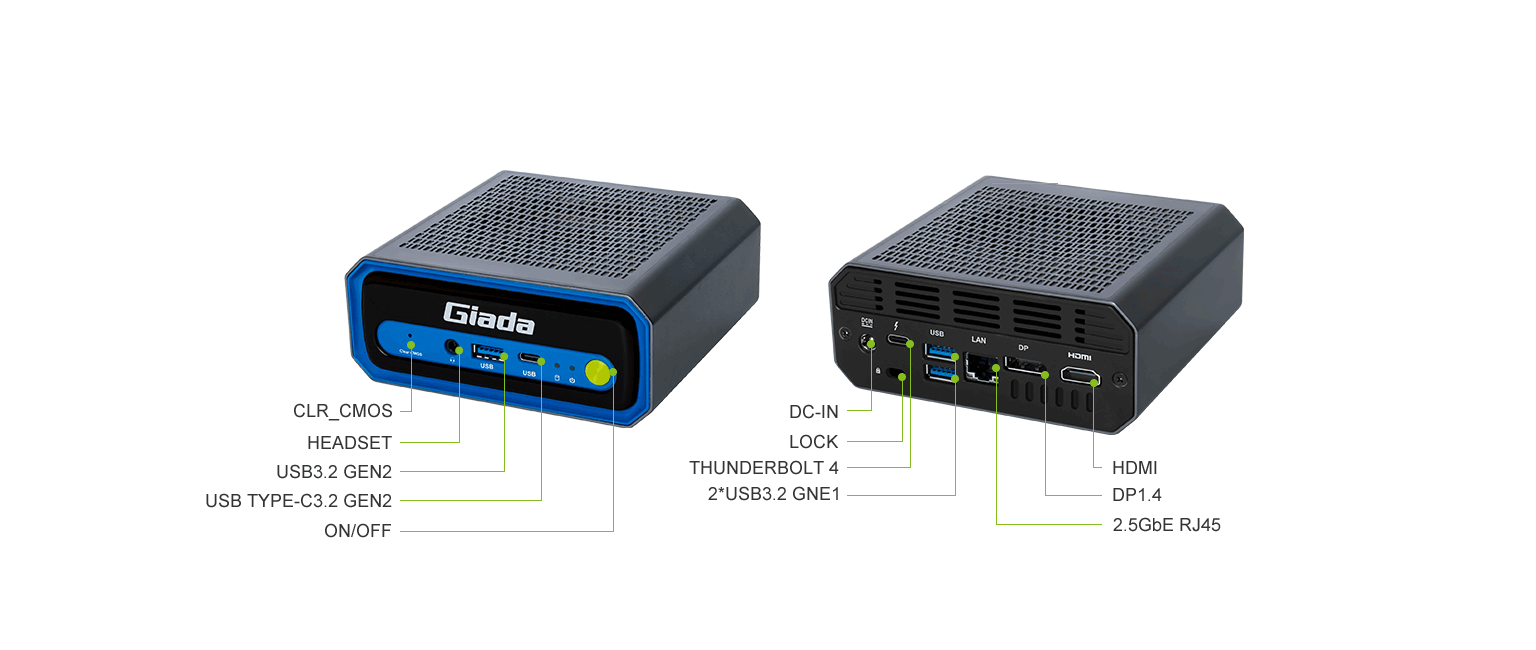

I/O interface

USB

1 x USB Type-C3.2 Gen2, 1 x USB3.2 Gen 2,

2 x USB 3.2 Gen 1, 1 x Thunderbolt 4

Serial Port

NA

Audio

1 x 2-in-1 Headset (MIC-IN & AUDIO-OUT)

Button

1 x Power on, 1 x CLR-CMOS

Antenna

2 x Internal Wi-Fi Antenna

System

TPM

Optional: TPM2.0

Watchdog Timer

Yes

Auto Power On

Yes

RTC

Set up independently every day, a week as a cycle

Power Requirement

DC-IN, 19 V/6.32 A

Dimensions

126 mm x 117 mm x 50 mm (4.96” x 4.60” x 1.97”)

Construction

Metal, Grey. I/O Panel, Plastic

Operating System

Windows 11 (64bit) /Linux Ubuntu (64bit)

Operating Temperature

0°C ~45°C (32°F~113°F) @0.7m/s Air Flow

Humidity

95% @ 40°C (non-condensing)

Certifications

CE, FCC Class B, UKCA
Description

Designed for AI tasks such as image/video editing, creative projects, and team collaboration, the Giada AI PC N601 is powered by Intel's AI-capable Meteor Lake Ultra 5 / Ultra 7 processors. With up to 34 TOPS computing capability, the N601 can efficiently handle various AI tasks locally, enhancing workplace efficiency and privacy.

Giada N601's ability to capture and process visual data, combined with the quality of its display outputs, is industry-leading. An HDMI 2.0 port and a DP 1.4 are both capable of achieving 8K resolution at 60Hz, leverage Intel®: Arc graphics to deliver crystal clear imaging for gaming, AI-assisted healthcare imaging and smart retail signage. The overall performance of Intel®: Arc graphics is doubled compared to the previous generation Iris Xe integrated graphics.

The N601 features an ultra-compact design for easy deployment while providing users with powerful expandability. It offers 1 M.2 slot supporting PCIe 5.0 NVMe SSDs, with read/write speeds of up to 10 GB/s (80Gbps). Additionally, it provides an M.2 slot supporting PCIe 4.0 NVMe SSDs, with read/write speeds of 5 GB/s (40Gbps), and a 2.5-inch SATA hard drive bay.

The Giada N601 enables ultra-fast file sharing with Thunderbolt 4, capable of reaching speeds of up to 40 Gbps and making transferring videos (up to 8K@60Hz resolution, or extension 2X 4K@60fps video playback) and gigantic files a breeze.

Giada N601 incorporates an M.2 (2230) for flexible Wi-Fi/BT functionality, supporting Wi-Fi 7. Wi-Fi 7 elevates wireless experiences and feature extreme data speeds and consistent low latency. Wi-Fi 7 can deliver peak rates of over 40 Gbps, a 4X increase over Wi-Fi 6E. With Giada N601, say goodbye to crowded networks and hello to a smoother, more reliable connection.
