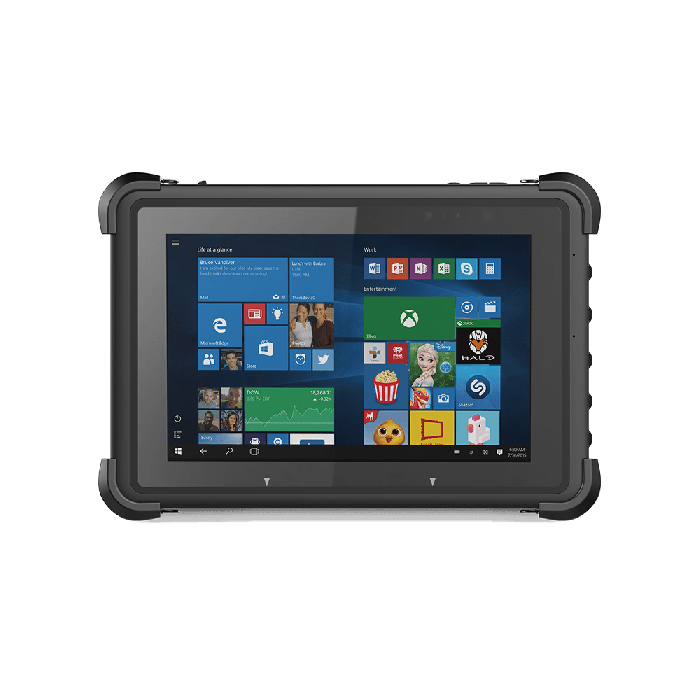

ND51 10.1" Rugged Tablet with Intel Atom CPU

MSi (Micro-Star INT'L CO., LTD)

Adjustable, Rugged, High Efficiency Tablet.

Key Features:

  • MlL-STD 81OG tested, 5 ft. / 1.5m drop proof
  • IP65, one-meter tumble test
  • Hot swap battery, integrated 10800mAh/ 3.7V battery pack
  • Windows® 10 loT Enterprise
  • Firmware TPM 2.0
  • 10/100 Ethernet port
  • Optional fingerprint authentication support for biometric security system
  • Optional vehicle dock, office dock, and battery charger
  • Optional briefcase handle, stylus, hand strap
  • Optional 4G LTE multi-carrier mobile broadband
  • Optional RFID/NFC/2D Honeywell barcode readers for data acquisition
  • Optional Intel® RealSense 3D camera to create smart service of Industrial 4.0

In stock

SKU
ND51

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / ND51 10.1" Rugged Tablet with Intel Atom CPU

ND51 is a robust tool designed to thrive in challenging working environments. It is the ideal rugged tablet for a variety of applications, equipped with MIL-STD-810G and IP65 ratings, a hot-swappable battery, and optional accessories including a vehicle dock, office dock, and battery charger. Whether it's in warehouse management, automotive operations, field service tasks, or law enforcement activities, the ND51 is built to excel.

More Information

brand MSi (Micro-Star INT'L CO., LTD)
Specifications
  • Software
  •  Windows®10 loT Enterprise
  • Durability
  •  MIL-STD-810G (Multiple 5'/1.5m Drops) 26 times all corners and sides with single tablet while operating
     IP65
     500 times x 1 m tumble test
     Steel ball drop test, 25 mm diameter rounded end steel weight of 250 gm from 50cm. w/ screen protector
     Glass screen protector
     Operating Temperature: -10°C ~ 50°C
  • CPU
  •  Intel® Atom TM X5-Z8550 Processor
  • Storage & Memory
  •  LPDDR3 4GB on board, MAX support 8G
     64GB or 128GB eMMC
  • Display
  •  10.1" WUXGA 1200x1920 IPS 550 nits
  • Audio
  •  1 Digital microphone
     2 integrated speaker
  • Input
  •  10-point multi-touch and capacitive stylus, support glove mode and wet-touch mode
     4 Physical buttons (power, vol+, vol-, barcode scanner key)
  • Cameras
  •  2MP front camera
     8MP rear camera, Auto Focus, Flash
    Optional RealSense 3D Camera
  • Wireless
  •  GPS (onboard)
     Optional Sierra EM7455 (North America/EMEA]
     Wi-Fi 802.11 a/b/g/n/AC
     Bluetooth® 4.1
  • Interface
  •  Docking connector
     Full size USB 3.0 x1
     Full size USB 2.0 x1
     RJ45 10/100 Ethernet Port
     Replaceable DC jack
     HDMI™ Micro Connector
     3.5mm Audio jack
     SIM Card Reader
     Micro SDXC Card Reader
     Reset hole
  • Power Supply
  •  Backup Battery / Hot swappable external battery
     Battery: 3.7V, 10800 mAh / 40Wh
     Battery operation: up to 8.5 hours
  • Security
  •  Optional Integrated Fingerprint reader
     Trusted Platform Module [ TPM 2.0 ]
     Optional NFC/ RFID
  • Dimensions & Weight
  •  13.72" x 7.56" x 0.86" [283.4mm x 192.0mm x 21.9mm]
      2.82lbs [1280g]
  • Collaboration
  •  Optional 1D/2D Barcode Reader
     9 Axis MEMS sensor (Accelerometer, eCompass, Gyroscope)
     Ambient Light Sensor
     Proximity Sensor
  • Accessories
  •  AC Adapter 65W (19V / 3.42A)
     Hand strap with stylus holder
     Optional Capacitive stylus pen
     Optional Vehicle Dock
     Optional Office Dock
     Optional Battery Chargers
Description

ND51 is a robust tool designed to thrive in challenging working environments. It is the ideal rugged tablet for a variety of applications, equipped with MIL-STD-810G and IP65 ratings, a hot-swappable battery, and optional accessories including a vehicle dock, office dock, and battery charger. Whether it's in warehouse management, automotive operations, field service tasks, or law enforcement activities, the ND51 is built to excel.
