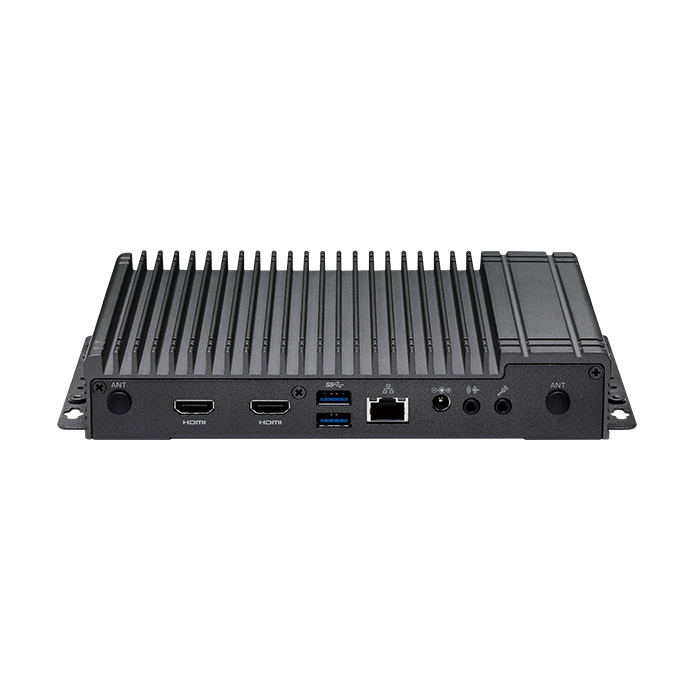

NDiS-B328, i5-7300U, 2 x HDMI 4k media player

Nexcom

Fanless Embedded Computer Powered by Intel® Core™ i5-7300U, SoC Processor

In stock

SKU
NDiS-B328-KI5

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / NDiS-B328, i5-7300U, 2 x HDMI 4k media player

Fanless Embedded Computer Powered by Intel® Core™ i5-7300U, SoC Processor



·         Intel® Core™ i5-7300U

·         HDMI 4K resolution

·         USB 3.0 support

·         WLAN support

·         Compact and fanless design

More Information

brand Nexcom
Specifications
CPU Support Intel® Core™ i5-7300U SoC processor Dual Core 2.6GHz
Graphic Intel® integrated HD 620 graphics
Main Memory 2 x 204-pin SO-DIMM sockets, supports DDR4 2133MHz non- ECC,un-buffered memory up to 32G (single socket max. 16GB)
I/O Interface-Front 4 x USB 3.01 x DB9 for RS232 (cable)1 x Storage active LED1 x Power switch with LED
I/O Interface-Rear 1 x DC-in jack, 2.5mm (19V DC)2 x HDMI 1.4 (4K resolution)2 x Antenna hole2 x USB 3.01 x RJ45 with LEDs for Gigabit LAN1 x Line-out1 x Mic-in
Storage Device 1 x 2.5” SATA3 HDD/SSD1 x M.2 2280 SSD, PCIe by 4+ SATA signal
Expansion 1 x M.2 E key 2230 slot, support Wi-Fi
Dimensions 224.34mm (W) x 147.4mm (D) x 35mm (H)
Power Supply DC power input +19V
Environment Operating temperature: @ 100% CPU loading and component thermal profile from 0°C ~50°C (with HDD), -20°C~50°C (with SSD)Storage temperature: -20°C~70°CHumidity: 95% (non-condensing)
Certification CE approvalFCC Class A
Operating System Win10 64-bit


Description

Fanless Embedded Computer Powered by Intel® Core™ i5-7300U, SoC Processor



·         Intel® Core™ i5-7300U

·         HDMI 4K resolution

·         USB 3.0 support

·         WLAN support

·         Compact and fanless design
pdf
Data Sheet
