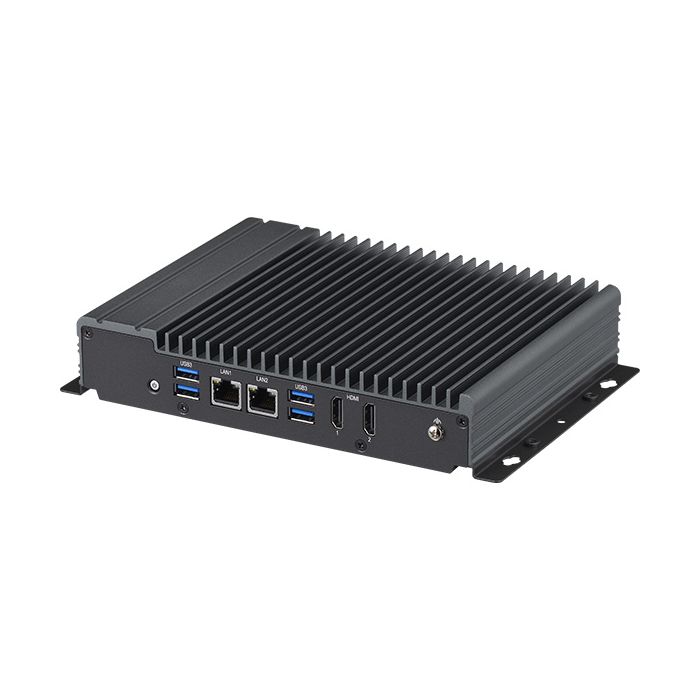

NDiS-B339 Slim Fanless Embedded Computer

Nexcom

Slim Visual Edge Computer with Intel Atom x7000RE Processor

Key Features:

  • Intel Atom® x7000RE Processor Series
  • Dual HDMI 2.0 support 4K@60Hz
  • TPM2.0 on board design for security
  • Dual LAN ports and 4 x USB 3.2 ports for easy connection
  • Slim compact chassis and fanless design
  • 1x M.2 2242 Key M with PCIe / SATA storage device
  • 1x DDR4 SO-DIMM, max up to 16GB
  • 1x miniPCIe slot for optional Wi-Fi or LTE module
  • Support 24VDC power input

In stock

SKU
NDIS-B339

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / NDiS-B339 Slim Fanless Embedded Computer

The NDiS-B339 visual edge computer is designed with multi-core Intel Atom® x7000RE Series SoC processors. A fanless industrial computer, the NDiS B339 is designed for edge computing applications in the Smart Retail sector and is superior in data collection within diverse environments. Equipped with a robust I/O interface, the NDiS B339 features 2 x RS232 ports, 2 x high-speed 2.5G LAN ports, 4 x USB ports, and 2 x HDMI 2.0 ports, providing seamless connectivity and versatility. Built to thrive in demanding conditions, the NDiS B339 supports a wide temperature range -20°C to 60°C, making it suitable for semi-outdoor installations, such as QSR drive-thru kiosks, intelligent vending machines, information stands, bus stops, or digital transit information signs. Its fanless design ensures silent and reliable operation, while the inclusion of 2 HDMI 2.0 ports enhances display capabilities for multimedia applications.



More Information

brand Nexcom
Specifications

System

  • On-board Intel Atom® processor x7211RE, Dual Core, frequency up to 3.2 GHz, 6M Cache (formerly Amston Lake)
    - Intel® UHD Graphics

  • On-board Intel Atom® processor x7213RE, Dual Core, frequency up to 3.4 GHz , 6M Cache (formerly Amston Lake)
    - Intel® UHD Graphics

  • On-board Intel Atom® processor x7433RE, Quad Core, frequency up to 3.4 GHz , 6M Cache (formerly Amston Lake)
    - Intel® UHD Graphics

Main Memory

  • 1 x 260-pin DDR4 3200 SO-DIMM, supports non-ECC, un-buffered

  • Memory up to 16G

I/O Interface-Front

  • 1 x Power button with LED

  • 4 x USB 3.2 port

  • 2 x RJ45 for Intel I226V 2.5GbE LAN

  • 2 x HDMI 2.0 (4K@60Hz)

I/O Interface-Rear

  • 1 x 3-pin phoenix contact 24V DC input

  • 2 x COM port
    - COM1: RS232/422/485
    - COM2: RS232

  • 3 x Antenna hole

I/O Interface-Internal

  • 2 x 6-pin header for 3 x USB 2.0 port

  • 1 x 10-pin header for GPIO, 4 x GPI, 4 x GPO

  • 1 x 4-pin pin header supporting speaker out Amplifier 2W/4Ω

  • 1 x 9-pin pin header supporting Mic-in and Line-out

  • 1 x 2-pin reset pin header

  • 1 x 7 pin SATA & 2 pin SATA power connector

Storage

  • 1 x M.2 2242 Key M (PCIe /SATA)

Expansion

  • 1 x miniPCIe slot, support optional Wi-Fi or LTE modules

Power Requirement

  • Power input: 24V DC

  • DC input type: 3-pin terminal block

  • AC/DC power adapter: not include in accessory

Environment

  • Operating temperature: -20°C to 60°C ambient with 0.7 m/s air flow

  • Storage temperature: -20°C to 80°C

  • Humidity: 10 to 90% (non-condensing)

  • Shock protection: 50G peak acceleration, 11ms according to IEC60068-2-27

  • Vibration protection
    - Random: 2Grms @ 5~500 Hz, IEC60068-2-64
    - Sinusoidal: 2G @ 5~500 Hz, IEC60068-2-6

Dimensions

  • 224mm (W) x 150mm (D) x 39.8mm (H) (with mount bracket)

Operating System

  • Win10

  • Win 11

  • Linux 4.1

Certifications

  • CE Approval (EN50035 + EN50032)

  • FCC Class A (Part 15B)

  • LVD (EN62368-1)

Package Information

  • Q’ty per carton: 5 units/carton

  • Net weight / per carton: 1.8 kgs / per carton (1.4 kgs / per unit)

  • Gross weight / per carton: 10 kgs

  • Carton dimension: 491(W) x 357(D) x 302(H) mm
Description

The NDiS-B339 visual edge computer is designed with multi-core Intel Atom® x7000RE Series SoC processors. A fanless industrial computer, the NDiS B339 is designed for edge computing applications in the Smart Retail sector and is superior in data collection within diverse environments. Equipped with a robust I/O interface, the NDiS B339 features 2 x RS232 ports, 2 x high-speed 2.5G LAN ports, 4 x USB ports, and 2 x HDMI 2.0 ports, providing seamless connectivity and versatility. Built to thrive in demanding conditions, the NDiS B339 supports a wide temperature range -20°C to 60°C, making it suitable for semi-outdoor installations, such as QSR drive-thru kiosks, intelligent vending machines, information stands, bus stops, or digital transit information signs. Its fanless design ensures silent and reliable operation, while the inclusion of 2 HDMI 2.0 ports enhances display capabilities for multimedia applications.
