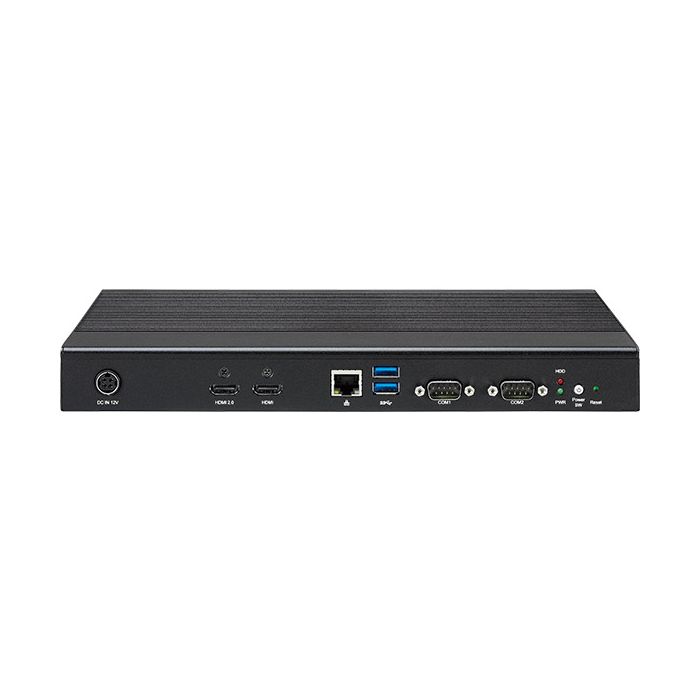

Fanless Embedded Computer Powered by 7th Generation Intel Core Processor
In stock
SKU
NDIS-B537
$1,000.00
Have a Question about this product?
Description /
NDiS-B537 Fanless Embedded Computer 7th Gen
Fanless Embedded Computer Powered by 7th Generation Intel Core Processor
·7th Generation Intel Core Processor
·Support HDMI 2.0 Output (4K2K/60Hz support)
·Compact and Slim Design (H: 33mm)
·Support Socket type CPU up to 35W
·NGFF/ mini-PCie Slot Support Wi-Fi and 4G Module
·Fanless Design
More Information
brand
Nexcom
Specifications
CPU Support
7th Gen Intel® Core™ socket type Processor up to 35W
Chipset
Intel® PCH H110 (B537)Intel® PCH Q170 (B537-I)
Graphics
Intel® HD Graphics 600 series
Main Memory
2 x 260-pin SO-DIMM Sockets, Supports DDR4 1866/2133 MHz Non-ECC, Un-buffered Memory up to 32G (Single Socket Max. 16GB)
I/O Interface-Front
1 x Power Button with LED1 x Power LED/ HDD LED2 x USB3.01 x HDMI 2.0, 1 x HDMI 1.41 x Display Port (B537-I only)1 x RJ45 with LEDs for Gigabit LAN (2 x RJ45 for B537-I only)2 x COM Port1 x 4pin Mini-Din with Lock
Storage
1 x SATA 2.5” HDD/ SSD
I/O Interface-Rear
2 x USB 3.03 x Antenna Hole1 x MIC-in1 x Line-out
Expansion
1 x mini-PCIe Slot (Full Size)1 x NGFF (M.2) 2230 for Optional WLAN1 x SIM Slot
API
NEXCOM Xcare
Power Supply
1 x External 96W AC/ DC Power AdapterInput: 100VAC to 240VACOutput: DC+12VDC
Environment
Operating Temperature: -10°C to 45°CStorage Temperature: -20°C to 80°CHumidity: 10 to 90% (Non-condensing)
Certification
CE ApprovalFCC Class B
Dimensions
295mm (W) x 189.9mm (D) x 33mm (H)
Operating System Support
Win10/ Linux
Description
Fanless Embedded Computer Powered by 7th Generation Intel Core Processor
