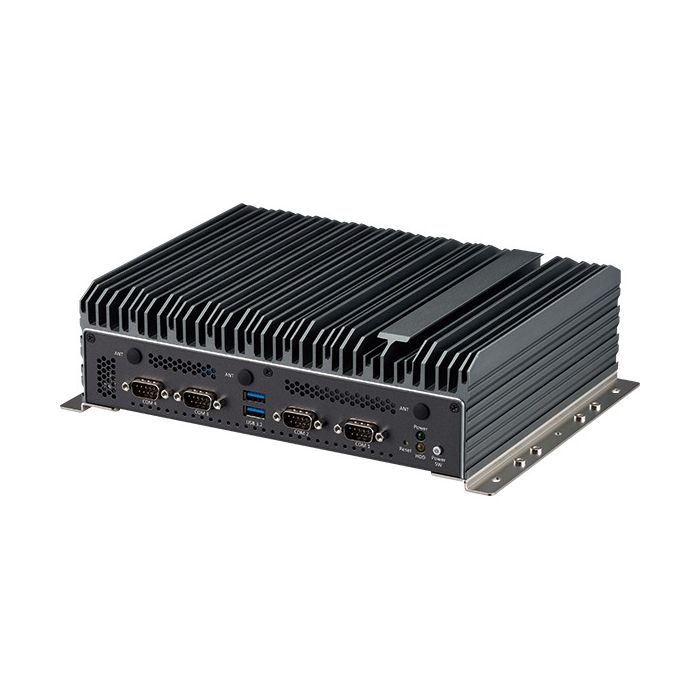

NDIS-B561 Industrial Edge Computer

Nexcom

Visual Edge PC 12/13th Gen Core Processor -20~60°C 1 x HDMI 2.1 2 x HDMI 2.0 8 x USB 3.2 4 x COM

Key Features:

  • Support 12/13th Gen Intel Core i9/i7/i5/i3 LGA socket type embedded processor, up to 35W
  • Intel Q670E, Intel integrated UHD graphic engine driven by Xe architecture
  • Supports 3 independent 4K2K@60Hz display outputs. HDMI 2.1 resolution can be up to 8K@60Hz
  • 1 x HDMI 2.1, 2 x HDMI 2.0, 8 x USB 3.2, 4 x COM, 1 x GbE LAN, 2 x 2.5G GbE LAN
  • Support M.2 Key B/E/M
  • Support extended temperature -20~60°C
  • Fanless design

In stock

SKU
NDIS-B561-TEK
The price depends on the chosen options

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Customize NDIS-B561 Industrial Edge Computer

Base
1 x NDiS-B561 Industrial Edge Computer (Barebone)   + $950.00

Your Customization

NDIS-B561 Industrial Edge Computer

Summary

Final product price

Description / NDIS-B561 Industrial Edge Computer

The NDiS B561 fanless visual edge computer can handle demanding multimedia content, powered by the 12th/13th Gen Intel Core processor series and Intel 600 series chipset integrated graphics controller. It has a wide operating temperature range of between -20 and 60 °C.

Additionally, there are three independent 4K2K display outputs or up to 8K@60Hz in one display output, as well as rich connectivity options like 8 USB 3.2, 3 LAN ports (including 2 PoE ports), Wi-Fi 6E, and 4G and 5G support. The NDiS B561 is suitable for both indoor and outdoor applications, including smart stadiums, public transportation, security surveillance, outdoor bus stations, and visual edge computing.



More Information

brand Nexcom
Specifications
CPU Support

12 Gen Intel Core i9/i7/i5/i3 LGA socket type processor, up to 35W

  • Core i9-12900TE, 16 Core, 1.1GHz, 30M Cache
  • Core i7-12700TE, 12 Core, 1.4GHz, 25M Cache
  • Core i5-12500TE, 6 Core, 1.9GHz, 18M Cache
  • Core i3-12100TE, 4 Core, 2.1GHz, 12M Cache
Chipset Intel PCH Q670E
Graphics 2 x 262-pin SO-DIMM sockets, support DDR5 4800 MHz non-ECC, unbuffered memory up to 64G (single socket max 32GB)
I/O Interface-Front
  • 1 x Power button
  • 1 x Power LED, 1 x HDD LED
  • 1 x Reset switch
  • 2 x USB 3.2
  • 4 x DB9 for COM1~ COM4
    - COM1: RS-232/422/485
    - COM2~4: RS232
  • 3 x Antenna hole
I/O Interface-Rear
  • +12~24V DC-in
  • 1 x HDMI 2.1, 2 x HDMI 2.0
  • 6 x USB 3.2
  • 1 x RJ45 with LED for 10/100/1000Mbps
  • 2 x RJ45 with LED for 10/100/1000/2500Mbps
  • 1 x Mic-in, 1 x Line-out (optional)
  • 1 x SIM card
  • 3 x Antenna hole
I/O Interface-Internal
  • 8CH GPIO support 4 x GPO and 4 x GPI
  • Onboard TPM 2.0
  • Support iAMT (not for i3)
Storage
  • 1 x M.2 2280 (SATA, PCIe x4) Key M socket
  • 1 x M.2 2280 (PCIe x4) Key M socket
Expansion
  • 1 x M.2 2230 Key E (PCIe x2, USB), support optional Wi-Fi modules
  • 1 x M.2 3042/3052 Key B (PCIe x1, USB 3.2), support optional 3G, 4G or 5G modules
  • 1 x SIM slot
Power Supply
  • 1 x External AC/DC power adapter (120W for B561, 180W for B561-PoE)
  • Input: 100VAC to 240VAC
  • Output: DC+12 or +24VDC
Environment
  • Operating temperature: -20°C to 60°C (for B561), 0°C to 40°C (for B561-PoE)
  • Storage temperature: -20°C to 80°C
  • Humidity: 10 to 95% (non-condensing)
Certification
  • CE Approval
  • FCC Class A
Dimensions 238mm (W) x 192mm (D) x 67.29mm (H)
Operating System Support Win10/Linux
Description

The NDiS B561 fanless visual edge computer can handle demanding multimedia content, powered by the 12th/13th Gen Intel Core processor series and Intel 600 series chipset integrated graphics controller. It has a wide operating temperature range of between -20 and 60 °C.

Additionally, there are three independent 4K2K display outputs or up to 8K@60Hz in one display output, as well as rich connectivity options like 8 USB 3.2, 3 LAN ports (including 2 PoE ports), Wi-Fi 6E, and 4G and 5G support. The NDiS B561 is suitable for both indoor and outdoor applications, including smart stadiums, public transportation, security surveillance, outdoor bus stations, and visual edge computing.
