Embedded Computer Powered by 3rd Generation Intel® Core™ Processor, Based OPS Digital Signage Platform
In stock
SKU
NDiS-M532 EOL
Have a Question about this product?
Description /
NDiS-M532 Embedded Computer Powered by 3rd Gen
Embedded Computer Powered by 3rd Generation Intel® Core™ Processor, Based OPS Digital Signage Platform
·3rd generation Intel® Core™ processor
·Intel® integrated HD 4000 graphic engine
·Compact and slim design
·Easy maintenance and upgrade
·USB 3.0, dual GbE LAN support
·WLAN/TV tuner support
·DirectX 11 support
More Information
brand
Nexcom
Specifications
CPU Support
3rd generation Intel® Core™ rPGA socket type processor
Chipset
Intel® QM77
Graphic
Intel® integrated HD4000
Main Memory
1 x 204 pin SO-DIMM socket, support DDR3 1600 MHz with un-buffered and non-ECC SDRAM up to 8GB

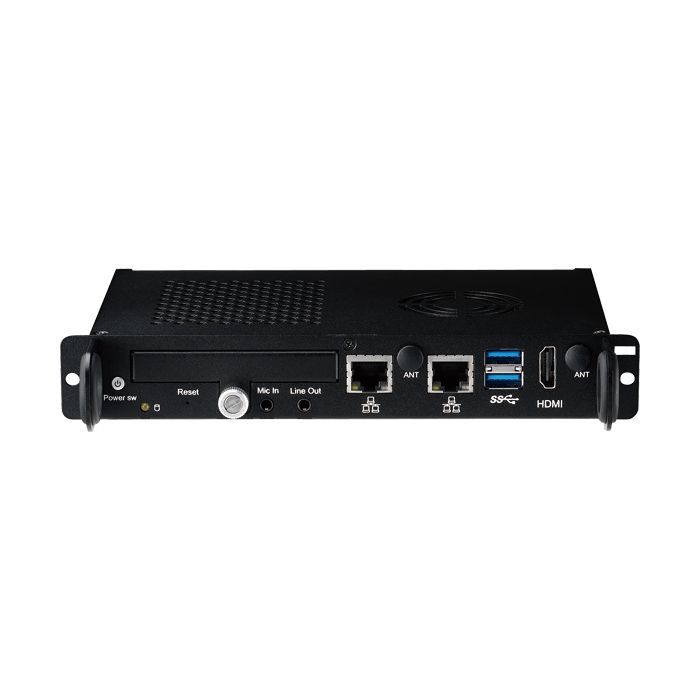

I/O Interface-Front
1 x Power button1 x Reset button1 x HDD LED2 x USB 3.01 x HDMI1 x Audio Mic-in1 x Audio Line-out2 x RJ45 with LEDs for Gigabit LAN1 x 2.5" HDD slot2 x Antenna hole
I/O Interface-Rear
1 x TMDS1 x DP1 x UART1 x Audio out L/R2 x USB 2.01 x USB 3.0DC input +12V~+19VControl signals (PWR_STATUS, PS_ON#, PB_DET, CEC, SYS_FAN)
Storage Device
1 x 2.5" SATA storage bay for HDD/SSD
Expansion
1 x mini-PCIe for optional WLAN/TV tuner module
Dimensions
200mm (W) x 119mm (D) x 30mm (H) (7.8" x 4.7" x 1.1")
Power Power Supply
DC power input +12V~19V
Environment
Operating temperature: ambient with air flow from 0°C to 45°CStorage temperature: -20°C to 80°CHumidity: 10 to 90% (non-condensing)
Certification
CE approvalFCC Class A
Operating System
Win7/Win8/XP/WES7/WE8S/WES2009/Linux
Description
Embedded Computer Powered by 3rd Generation Intel® Core™ Processor, Based OPS Digital Signage Platform
