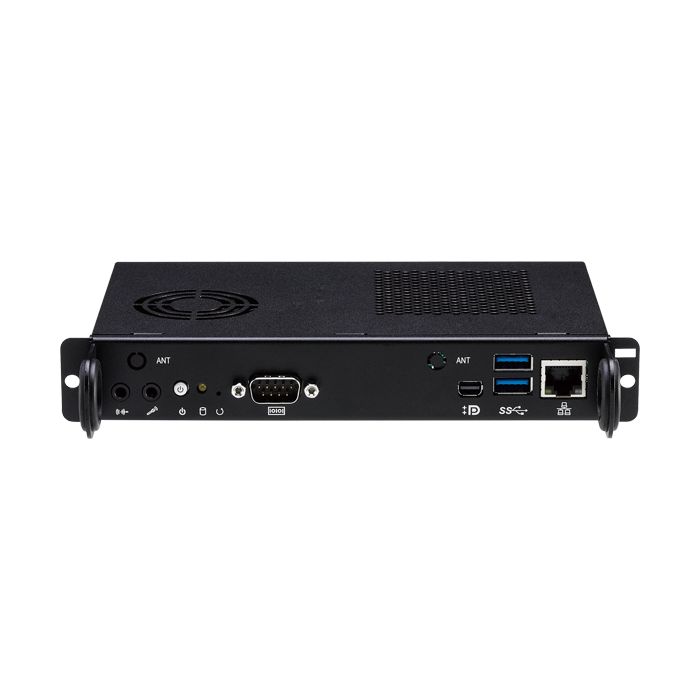

NDiS-M537 Embedded Computer 7th/6th Gen

Nexcom

Slimline Fanless Embedded PC 8/9th Gen Core™ CPU

In stock

SKU
NDIS-M537

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / NDiS-M537 Embedded Computer 7th/6th Gen

  • Support 9th and 8th Gen Intel® Core™ i7/i5/i3 LGA socket type embedded processor, up to 35W
  • Intel® H310
  • Intel® integrated UHD 630 graphic engine
  • Support 2 independent 4K2K 60Hz display output
  • Compact and slim design (H: 39mm)
  • Support 1 x 2.5” SATA HDD
  • 3 x HDMI 2.0, 4 x USB 3.0, 2 x USB 2.0, 2 x GbE LAN, 4 x COM, 1 x Line-out, 1 x Mic-in
  • Support M.2 Key B/E/M
  • Fanless design

More Information

brand Nexcom
Specifications
CPU Support 7th generation Intel® Core™ processor (LGA1151), 35W
6th generation Intel® Core™ processor (LGA1151), 35W
Chipset Intel® Q170 PCH
Graphic Intel® integrated HD 630 graphics
Main Memory 2 x 260-pin SO-DIMM sockets, supports DDR4 2133/2400 MHz
non- ECC, un-buffered memory up to 32G (single socket max. 16GB)
I/O Interface-Front 1 x Power button with LED 1 x Reset button
1 x RJ45 with LEDs for Gigabit LAN
1 x Mini DP connector for DisplayPort++ 2 x USB 3.0
1 x Storage active LED 2 x Antenna hole
1 x Mic-in phone jack 1 x Line-out phone jack
1 x DB9 for RS232 (COM3)
I/O Interface-Rear (TX25) 1 x TMDS (HDMI 2.0) 1 x USB 3.0
2 x USB 2.0 1 x UART (3.3V TTL) (COM2)
1 x Audio out L/R
DC input +12V~+19V Control signals
(PWR_STATUS, PS_ON#, PB_DET, CEC, SYS_FAN)
I/O Interface-Rear (FX18) 1 x GPIO signal 2 x I2C signal LAN managements signals
1 x DP1.2 signal PCIe x4 signal
Storage Device 1 x M.2 2242, SATA signal
Expansion 1 x M.2 2230 for optional Wi-Fi module
Dimensions 200mm (W) x 119mm (D) x 30mm (H) (7.8\" x 4.7\" x 1.1\")
Power Power Supply DC power input +12V~+19V
Environment Operating temperature: ambient with air flow from 0°C to 45°C
Storage temperature: -20°C to 80°C Humidity: 95% (non-condensing)
Certification CE/FCC Class A
Operating System 7th generation Intel® Core™: Win10 (64-bit)
6th generation Intel® Core™: Win7 (32/64-bit)/Win10 (64-bit)
Description
  • Support 9th and 8th Gen Intel® Core™ i7/i5/i3 LGA socket type embedded processor, up to 35W
  • Intel® H310
  • Intel® integrated UHD 630 graphic engine
  • Support 2 independent 4K2K 60Hz display output
  • Compact and slim design (H: 39mm)
  • Support 1 x 2.5” SATA HDD
  • 3 x HDMI 2.0, 4 x USB 3.0, 2 x USB 2.0, 2 x GbE LAN, 4 x COM, 1 x Line-out, 1 x Mic-in
  • Support M.2 Key B/E/M
  • Fanless design
