NDiS-M538 OPS-Based Digital Signage Player 4K2K Resolution 8th Gen

Nexcom

OPS-Based Digital Signage Platform, 4K2K Resolution Embedded Computer Powered by 8th Gen. Intel® Core™ Processor

In stock

SKU
NDiS-M538

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / NDiS-M538 OPS-Based Digital Signage Player 4K2K Resolution 8th Gen

8th Generation Intel® Core™ i processor

Support socket type CPU up to 35W

Intel® UHD 630 graphic engine

Support 3 independent 4K2K video output

Dual DDR4 SO-DIMM support

Support M.2 storage and Wi-Fi module

Onboard TPM 2.0

Compliant to Intel® vPro™ and Intel® Active Management Technology

More Information

brand Nexcom
Specifications
CPU Support 8th Gen Intel® Core™-i socket type processor
- Intel® Core™ i7-8700T 2.40GHz, 6 Core 35W
- Intel® Core™ i5-8500T 2.10 GHz 6 Core 35W
- Intel® Core™ i3-8100T 3.10 GHz 4 Core 35W
Chipset Intel® Q370 PCH
Graphic Intel® HD Graphics 630 series
Main Memory 2 x 260-pin SO-DIMM sockets, supports DDR4 1866/2133 MHz Non ECC, un-buffered memory up to 32G (single socket max. 16GB)

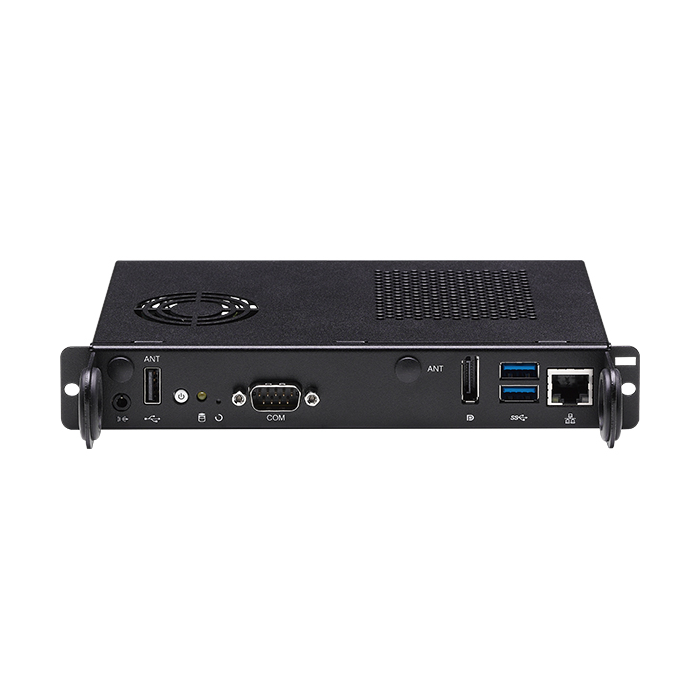

I/O Interface-Front 1 x Power button with LED1 x Reset button1 x DP connector for DisplayPort++1 x RJ45 with LEDs for Gigabit LAN2 x USB 3.01 x USB 2.01 x COM port (COM2)1 x Audio line out2 x AntennaOnboard TPM 2.0 ICCompliant to Intel® vPro™ and Intel® Active Management Technology
I/O Interface-Rear (TX25) 1 x HDMI 2.0a supporting 4K2K resolution1 x DisplayPort 1.2 supporting 4K2K resolution1 x UART TX, RX 3.3V TTL (COM 1)1 x Audio Line out R/L3 x USB 2.01 x USB 3.11 x COM port (COM2)1 x Audio Line outControl signals (PWR_STATUS, PS_ON#, PB_DET, CEC, SYS_FAN)
Storage 1 x M.2 2280 M Key, support SATA 3.0/PCIe Gen 3 signal
Expansion 1 x M.2 2230 E Key, support PCIe/USB 2.0 Wi-Fi module
Dimensions 200mm (W) x 119mm (D) x 30mm (H) (7.8” x 4.7” x 1.1”)
Power Power Supply DC power input +12V~+19V
Environment Operating temperature: 0°C to 45°CStorage temperature: -20°C to 80°CHumidity: 95% (non-condensing)
Certification CE/FCC Class A
Operating System Win10 (64-bit)


Description

8th Generation Intel® Core™ i processor

Support socket type CPU up to 35W

Intel® UHD 630 graphic engine

Support 3 independent 4K2K video output

Dual DDR4 SO-DIMM support

Support M.2 storage and Wi-Fi module

Onboard TPM 2.0

Compliant to Intel® vPro™ and Intel® Active Management Technology
