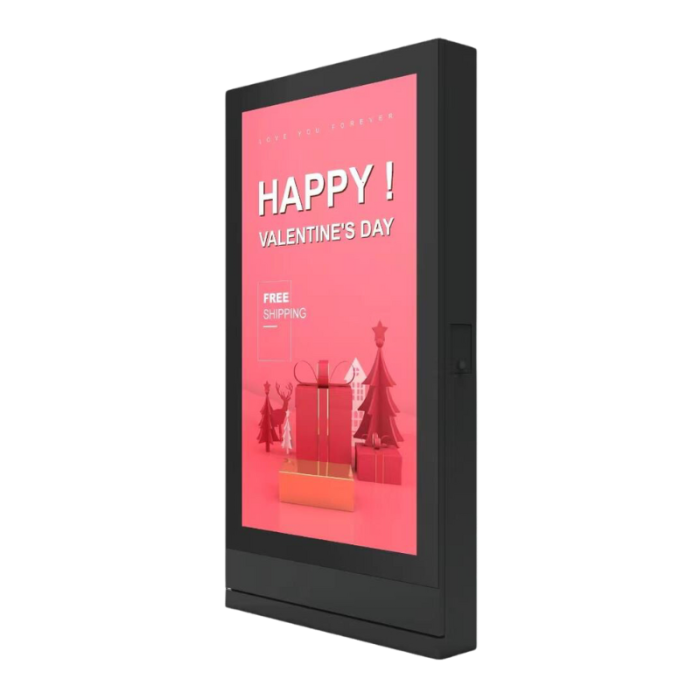

OF-FP30 Series 3000nit Fan Cooled Outdoor Digital Signage
BOE
OF-FP30 Series 3000nit Fan Cooled Outdoor Digital Signage
Single Side 3000nits Fan Cooling Outdoor Digital Signage Screen
Key Features:
- 3000nits UHD Resolution LCD
- Multiple Input Source
- IP55 Rated Water & Dust Proof
- AR Coated Tempered Protection Glass of LCD Screen
- Up to 20 ℃℃~ +50 Operating
- Industrial Fan Cooling System
- Built in Speaker (Optional)
- Built in Player (Optional)
- Brightness Auto Adjustment with Ambient Light Sensor
- Built in Multiple Sensor
- Support Remote Sensing & Control via IP
-
SKU
-
OFxx-FP30
-
Size
-
65"
Have a Question about this product?
More Information
| brand |
BOE |
| Specifications |
|
Specification
|
OF55-FP30 / OF65-FP30 / OF75-FP30 / OF86-FP30
|
|
Screen Size (Diagonal)
|
55 inch / 65 inch / 75 inch / 86 inch
|
|
Native Resolution
|
2160 × 3840
|
|
Brightness
|
3000 cd/m²
|
|
Contrast Ratio
|
≥ 1000:1
|
|
View Angle
|
178° (H) / 178° (V)
|
|
Lifetime (Light Source)
|
50,000 Hours
|
|
Body Dimension (mm)
|
2100 × 870 × 185 / 2200 × 1000 × 220 / 2300 × 1150 × 220 / 2450 × 1300 × 240
|
|
Weight
|
TBD
|
|
Operating Temp. Range
|
-20°C to 50°C (OF55/OF65) / -20°C to 45°C (OF75/OF86)
|
|
Operating Humidity
|
10% to 95% RH
|
|
Cooling System
|
Industrial Fan Cooling
|
|
Water & Dust Proof
|
IP55
|
|
Screen Protection
|
AR Tempered Glass
|
|
Inputs
|
HDMI × 2, DP × 1
|
|
Outputs
|
Audio × 1
|
|
Control
|
RS232 (UART) × 1
|
|
Remote Sensing Features
|
Multiple Sensors
|
|
Optional Built-in Player
|
Android 7.1 (AOSP), RK3288 CPU, 2G/32G
|
|
Power Supply
|
AC 200-240V @ 50/60Hz
|
|
