OFT-07WR1 7" Open Frame Panel PC with RK3288

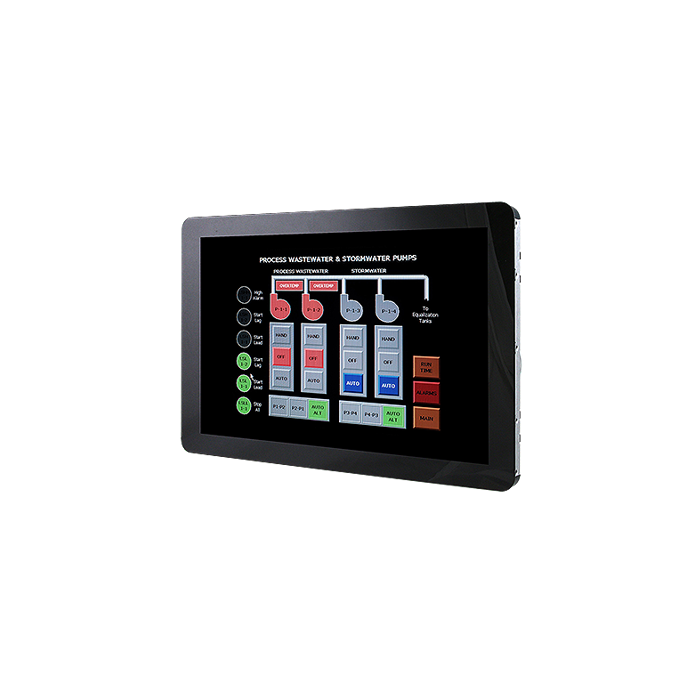

10.1" Open Frame Tablet with RK3288
·RockChip RK3288W Cortex-A17 Quad Core 1.6GHz
·2GB or 4G RAM
·16GB or 32GB eMMC
·PCAP Touch
·10/100/1000 Ethernet
·M.2 B-Key(3042) connector socket
·802.11 b/g/n Wireless LAN and Bluetooth 4.0
·DC 12~24V Input
·Optional Powered LAN 802.3AT
·Optional 1000 nits / PCAP Touch with 3mm CG
·OS Image support Android 8.1 / Debian 9
·Battery Charger
·Note : You need a 19v or a 24v power adapter to fully charge the battery. You cannot fully charge the battery with a 12v power adapter.
More Information
Brand
Avalue Technology Inc
Specifications
System
Processor
RockChip RK3288W Cortex-A17 Quad Core 1.6GHz
System Memory
2GB or 4GB DDR3L RAM
Storage
Storage
16GB or 32GB eMMC
Panel
LCD Size
10.1"
Resolution
1280x800
Luminance
350 nits Optional 1000 nits
Viewing angle
170° (H/V)
Touch Type
PCAP
I/O
External I/O Connector
1 x Power Jack 1 x HDMI Port 2 x USB Type A Host 1 x RJ45 1 x Headphone Jack 1 x Micro SD slot 1 x Reset
Internal I/O Connector
1 x Micro USB 1 x USB interface , 1 x DMIC interface 1 x USB touch interface 1 x M.2 B-Key(3042) 1 x touch button control(power/vol/brightness) 1 x Power interface (12~24V) 1 x Li-Battery connector 1 x JLVDS1 1 x JMIPI 1 x AMIC interface 1 x Speaker interface 1 x JSEN1 interface (I2C x2) 1 x JITP1 interface 1 x Debug port 1 x RS232 interface 1 x RS232 , RS485 1 x JGPIO1 (GPIO 16bit) 1 x RTC Battery interface 1 x Micro SIM Card socket for LTE module
Display
Multiple Display
LVDS+HDMI
Mechanical & Environmental
Power Requirement
DC 12~24V Input
Power Type
DC Jack, DC input 4pin header (Optional Powered LAN 802.3AT)
Operating Temperature
0°C ~ 40°C
Storage Temperature
-10°C ~ 60°C0
Operating Humidity
0% ~ 90% Relative Humidity, Non-condensing
Weight
1.18kg
Dimension (L x W x H)
252 x 166 x 38mm
Certifications
Certification Information
CE, FCC Class A
Software Support
OS Information
Android 8.1 / Debian 9
Wireless Communication
WLAN
802.11 b/g/n
Bluetooth
4.0
Description
10.1" Open Frame Tablet with RK3288
·RockChip RK3288W Cortex-A17 Quad Core 1.6GHz
·2GB or 4G RAM
·16GB or 32GB eMMC
·PCAP Touch
·10/100/1000 Ethernet
·M.2 B-Key(3042) connector socket
·802.11 b/g/n Wireless LAN and Bluetooth 4.0
·DC 12~24V Input
·Optional Powered LAN 802.3AT
·Optional 1000 nits / PCAP Touch with 3mm CG
·OS Image support Android 8.1 / Debian 9
·Battery Charger
·Note : You need a 19v or a 24v power adapter to fully charge the battery. You cannot fully charge the battery with a 12v power adapter.
