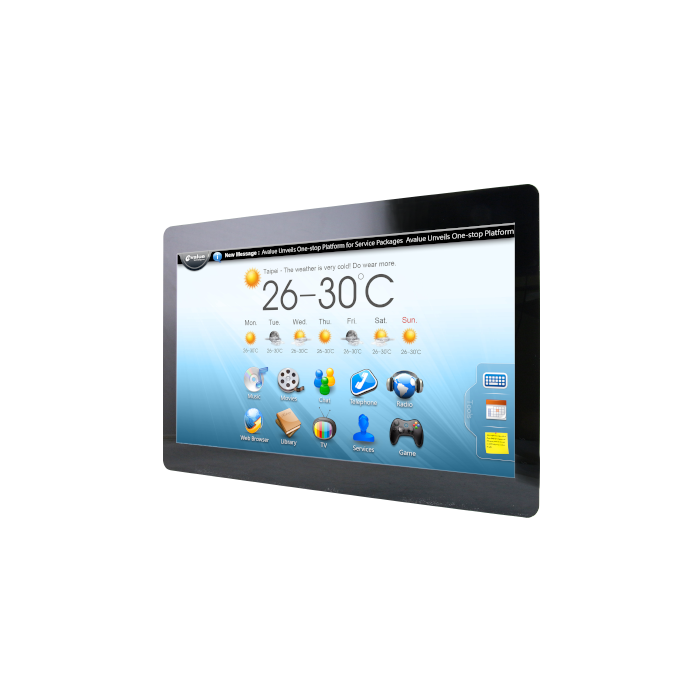

The OFT series consists of open-frame multi-touch tablet PCs which use low-power Intel Celeron J3455 processor. With TFT Full HD LCD displays available in sizes 10”, 15” and 21”, you can choose the right fit for your application. Furthermore, the OFT series’ full-flat thin bezel design with projected capacitive technology makes them extremely suitable for any application that requires touch control. With a full-flat display panel that makes cleaning easy, it minimizes the trouble of cleaning the panel especially when used on a kiosk. Supporting Windows 10 and Ubuntu 20.04, it can integrate most software. Users can install the operating system according to their specific requirements, providing the greatest flexibility in use. The OFT series is ideal for various industrial environments, medical fields and retail markets. Its wide range of applications includes kiosks, vending machines, control cabinets and smart homes.
Key Features:
Intel Celeron Processor J3455
4GB RAM
32GB eMMC
Projective Capacitive Touch
10/100/1000 Ethernet
M.2 B-Key(3042) connector socket
802.11 a/b/g/n/ac Wireless LAN
Windows 10 supported
DC 12~24V Input
More Information
brand
Avalue Technology Inc
Specifications
-System Information-
Processor
Intel Celeron J3455 Quad Core CPU 1.50 GHz
System Memory
DDR3L 1866 4GB RAM SO-DIMM
Storage
Storage
32GB eMMC on board
Panel
LCD Size
15.6"
LCD Panel
TFT LCD
Display Type
Full HD
Resolution
1920x1080
Pixel pitch
179.25 (H) X 179.25 (V) (um)
Luminance
220 cd/m²
Contrast ratio
800
Viewing angle
85 (U), 85 (D), 85 (L), 85 ( R)
Response time
30ms
Backlight
LED
Touch Type
Projective Capacitive
Touch Light Transmission
85%
I/O
External I/O Connector
1 x Power jack 1 x HDMI 2 x USB 3.0 Type A 1 x RJ45 1 x Headphone Jack 1 x Power button
Internal I/O Connector
1 x Micro USB 1 x USB interface , 1 x DMIC interface 1 x USB touch interface 1 x M.2 B-Key(3042) 1 x M.2 E-Key(2230) 1 x touch button control(power/vol/brightness) 1 x Power interface (12~24V) 1 x eDP 1 x AMIC interface 1 x Speaker interface 1 x JSEN1 interface (I2C x2) 1 x RS232 (Tx/Rx/Rts/Cts) interface 1 x RS232 (Tx/Rx/Rts/Cts) , RS485 (Tx/Rx/Rts/Cts) 1 x JGPIO1 (GPIO 16bit) 1 x RTC Battery interface 1 x Micro SIM Card socket for LTE module 1 x Micro SD slot
Wireless Communication
WLAN
802.11 a/b/g/n/ac
Display
Multiple Display
eDP + HDMI
Certifications
Certification Information
CE, FCC Class A
Mechanical & Environmental
Operating Temperature
0°C ~ 40°C
Storage Temperature
-20°C ~ 60°C
Operating Humidity
40°C @ 95% Relative Humidity, Non-condensing
Dimension (W x L x H)
384 x 254 x 47.5 mm
Weight
2.2kg
Power Requirement
DC 12~24V Input
Power Mode
DC Jack, DC input 4pin header
Software Support
OS Information
2019 Windows 10(64 bit)
Ordering Information
Ordering Information
OFT-15W04-3411-A1R_OFT-15W04-4G_32G-Win10
Description
The OFT series consists of open-frame multi-touch tablet PCs which use low-power Intel Celeron J3455 processor. With TFT Full HD LCD displays available in sizes 10”, 15” and 21”, you can choose the right fit for your application. Furthermore, the OFT series’ full-flat thin bezel design with projected capacitive technology makes them extremely suitable for any application that requires touch control. With a full-flat display panel that makes cleaning easy, it minimizes the trouble of cleaning the panel especially when used on a kiosk. Supporting Windows 10 and Ubuntu 20.04, it can integrate most software. Users can install the operating system according to their specific requirements, providing the greatest flexibility in use. The OFT series is ideal for various industrial environments, medical fields and retail markets. Its wide range of applications includes kiosks, vending machines, control cabinets and smart homes.
