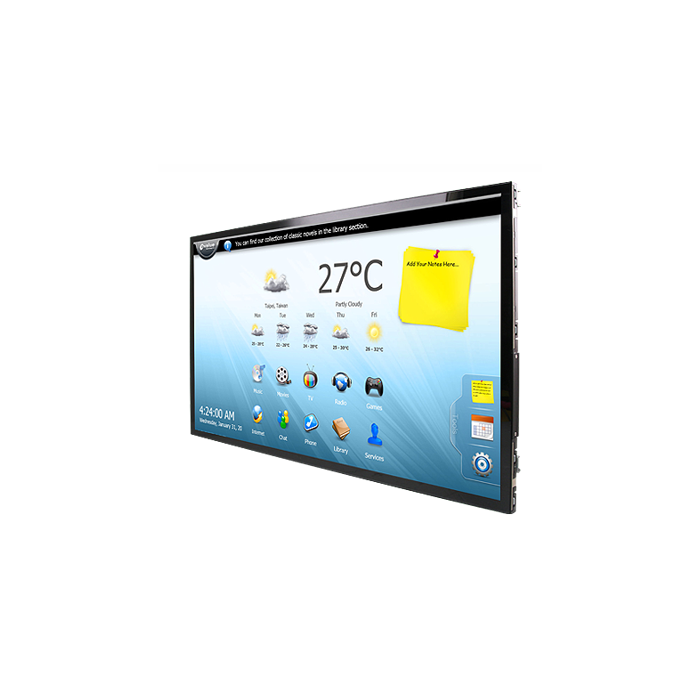

Shop OFT-21W03 21.5" Atom Z8350 Open Frame Panel PC

Avalue Technology Inc

21.5" Open Frame Tablet

In stock

Name *

Phone *

Email *

Postcode *

Message *

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / OFT-21W03 21.5" Atom Z8350 Open Frame Panel PC

21.5" Open Frame Tablet

· Intel® Atom™ Processor Z3735F

· 2GB RAM

· 8GB or 32GB eMMC

· PCAP Touch

· 10/100 Ethernet (PXE Boot)

· Touch board interface (Power/ Brightness/ Volume/ LED)

· 16Bit programmable GPIO

· RS232(TX/RX) or RS485

· DC 12~24V Input

Brand

Avalue Technology Inc

Specifications

System
Processor	Intel® Atom™ Processor Z8350 1.44GHz Quad Core CPU
System Memory	2 or 4GB DDR3L RAM

Storage
Storage	8GB or 32GB eMMC

I/O
External I/O Connector	1 x USB 2.0, 1 x USB3.0 1 x micro USB Client 1 x 10/100 Ethernet 1 x HDMI 1 x Head phone jack 1 x Micro SD slot 1 x DC jack
Internal I/O Connector	1 x 16 bit GPIO interface 1 x USB interface 1 x eDP & Dual channel 24bit LVDS 1 x backlight control & power 2 x speaker interface (1.2W stereo) 1 x A-MIC interface 1 x Touch Button connector 1 x DC input 4pin header 1 x I2C interface(optional) 4 x RS232, 1 x RS485

Display
Multiple Display	Windows/ Linux support extended mode; Android support clone mode only

Mechanical & Environmental
Power Requirement	DC 12~24V Input
Power Type	DC Jack, DC input 4pin header
Operating Temperature	0°C ~ 40°C
Storage Temperature	-10°C ~ 60°C
Operating Humidity	0% ~ 90% Relative Humidity, Non-condensing
Weight	3.6 kg
Dimension (L x W x H)	500 x 292 x 47 mm
