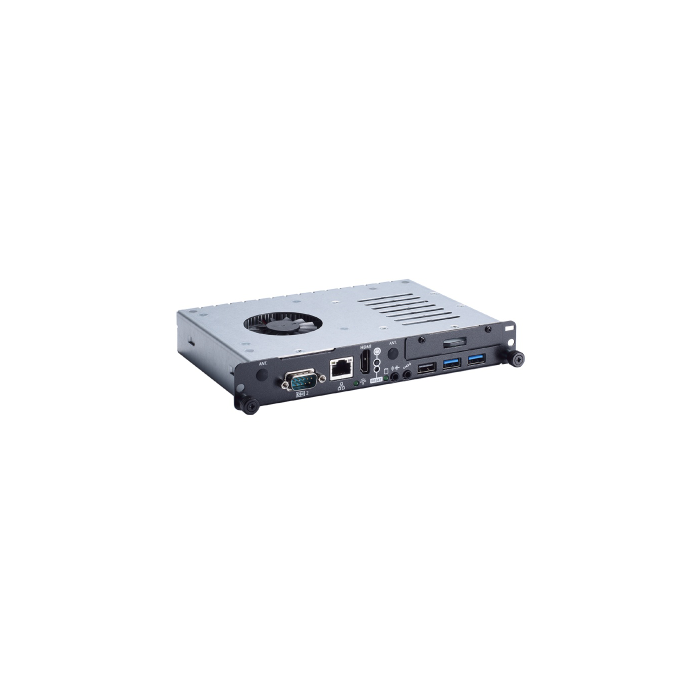

OPS500-501-H, 7th gen LGA1151 CPU, Intel H110

Axiomtek

Open Pluggable Specification (OPS) Digital Signage Player with LGA1151 Socket 7th/6th Gen Intel® Core™ i7/i5/i3 & Celeron® Processor and Intel® H110

In stock

SKU
OPS500-501-H

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / OPS500-501-H, 7th gen LGA1151 CPU, Intel H110

Open Pluggable Specification (OPS) Digital Signage Player with LGA1151 Socket 7th/6th Gen Intel® Core™ i7/i5/i3 & Celeron® Processor and Intel® H110



·         Intel® Open Pluggable Specification (OPS compliance)

·         7th/6th gen Intel® Core™ i7/i5/i3 & Celeron® processors (Kaby Lake/Skylake)

·         DDR4-2133/2400 SO-DIMM for up to 16GB of memory

·         1 PCI Express Mini Card slot

·         HDMI for 2nd ultra HD display with 4K @ 60Hz resolution

·         Easy installation and maintenance

More Information

brand Axiomtek
Specifications
CPU
  • LGA1151 socket 7th/6th generation Intel® Core™ and Celeron® processors
Chipset
  • Intel® H110
System Memory
  • 7th generation Intel® Core™:
    1 x 260-pin DDR4-2133/2400 SO-DIMM, up to 16GB
  • 6th generation Intel® Core™:
    1 x 260-pin DDR4-2133 SO-DIMM, up to 16GB
BIOS
  • AMI
COM
  • 1 x RS-232
USB
  • 2 x USB 3.0
  • 1 x USB 2.0
Ethernet
  • 1 x 10/100/1000 Mbps (Intel® i219-LM)
Display
  • 1 x HDMI 1.4b with 4K resolution
Audio
  • 1 x Audio (Line-out & Mic-in)
JAE Connector
  • 1 x DisplayPort
  • 1 x HDMI 2.0
  • 2 x USB 2.0
  • 1 x USB 3.0
  • 1 x Audio (Line-out)
  • 1 x UART (TX/RX)
HRS Connector
  • N/A
Wi-Fi
  • 802.11 b/g/n (optional)
Storage
  • 1 x 2.5" SATA HDD tray
  • 1 x mSATA (optional)
Expansion
  • 1 x Full-size PCI Express Mini Card (USB + PCI Express + SATA Signal)
Power Supply
  • 1 x 12 VDC power input (adapter available by option)
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Operating Temperature
  • 0°C to +45°C (+32°F to +113°F) (with airflow 1.2m/s)
Dimensions
(W x D x H)
  • 200 x 119 x 30 mm (7.87” x 4.68” x 1.18”)
Weight (net/gross)
  • 1 kg (2.21lb)/ 1.5 kg (3.3 lb)
Certifications
  • CE


Description

Open Pluggable Specification (OPS) Digital Signage Player with LGA1151 Socket 7th/6th Gen Intel® Core™ i7/i5/i3 & Celeron® Processor and Intel® H110



·         Intel® Open Pluggable Specification (OPS compliance)

·         7th/6th gen Intel® Core™ i7/i5/i3 & Celeron® processors (Kaby Lake/Skylake)

·         DDR4-2133/2400 SO-DIMM for up to 16GB of memory

·         1 PCI Express Mini Card slot

·         HDMI for 2nd ultra HD display with 4K @ 60Hz resolution

·         Easy installation and maintenance
