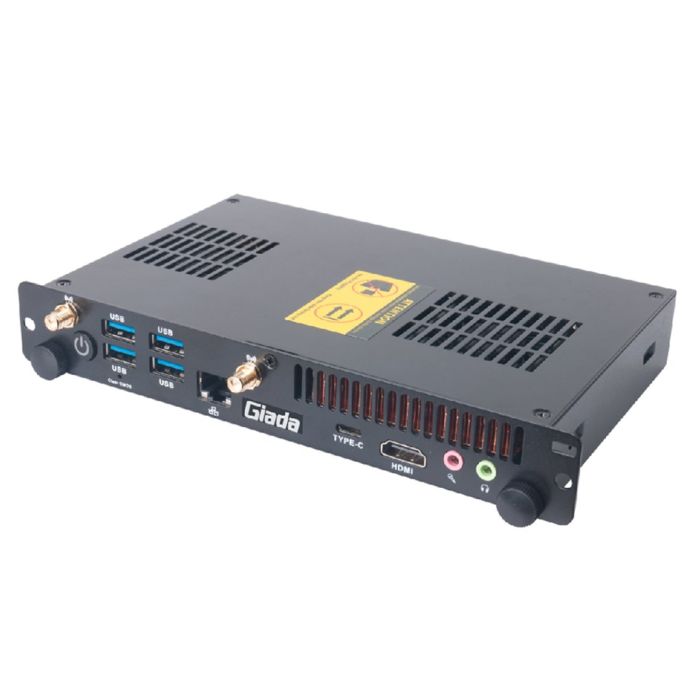

PC610 High-end Comet Lake OPS Player

Giada Technology Inc.

PC610 High-end Intel Comet Lake OPS Player, supports 4K displays

In stock

SKU
PC610

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / PC610 High-end Comet Lake OPS Player

The PC610 is a high-end Comet Lake PC that supports Intel's Open Pluggable Specification (OPS), which allows for easy upgrades, maintenance, and support for ultra-high resolution graphics. This high-end OPS player is especially well suited to collaboration, education, and smart retail applications.

Features

  • Intel® LGA1200 Socket 10th Gen. Processors
  • 2 x SO-DIMM DDR4, Up to 32GB
  • 1 x JAE (DP/HDMI), 1 x HDMI, Supporting 4K Display
  • 1 x M.2 (2242/2280) for SSD
  • 1 x USB Type-C, 4 x USB Type-A
  • 1 x RJ45, 1 x M.2 (2230) for WiFi/BT (WiFi 6)

More Information

brand Giada Technology Inc.
Specifications
Processor CPU Intel® LGA1200 Socket 10th Gen.Processors (TDP≤35W)
BIOS AMI Source Code
Chipset Intel® H470 (Optional:Q470/H420E)
Memory Type DDR4-2666MHz
Socket 2 x SO-DIMM
Max Size 32GB
Graphics DP（80Pin JAE OPS） 1 x DP (Max.4096 x 2304@60Hz)
HDMI（80Pin JAE OPS） 1 x HDMI (Max.4096 x 2304@60Hz)
HDMI 1 x HDMI (Max.4096 x 2304 @24Hz)
Network Controller RTL 8111H Gigabit Ethernet
Interface 1 x RJ45
I/O USB

2 x USB3.2 Gen1, 2 x USB3.2 Gen2

1 x  USB Type-C 3.2 Gen2 (H470)

4 x USB3.2 Gen1

1 x USB Type-C 3.2 Gen1 (H420E)
Serial Port 1 x UART
Audio 1 x MIC-IN, 1 x AUDIO-OUT)
M.2 (2230) 1 x M.2 (2230) E-Key for WiFi/BT (WiFi 6T)
TPM Infineon TPM 2.0 (Optional)
Storage M.2  1 x M.2 (2242/2280) M-Key for SSD
Operation System Windows Windows 10（64-Bit)
Linux Support
Power Power Type 2.5/5.5 DC Jack / 12V~19V
80Pin JAE DC-IN / 12V~19V
Mechanical Dimensions (W Ã— D Ã— H) 200mm x 119mm x 30mm(7.87"x4.96"x1.18")
Construction Metal
Colour Black
Environment Operating Temperature 0℃ ~ 40℃ ( 32 â„‰ ~ 104 â„‰ ) at 0.7m/s Air Flow
Relative Humidity 95%@40℃ (non-condensing)
Certification Certification  CE, FCC Class B,
License The Adopted Trademarks HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
Description

The PC610 is a high-end Comet Lake PC that supports Intel's Open Pluggable Specification (OPS), which allows for easy upgrades, maintenance, and support for ultra-high resolution graphics. This high-end OPS player is especially well suited to collaboration, education, and smart retail applications.

Features

  • Intel® LGA1200 Socket 10th Gen. Processors
  • 2 x SO-DIMM DDR4, Up to 32GB
  • 1 x JAE (DP/HDMI), 1 x HDMI, Supporting 4K Display
  • 1 x M.2 (2242/2280) for SSD
  • 1 x USB Type-C, 4 x USB Type-A
  • 1 x RJ45, 1 x M.2 (2230) for WiFi/BT (WiFi 6)
pdf
Datasheet
