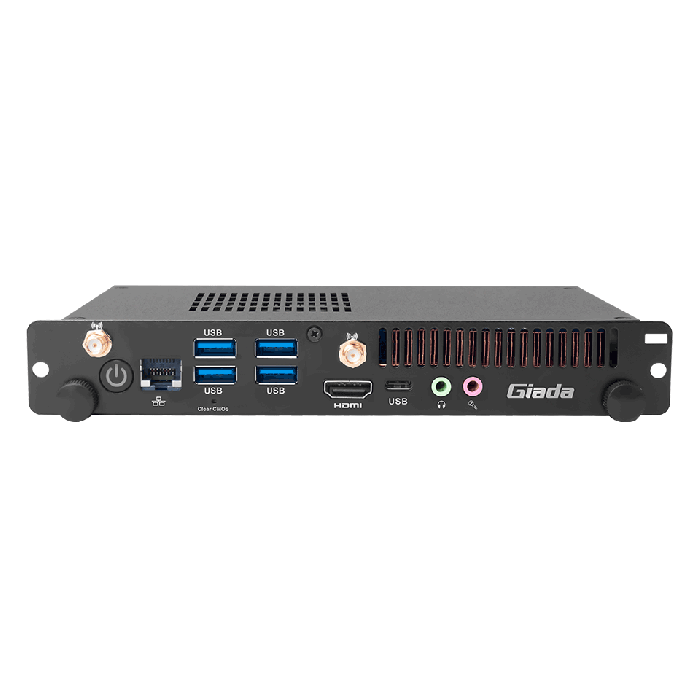

PC611 High Performance OPS Player

Giada Technology Inc.

High Performance OPS Player with 11th Gen Core i3/i5, 5 x USB and 1x HDMI

Key Features:

  • Intel Tiger Lake 11th Gen. processors
  • JAE support HDMI output
  • 1 x HDMI (4096 x 2160 @60 Hz)
  • Support Wi-Fi/BT module

In stock

SKU
PC611-11x5Gx40N0G-GIA

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / PC611 High Performance OPS Player

Giada PC611 is powered by Intel 11th-Gen Tiger Lake Core i3-1115G4 and Core i5-1135G7 processors. The high-performance OPS also has a high price-performance ratio and is a low-cost hardware solution for interactive whiteboards in education and conferences.

PC611, which complies with Intel's Open Pluggable Specification (OPS), is simple to instal, upgrade, and maintain. Furthermore, the OPS includes TPM 2.0 features (optional) to improve productivity and data security. Giada PC611 is powered by Intel 11th-Gen Core i3-1115G4 and Core i5-1135G7 processors. The high-performance OPS also has a high price-performance ratio and is a low-cost hardware solution for interactive whiteboards in education and conferences.

PC611, which complies with Intel's Open Pluggable Specification (OPS), is simple to instal, upgrade, and maintain.

Key Features:

  • Intel Tiger Lake 11th Gen. processors
  • JAE support HDMI output
  • 1 x HDMI (4096 x 2160 @60 Hz)
  • Support Wi-Fi/BT module

More Information

brand Giada Technology Inc.
Specifications
CPU Intel i3-1115G4 Processor
Intel i5-1135G7 Processor

EBase Frequency
33.00GHz /2.40 GHz
Turbo Frequency 4.10 GHz/4.20 GHz

Chipset

 SoC

Processing Units
2 Cores /4 Cores

TDP
28 W
Memory



Size Up to 32 GB
Type 2 x SO-DIMM DDR4-3200 MHz
Socket 1
1 x M-Key M.2 (2242/2280) for PCIe SSD
Storage


GPU
Intel UHD Graphics (Core i3 processor)
Intel Iris Xe Graphics (Core i5/i7 processor)

Graphic Engine
DirectX 12.0, OpenGL 4.5, OpenCL 2.2, 8K60 12b 4:2:0 HEVC/VP9/SCC

Display Interface

 1 x HDMI (Max.4096 x 2160 @60 Hz)
JAE Interface
HDMI (Max. 4096 x 2304 @60Hz)
Network

Network Controller
 1 x Realtek RTL 8111H Gigabit Ethernet
Ethernet Interface
1 x RJ45
Wi-Fi/BT
 1 x E-Key M.2(2230) for Wi-Fi/BT, Support Wi-Fi 5, Wi-Fi 6 (CNVi)
Mobile Network
 NA

I/O Interface


USB
1 x USB Type-C3.2 Gen2,
4 x USB3.2 Gen1

JAE Interface
1 x 80pin JAE (HDMI2.0, 1 x USB3.2 Gen1, 3 x USB2.0, 1 x TTL, DC)

Serial Port
NA

Audio

1 x MIC-IN, 1 x AUDIO-OUT

Button

1 x Power on, 1 x CLR-CMOS

Antenna

2 x Connector for Wi-Fi/BT
System

TPM
Optional: TPM2.0
Watchdog Timer
 N/A
Auto Power On
 Yes (BIOS setting)
RTC
 Yes (BIOS setting)
Remo on
 NA
Power Requirement
 80pin JAE, 12 V~19 V
Dimensions
 200 mm x 119 mm x 30 mm (7.87” x 4.69” x 1.18”)
Construction
Metal, Black
Operating System
 Windows 10 (64bit) /Windows 11 (64bit) /Linux Ubuntu (64bit)
Operating Temperature
 0°C ~45°C (32°F~113°F) @0.7m/s Air Flow
Humidity
 95% @ 45°C (non-condensing)
Certifications
CE, FCC Class B
Description

Giada PC611 is powered by Intel 11th-Gen Tiger Lake Core i3-1115G4 and Core i5-1135G7 processors. The high-performance OPS also has a high price-performance ratio and is a low-cost hardware solution for interactive whiteboards in education and conferences.

PC611, which complies with Intel's Open Pluggable Specification (OPS), is simple to instal, upgrade, and maintain. Furthermore, the OPS includes TPM 2.0 features (optional) to improve productivity and data security. Giada PC611 is powered by Intel 11th-Gen Core i3-1115G4 and Core i5-1135G7 processors. The high-performance OPS also has a high price-performance ratio and is a low-cost hardware solution for interactive whiteboards in education and conferences.

PC611, which complies with Intel's Open Pluggable Specification (OPS), is simple to instal, upgrade, and maintain.

Key Features:

  • Intel Tiger Lake 11th Gen. processors
  • JAE support HDMI output
  • 1 x HDMI (4096 x 2160 @60 Hz)
  • Support Wi-Fi/BT module
