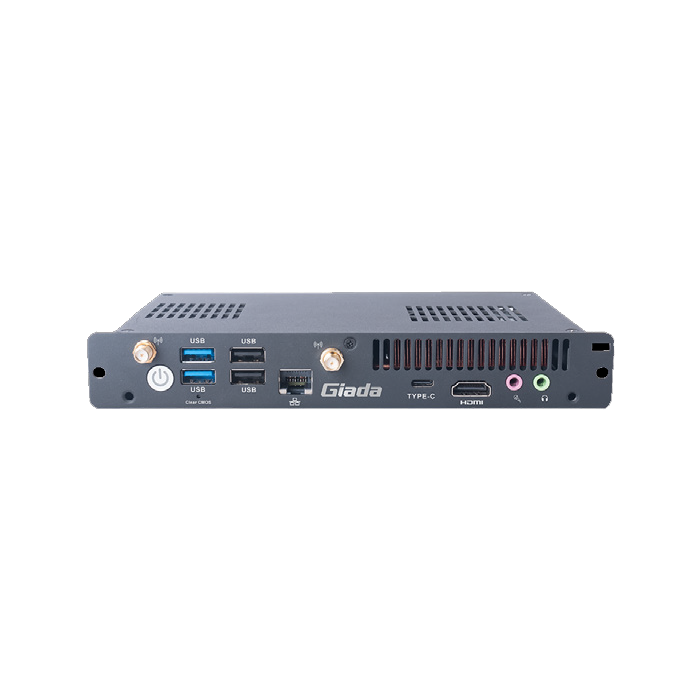

PC612 12th Gen OPS with Mobile CPU

Giada Technology Inc.

High-Performance OPS, Intel Alder Lake-U/P Inside, 8K Resolution

Key Features:

  • Intel Alder Lake-U/P 12th Gen. processors
  • JAE support HDMI/DP output 1 x HDMI (4096 x 2160 @60 Hz)
  • Support Wi-Fi/BT module
  • Optional Intel vPro technology

In stock

SKU
PC612-12x5U40N0G-GIA

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / PC612 12th Gen OPS with Mobile CPU

The PC612 is equipped with Intel 12th-Gen processors, the i3-1215U, i5-1235U, and i7-1255U, which offer 19% more performance than the 11th-gen "Rocket Lake". Alder Lake-P processors from Intel's 12th generation can be supported concurrently (optional). The Intel Open Pluggable Specification (OPS)-compliant device is simple to install, update, and maintain. It's the perfect option for contemporary interactive whiteboards and large-format displays. PC612 also has Intel vPro (optional) and TPM 2.0 features to deliver increased productivity, remote manageability and data security.

Key Features:

  • Intel Alder Lake-U/P 12th Gen. processors
  • JAE support HDMI/DP output 1 x HDMI (4096 x 2160 @60 Hz)
  • Support Wi-Fi/BT module
  • Optional Intel vPro technology

More Information

Brand Giada Technology Inc.
Specifications
CPU CPU
Intel® Core™ i3-1215U processor
Intel® Core™ i5-1235U processor
Intel® Core™ i7-1255U processor
Efficient Frequency
3.30 GHz/3.30 GHz/3.50 GHz
Performance Frequency
4.40 GHz/4.40 GHz/4.70 GHz

Chipset

 SoC

Processing Units
6 Cores/10 Cores/10 Cores

TDP
15 W
Memory Size Up to 32 GB
Type 2 x SO-DIMM DDR4-3200 MHz
Storage Socket 1
1 x M-Key M.2 (2242/2280) for SSD
Display

GPU
Intel® UHD Graphics (Core™ i3 processor)
Intel® Iris® Xe Graphics (Core™ i5/i7 processor)

Graphic Engine
DirectX12.1, OpenGL4.6, OpenCL3.0, Intel® Quick Sync Video

Display Interface

 1 x HDMI (Max.4096 x 2160 @60 Hz)
JAE Interface
DP/HDMI (Max. 7680 x 4320 @60Hz)
Network
Network Controller
1 x Realtek RTL 8111H Gigabit Ethernet
Ethernet Interface
1 x RJ45
Wi-Fi/BT
1 x E-Key M.2(2230) for Wi-Fi/BT, Support Wi-Fi 5, Wi-Fi 6 (CNVi)
Mobile Network
 NA
I/O interface

USB
1 x USB Type-C3.2 Gen2 (10 Gbps),
2 x USB3.2 Gen2 (10 Gbps), 2 x USB2.0

Serial Port
NA

Audio

1 x MIC-IN, 1 x AUDIO-OUT

Button

1 x Power on, 1 x CLR-CMOS

Antenna

2 x Connector for Wi-Fi/BT
System
TPM
Optional: TPM2.0
Watchdog Timer
 Yes
Auto Power On
Yes
RTC
Set up independently every day, a week as a cycle
Remo on
 NA
Power Requirement
DC jack/80pin JAE
DC-IN, 12 V~19 V
Dimensions
200 mm x 119 mm x 30 mm (7.87” x 4.69” x 1.18”)
Construction
Metal, Black
Operating System
 Windows 10 (64bit) /Windows 11 (64bit) /Linux Ubuntu (64bit)
Operating Temperature
0°C ~45°C (32°F~113°F) @0.7m/s Air Flow
Humidity
95% @ 45°C (non-condensing)
Certifications
CE, FCC Class B
Description

The PC612 is equipped with Intel 12th-Gen processors, the i3-1215U, i5-1235U, and i7-1255U, which offer 19% more performance than the 11th-gen "Rocket Lake". Alder Lake-P processors from Intel's 12th generation can be supported concurrently (optional). The Intel Open Pluggable Specification (OPS)-compliant device is simple to install, update, and maintain. It's the perfect option for contemporary interactive whiteboards and large-format displays. PC612 also has Intel vPro (optional) and TPM 2.0 features to deliver increased productivity, remote manageability and data security.

Key Features:

  • Intel Alder Lake-U/P 12th Gen. processors
  • JAE support HDMI/DP output 1 x HDMI (4096 x 2160 @60 Hz)
  • Support Wi-Fi/BT module
  • Optional Intel vPro technology
