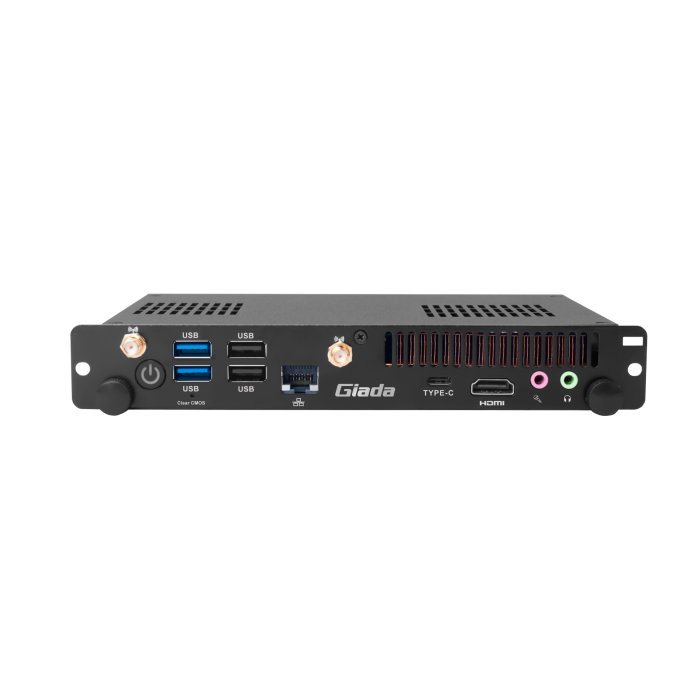

PC613 High Performance OPS Player 8K

Giada Technology Inc.

High-Performance OPS Player, Intel 13th Gen. i3/i5 Onboard, 8K Resolution

Key Features:

  • Intel Raptor Lake-U 13th Gen. processors
  • JAE support HDMI/DP output 1 x HDMI (4096 x 2160 @60 Hz)
  • Support Wi-Fi/BT module
  • Optional Intel® vPro® technology

In stock

SKU
PC613-13x5U40N0G-GIA

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / PC613 High Performance OPS Player 8K

Intel® 13th Gen. Raptor Lake Processors High Computing Performance

The Giada PC613, equipped with Intel® Raptor Lake Core i3-1315U/i5-1335U processors, ushers in a new era of both performance and efficiency. These processors seamlessly integrate high-performance cores with efficient ones, collaborating to optimize power consumption without sacrificing processing power.

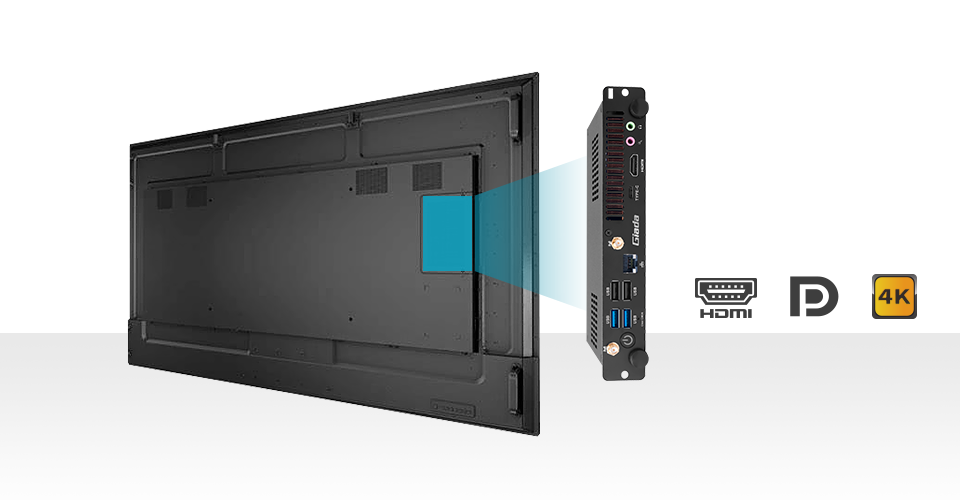

Supporting 8K Display

 The PC613 offers support for a maximum 8K display through its 80-pin JAE connector. Additionally, on the front panel, there is an HDMI 2.0a port available for connecting a secondary 4K@60Hz display. This makes it an optimal selection for large-format

Intel® vPro Technology

Intel® Hardware Shield delivers integrated hardware-based PC protection, which includes below-the-OS security, application and data protection, and advanced threat detection.

I/O Port Configuration

More Information

brand Giada Technology Inc.
Specifications

CPU

CPU

  • Intel® Core™ i3-1315U processor

  • Intel® Core™ i5-1335U processor

Efficient Frequency
  • 3.30 GHz/3.40 GHz

Performance Frequency
  • 4.50 GHz/4.60 GHz

Chipset
  • SoC

Processing Units
  • 8 Cores/12 Cores

TDP
  • 15 W

Memory

Size
  • Up to 32 GB

Type
  • 2 x SO-DIMM DDR4-3200 MHz

Storage

Socket 1
  • 1 x M-Key M.2 (2242/2280) for SSD

Display

GPU
  • Intel® UHD Graphics (Core™ i3 processor)
  • Intel® Iris® Xe Graphics (Core™ i5/i7 processor)

Graphic Engine
  • DirectX12.1, OpenGL4.6, OpenCL3.0, Intel® Quick Sync Video



Display Interface


  • 1 x HDMI (Max.4096 x 2160 @60 Hz)

JAE Interface
  • DP/HDMI (Max. 7680 x 4320 @60Hz)

Network

Network Controller
  • 1 x Intel® i219LM Gigabit Ethernet

Ethernet Interface
  • 1 x RJ45

Wi-Fi/BT
  • 1 x E-Key M.2(2230) for Wi-Fi/BT, Support Wi-Fi 5, Wi-Fi 6 (CNVi)

Mobile Network
  • NA

I/O interface

USB
  • 1 x USB Type-C3.2 Gen2 (10 Gbps),2 x USB3.2 Gen2 (10 Gbps), 2 x USB2.0

Serial Port
  • NA

Audio
  • 1 x MIC-IN, 1 x AUDIO-OUT

Button
  • 1 x Power on, 1 x CLR-CMOS

Antenna
  • 2 x Connector for Wi-Fi/BT

System

TPM
  • Optional: TPM2.0

Watchdog Timer
  • Yes

Auto Power On
  • Yes

RTC
  • Set up independently every day, a week as a cycle

Power Requirement
  • DC jack/80pin JAEDC-IN, 12 V~19 V

Dimensions
  • 200 mm x 119 mm x 30 mm (7.87” x 4.69” x 1.18”)

Construction
  • Metal, Black

Operating System
  • Windows 11 (64bit) /Linux Ubuntu (64bit)

Operating Temperature
  • 0°C ~45°C (32°F~113°F) @0.7m/s Air Flow

Humidity
  • 95% @ 45°C (non-condensing)

Certifications
  • CE, FCC Class B
Description

Intel® 13th Gen. Raptor Lake Processors High Computing Performance

The Giada PC613, equipped with Intel® Raptor Lake Core i3-1315U/i5-1335U processors, ushers in a new era of both performance and efficiency. These processors seamlessly integrate high-performance cores with efficient ones, collaborating to optimize power consumption without sacrificing processing power.

Supporting 8K Display

 The PC613 offers support for a maximum 8K display through its 80-pin JAE connector. Additionally, on the front panel, there is an HDMI 2.0a port available for connecting a secondary 4K@60Hz display. This makes it an optimal selection for large-format

Intel® vPro Technology

Intel® Hardware Shield delivers integrated hardware-based PC protection, which includes below-the-OS security, application and data protection, and advanced threat detection.

I/O Port Configuration
