Description / PCIE-Q870-i2 Full-size PICMG i7/i5/i3/Pentium/Celeron

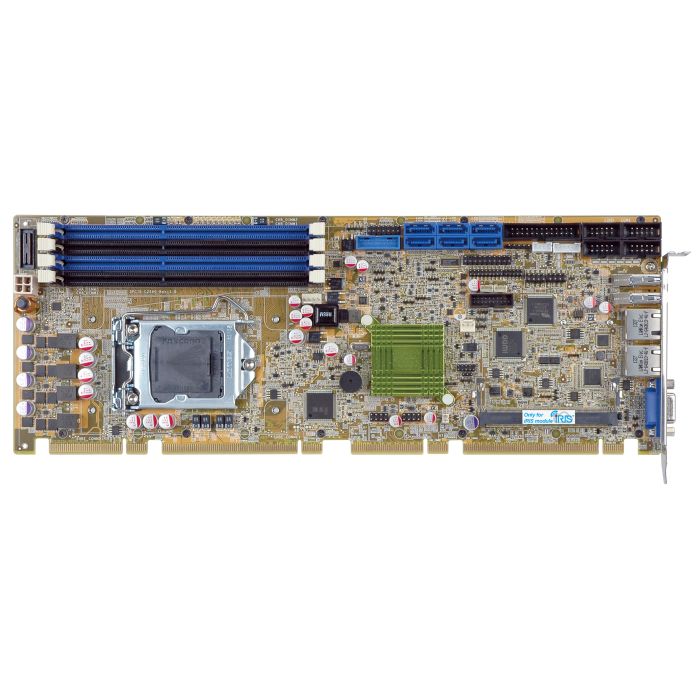

Full-size PICMG 1.3 CPU card supports LGA 1150 Intel® Core™ i7/i5/i3, Pentium® and Celeron® CPU per Intel® Q87

· PICMG 1.3 full-size graphic grade solution

· LGA 1150 Intel® 4th generation Core™ i7/i5/i3, Pentium® or Celeron® processor supported

· Four 240-pin 1600/1333 MHz dual-channel DDR3 DIMMs support up to 32 GB memory

· Supports dual independent display by VGA & iDP interfaces

· Supports PCIe Mini devices and mSATA via PCIe Mini socket

· Intel® PCIe GbE with Intel® AMT 9.0 support

· Supports RAID function via SATA 6Gb/s

· TPM v1.2 hardware security function supported by TPM module

· Stiffener bars

· IEI jumper-less function

· Supports IPMI 2.0 via iRIS-2400 module

Brand

IEI Integration Corp.

Specifications

Spec Item	Description
CPU Cooler
CPU Cooler	CF-1150SB-R11 CF-1150SC-R10 CF-1150SD-R10
Environment
Humidity	5% ~ 95% non-condensing
Operating Temperature	-20°C ~ 60°C
Expansion Slots
Expansion Slots	PCIe Mini slot
I/O Interface
Audio	Supports by IEI AC-KIT-892HD audio kit
Digital I/O	8-bit Digital I/O (4-bit input/4-bit output)
Display	Dual display supported VGA (up to 1920x1200 @ 60 Hz) iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160 @60 Hz)
Ethernet	LAN1: Intel® I217LM with Intel® AMT 9.0 support LAN2: Intel® I210-AT PCIe controller with NCSI support
I/O Interface
I/O Interface	1 x LPT
	2 x Internal USB 3.0
	4 x Internal USB 2.0
	1 x Internal RS-422/485
	4 x Internal RS-232
	2 x USB 3.0
Option
iRIS	1 x iRIS-2400 slot
Power
Power consumption	5V@3.55A, 12V@0.37A, Vcore_12V@7.61A, 3.3V@1.55A, 5VSB@0.13A (Intel® Core™ i7-4770K 3.90 GHz CPU with 16GB (4x4GB) 1333MHz DDR3 memory)
Storage
Storage	1 x mSATA (colay SATA port 6) (support SATA 6GB/s signal only) 6 x SATA 6GB/s (RAID 0, 1, 5, 10 supported)
System
Chipset	Intel® Q87
CPU	Intel® 4th generation Core™ i7/i5/i3, Pentium® or Celeron® processor supported
CPU Socket	LGA1150
Memory Max.	Four 240-pin 1600/1333MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMMs support up to 32GB
Watchdog Timer
Watchdog Timer	Software programmable and supports 1~255 sec. system reset
