Description / PM-LX2 AMD Geode LX 800 CPU on-board PC/104 Module

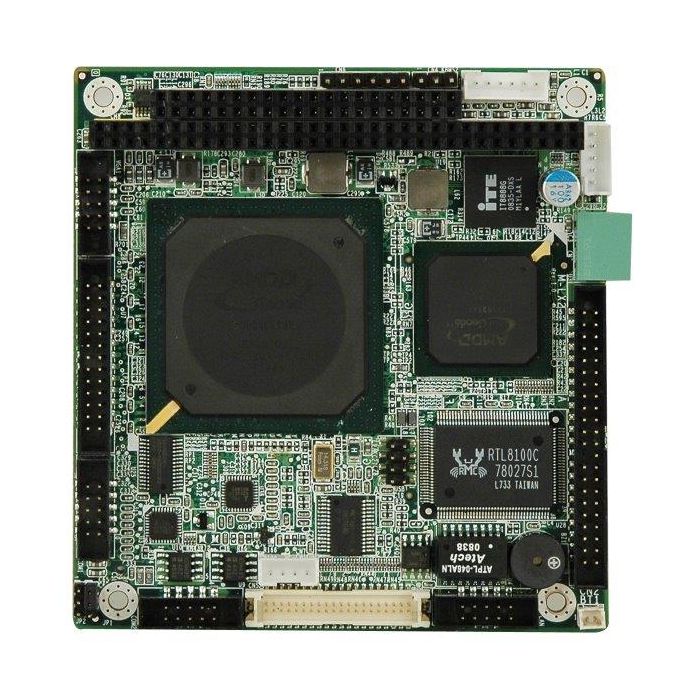

AMD Geode™ LX 800 CPU on-board PC/104 Module

· 5V@1.13A(LX800-500Mhz, DDR 400/1G RAM)

Brand

IEI Integration Corp.

Specifications

Spec Item	Description
CPU Cooler
CPU Cooler	Heatsink
Display
Display	Dual display supported 1 x VGA 1 x 24-bit TTL
Environment
Humidity	5% ~ 95%, non-condensing
Operating Temperature	PM-LX2-800: 0°C ~ 60°C PM-LX2-800W: -40°C ~ 70°C
Expansion Slots
Expansion Slots	1 x PC-104
FSB
FSB	N/A
I/O Interface
Ethernet	10/100Mbps LAN by Realtek RTL8100C
I/O Interface
I/O Interface	1 x RS-422/485
	2 x RS-232
	1 x LPT
	2 x USB 2.0
Power
Power consumption	5V@1.13A (AMD Geode™ LX 800 with one 1 GB 400 MHz DDR memory)
Storage
Storage	1 x Slim FDD 1 x IDE 1 x CF Type II
System
Chipset	AMD CS5536
CPU	AMD Geode™ LX 800 (500 MHz) processor
CPU Socket	On board
Memory Max.	One 200-pin 400 MHz DDR SDRAM SO-DIMM supports up to 1 GB
Watchdog Timer
Watchdog Timer	Software programmable and supports 1~255 sec. system reset
