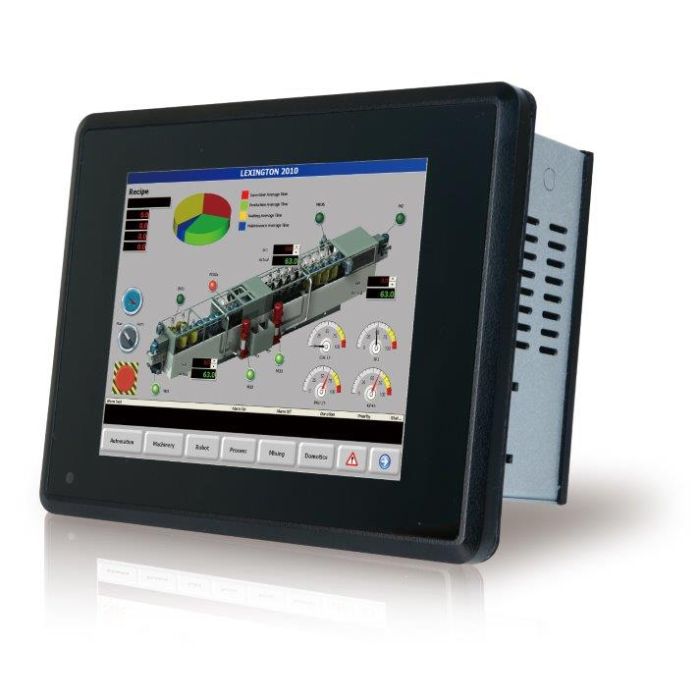

PPC-F06B-BT Fanless Intel Bay Trail Panel PC
View larger image
IEI Integration Corp.
PPC-F06B-BT Fanless Intel Bay Trail Panel PC
5.7 inch 450 cd/m2 VGA Panel PC with Intel® Celeron® Processor N2807
SKU
PPC-F06B-BT
Have a Question about this product?
Description /
PPC-F06B-BT Fanless Intel Bay Trail Panel PC
5.7 inch 450 cd/m2 VGA Panel PC with Intel® Celeron® Processor N2807
● 5.7”, 8” and 10.4” fanless industrial panel PC
● 2.0 GHz Intel® Celeron® J1900 quad-core processor or 1.58 GHz Intel® Celeron® N2807 dual-core processor
● Low power consumption DDR3L memory supported
● IP 65 compliant front panel
● 9 V~30 V wide DC input
● mSATA SSD suppoted
● Dual GbE for backup
● -10°C~50°C extended operating temperature
More Information
Brand
IEI Integration Corp.
Specifications
Spec Item Description
Display
Backlight MTBF(hrs) 50000
Brightness(cd/m2) 550
Contrast Ratio 800 : 1
LCD Size 5.7”(4:3)
Max Resolution 640(W) x 480(H)
Environment
Humidity 10% to 95% (non-condensing)
IP Level Front IP 65
Operating Temperature -10°C~50°C (14°F~122°F)
Safety & EMC CE & FCC Class A certified
Storage Temperature -20°C~60°C (-4°F~140°F)
Expansion Slots
Expansion Slots 1 x Full-size PCIe Mini slot (with mSATA, PCIe/USB signal)
I/O Interface
I/O Ports and Switches 1 x RJ-45 LAN port 1 x RS-232 COM port (DB-9 connector) (RI/5V/12V) 1 x RS-422/485 2 x USB 3.0 2 x USB 2.0 1 x 9 V~30 V DC lockable DC jack (2-pin) 1 x Audio port (line-out) 1 x Power switch
RAM 2GB DDR3L 1600MHz on-board RAM (system max. 4GB, by MOQ=300pcs)
LCD
LCD Color 262K
Pixel Pitch (mm) 0.18mm x 0.18mm
Viewing Angle (H-V) 160° / 140°
Physical Characteristics
Color Black C
Construction Aluminum front bezel
Cutout Dimensions 157.5 x 115.4
Dimensions (LxWxH) (mm) 136.4 x 178.5 x 56.3
Mounting Stand, panel mount, rack mount, VESA 75x75
Power
Power adapter 9V~30VDC
System
CPU Intel® Celeron® N2807 dual-core processor, 1.58GHz
SSD mSATA
Touch
Touch Controller PenMount DMC9000
Touch Screen 4-wire resistive type flat touch window
Weight
Weight 0.89Kg
I/O Interface
I/O Interface 1 x AT/ATX Switch
2 x USB3.0
2 x USB2.0
1 x Reset Button
1 x Power In((9-30V Lockable power jack))
1 x RS-232(((DB-9)))
1 x Power Switch
1 x LAN((RJ-45))
1 x Audio(((line-out)))
1 x RS-422/485
Description
5.7 inch 450 cd/m2 VGA Panel PC with Intel® Celeron® Processor N2807
● 5.7”, 8” and 10.4” fanless industrial panel PC
● 2.0 GHz Intel® Celeron® J1900 quad-core processor or 1.58 GHz Intel® Celeron® N2807 dual-core processor
● Low power consumption DDR3L memory supported
● IP 65 compliant front panel
● 9 V~30 V wide DC input
● mSATA SSD suppoted
● Dual GbE for backup
● -10°C~50°C extended operating temperature
