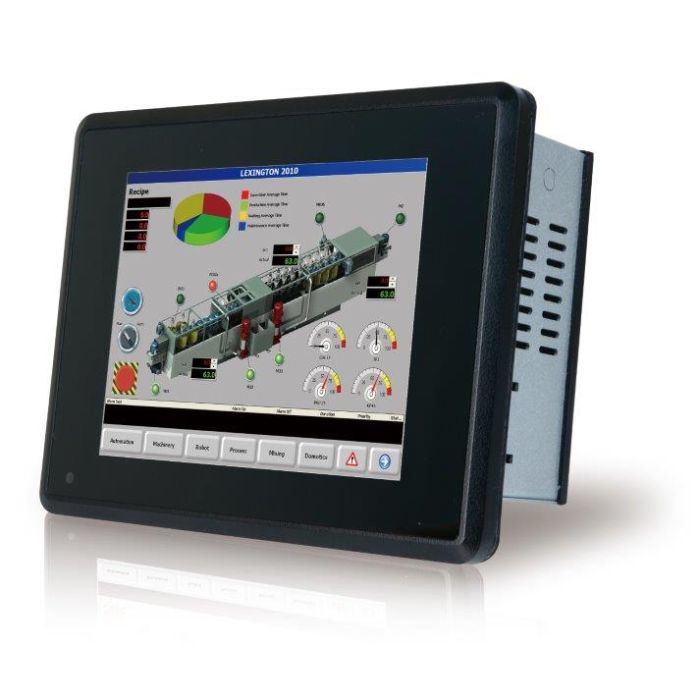

PPC-F08B-BT 8" Fanless J1900 Panel PC
View larger image
IEI Integration Corp.
PPC-F08B-BT 8" Fanless J1900 Panel PC
8 inch 500 cd/m2 SVGA Panel PC with Intel® Celeron® Processor J1900
SKU
PPC-F08B-BT
Have a Question about this product?
Description /
PPC-F08B-BT 8" Fanless J1900 Panel PC
8 inch 500 cd/m2 SVGA Panel PC with Intel® Celeron® Processor J1900
● 5.7”, 8” and 10.4” fanless industrial panel PC
● 2.0 GHz Intel® Celeron® J1900 quad-core processor or 1.58 GHz Intel® Celeron® N2807 dual-core processor
● Low power consumption DDR3L memory supported
● IP 65 compliant front panel
● 9 V~30 V wide DC input
● mSATA SSD suppoted
● Dual GbE for backup
● -10°C~50°C extended operating temperature
More Information
Brand
IEI Integration Corp.
Specifications
Spec Item Description
Display
Backlight MTBF(hrs) 50000
Brightness(cd/m2) 500
Contrast Ratio 500:1
LCD Size 8”(4:3)
Max Resolution 800(W) x 600(H)
Environment
Humidity 10% to 95% (non-condensing)
IP Level Front IP 65
Operating Temperature -10°C~50°C (14°F~122°F)
Safety & EMC CE & FCC Class A certified
Storage Temperature -20°C~60°C (-4°F~140°F)
Expansion Slots
Expansion Slots 1 x Full-size PCIe Mini slot (with mSATA/PCIe/USB signal) 1 x Full-size/Half-size PCIe Mini slot (PCIe signal only)
I/O Interface
I/O Ports and Switches 1 x RJ-45 LAN port 1 x RS-232 COM port (DB-9 connector) (RI/5V/12V) 1 x RS-422/485 2 x USB 3.0 1 x 9 V~30 V DC lockable DC jack (2-pin) 1 x Audio port (line-out) 1 x Power switch
RAM 2 x 204-pin DDR3L SO-DIMM slots (max. 8GB)
LCD
LCD Color 16.2M
Pixel Pitch (mm) 0.2025 (H) x 0.0675 (V)
Viewing Angle (H-V) 140° / 120°
Physical Characteristics
Color Black C
Construction Aluminum front bezel
Cutout Dimensions 207 x 154
Dimensions (LxWxH) (mm) 182.2 x 222.2 x 44
Mounting Stand, panel mount, rack mount, VESA 75x75
Power
Power adapter 9V~30VDC
System
CPU Intel® Celeron® J1900 quad-core on-board SoC, 2GHz
SSD mSATA
Touch
Touch Screen 5-wire resistive type flat touchscreen
Weight
Weight 1.17 kg
I/O Interface
I/O Interface 1 x AT/ATX Switch
1 x Audio(line-out)
2 x LAN(GbE)
1 x Power In(9-30V Lockable power jack)
1 x Power Switch
1 x RS-232(RJ-45)
1 x RS-422/485(DB-9)
1 x Reset Button
2 x USB3.0
Description
8 inch 500 cd/m2 SVGA Panel PC with Intel® Celeron® Processor J1900
● 5.7”, 8” and 10.4” fanless industrial panel PC
● 2.0 GHz Intel® Celeron® J1900 quad-core processor or 1.58 GHz Intel® Celeron® N2807 dual-core processor
● Low power consumption DDR3L memory supported
● IP 65 compliant front panel
● 9 V~30 V wide DC input
● mSATA SSD suppoted
● Dual GbE for backup
● -10°C~50°C extended operating temperature
