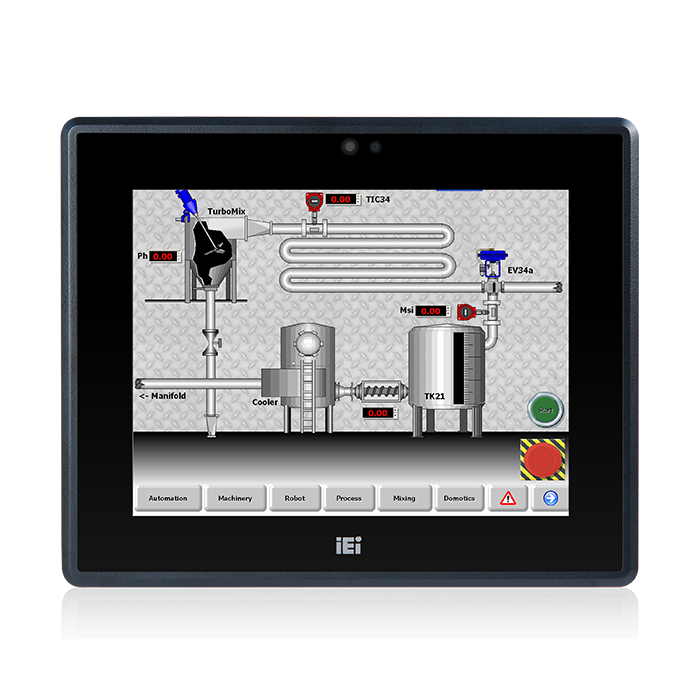

PPC-F10B-BT 10.4" Fanless J1900 Panel PC
10.4 inch 400 cd/m2 SVGA Panel PC with Intel Celeron Processor J1900
10.4” fanless industrial panel PC
2.0 GHz Intel Celeron J1900 quad-core processor
Low power consumption DDR3L memory supported
IP65-compliant front panel
9 V~30 V wide DC input
mSATA SSD supported
Dual GbE for backup
-10°C~50°C extended operating temperature
More Information
Brand
IEI Integration Corp.
Specifications
Spec Item
Description
Display
Backlight MTBF(hrs)
50000
Brightness(cd/m2)
500
Contrast Ratio
500:1
LCD Size
8”(4:3)
Max Resolution
800(W) x 600(H)
Environment
Humidity
10% to 95% (non-condensing)
IP Level
Front IP 65
Operating Temperature
-10°C~50°C (14°F~122°F)
Safety & EMC
CE & FCC Class A certified
Storage Temperature
-20°C~60°C (-4°F~140°F)
Expansion Slots
Expansion Slots
1 x Full-size PCIe Mini slot (with mSATA/PCIe/USB signal) 1 x Full-size/Half-size PCIe Mini slot (PCIe signal only)
I/O Interface
I/O Ports and Switches
1 x RJ-45 LAN port 1 x RS-232 COM port (DB-9 connector) (RI/5V/12V) 1 x RS-422/485 2 x USB 3.0 1 x 9 V~30 V DC lockable DC jack (2-pin) 1 x Audio port (line-out) 1 x Power switch
1 x Full-size PCIe Mini slot (with mSATA/PCIe/USB signal) 1 x Full-size/Half-size PCIe Mini slot (PCIe signal only)
I/O Interface
I/O Ports and Switches
1 x RJ-45 LAN port 1 x RS-232 COM port (DB-9 connector) (RI/5V/12V) 1 x RS-422/485 2 x USB 3.0 2 x USB 2.0 1 x 9 V~30 V DC lockable DC jack (2-pin) 1 x Audio port (line-out) 1 x Power switch
RAM
2 x 204-pin DDR3L SO-DIMM slots (max. 8GB)
LCD
LCD Color
16.2M
Pixel Pitch (mm)
0.264 (H) x 0.264 (V)
Viewing Angle (H-V)
160° / 140°
Physical Characteristics
Description
10.4 inch 400 cd/m2 SVGA Panel PC with Intel Celeron Processor J1900
