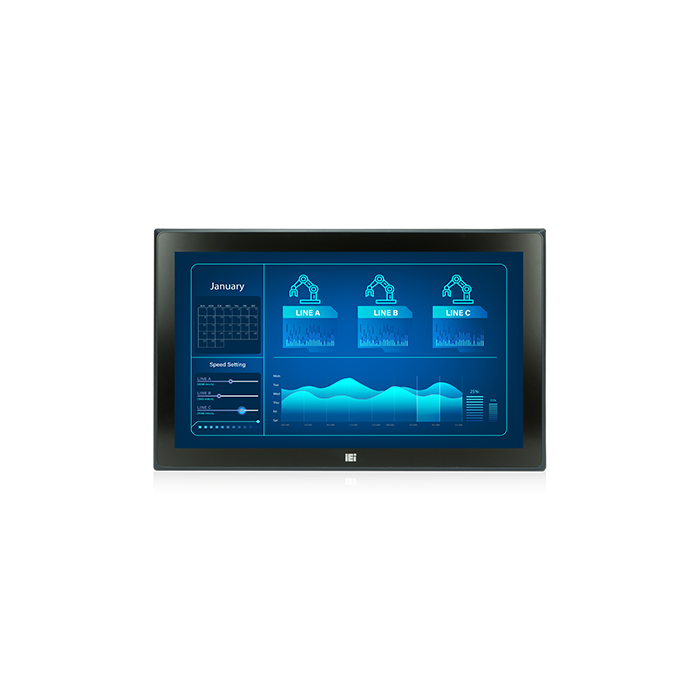

PPC-FW19D-ULT5 18.5” IP66 Panel PC

IEI Integration Corp.

18.5” 8th gen Core i5/Celeron IP66 Panel PC

In stock

SKU
PPC-FW19D-ULT5

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / PPC-FW19D-ULT5 18.5” IP66 Panel PC

18.5” Panel PC with 8th gen Intel® Whiskey Lake-U processors
Low power consumption and fanless design
IP66-rated front panel for water and dust resistance
Touch screen with anti-UV / anti-glare coating
Support PoE PD power
Support NVMe SSD

More Information

Brand IEI Integration Corp.
Specifications
Display
LCD Size 18.5”
Brightness(cd/m2) 400
Max Resolution 1366 x 768
Contrast Ratio 1000:1
Backlight MTBF(hrs) 50000
System
Cooling method / System Fan Fanless
CPU 8th Generation Intel® Core™ i5-8365U 4.10GHz
8th Generation Intel® Celeron® 4305U 2.20GHz
Chipset Intel® Whiskey Lake-U
Memory Ext. 2 x 260-pin 2400 MHz dual-channel DDR4 unbuffered SO-DIMM
Memory Max. 32GB
Storage 2.5” HDD/SSD SATA 3(6.0Gb/s) bay
I/O Interface
Ethernet 2x Intel® I211
1x Intel® I219
Audio Codec ALC888S
Power
Input +12VDC
Power adapter 12V @ 8A(96W)
Power consumption 57W
Environment
Operating Temperature -10°C ~ 50°C (with air flow)
Operating Vibration 5~17Hz, 0.1 double amplitude displacement 17~640Hz 1.5G acceleration peak to peak
Operating Shock 10G acceleration part to part (11ms)
Safety & EMC CE, FCC
Humidity 10% ~ 95% (non-condensing)
Storage Temperature -20°C ~ 60°C
IP Level Front panel IP66
Physical Characteristics
Color PANTONE 296 C
Mounting Wall mount, Panel mount, Rack mount
Dimensions (LxWxH) (mm) 469.8 x 289.2 x 76.9
Net Weight 6.9kg
Construction Front Panel Aluminum
Cutout Dimensions 447.8 x 257.2
Expansion Slots
Expansion Slots M.2 2230 A-Key(PCIe x1, USB 2.0; support Wi-Fi, BT)
M.2 2280 M-Key(PCIe x4; support NVMe SSD)
LCD
LCD Color 16.7M
Pixel Pitch (mm) 0.3 x 0.3
Viewing Angle (H-V) 170°/160°
Touch
Touch Screen PCAP 10-point
Touch Controller EETI
Other Features
TPM TPM 2.0(Optional)
I/O Interface
I/O Interface 1 x AT/ATX Switch
  1 x Clear CMOS
  1 x DC Input Jack(12V Din 4Pin/lock)
  1 x HDMI
  3 x LAN(2 x Support PoE(IEEE 802.3at/bt, optional))
  1 x Line out
  1 x Power Switch(with LDE(Blue))
  1 x Reset Button
  2 x RS-232(1 x RS-232/422/485, 1 x RS-232)
  4 x USB 3.2 Gen2x1
Description

18.5” Panel PC with 8th gen Intel® Whiskey Lake-U processors
Low power consumption and fanless design
IP66-rated front panel for water and dust resistance
Touch screen with anti-UV / anti-glare coating
Support PoE PD power
Support NVMe SSD
pdf
Datasheet
