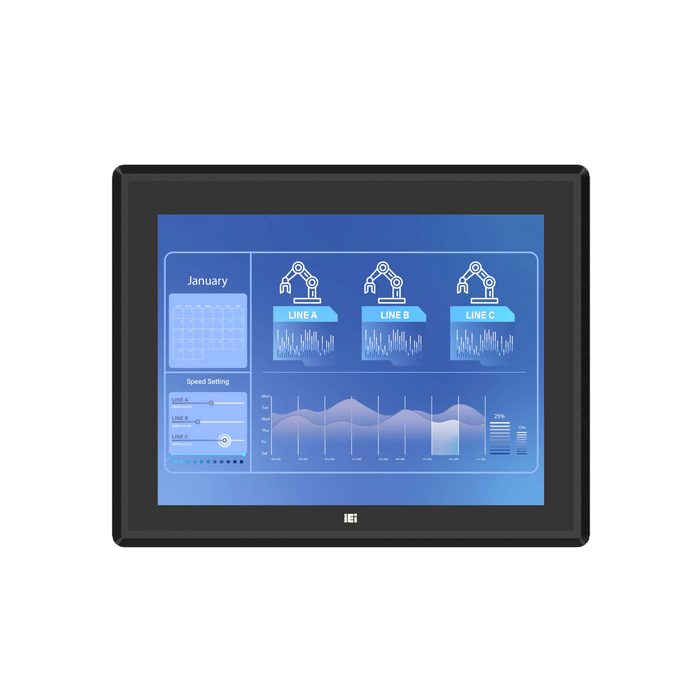

PPC2-C15-ADL 15” High Performance Panel PC IP65 Front
IEI Integration Corp.
PPC2-C15-ADL 15” High Performance Panel PC IP65 Front
15" High Performance Panel PC IP65 Front with 12th Gen Intel Core i9/i7/i5/i3 and Pentium Processor
Key Features:
- 12th Gen Intel® Processors Platform
- IP65 Front
- PCIe Gen4 x16 slot (x16 signal)
- Anti-glare and Anti-UV PCAP
- Support Gloved and Wet Hand Operation
- Newly Designed Panel Mount Kit
- New Graphical BIOS Interface
-
SKU
-
PPC2-C15-ADL-xx/4G-R10
Have a Question about this product?
Description /
PPC2-C15-ADL 15” High Performance Panel PC IP65 Front
Key Features:
- 12th Gen Intel® Processors Platform
- IP65 Front
- PCIe Gen4 x16 slot (x16 signal)
- Anti-glare and Anti-UV PCAP
- Support Gloved and Wet Hand Operation
- Newly Designed Panel Mount Kit
- New Graphical BIOS Interface
More Information
| Brand |
IEI Integration Corp. |
| Specifications |
| System |
| CPU |
12th Gen Intel® Core™ i9/i7/i5/i3 and Pentium® Processor (LGA1700) TDP 65W |
| Chipset |
Intel H610 |
| Memory Ext. |
Two 260-pin 3200 MHz Dual-Channel DDR4 SO-DIMM (MAX:64GB) |
| Storage |
1 x 2.5” SATA HDD bay (Height limit 7.5mm) |
| I/O Interface |
| Ethernet |
2 x 2.5GbE LAN via Intel® I225V |
| Expansion |
1 x PCIe Gen4 x 16 Slot with x16 Signal
1 x M.2 E-Key 2242 (PCIe Gen3 x 1 + CNVI)
1 x M.2 M Key 2242/2280 NVMe (PCIe Gen3 x 4) |
| Power |
| Power Supply |
- AC input ATX power supply
- 250 W power supply
- Input: 100V~240V AC, 47Hz-63Hz
- Output (max.): 3.3V@6A, 5V@12A, 12V@17A, -12V@0.5A,+5Vsb@2A
- Support AT/ATX mode
- ErP/EuP Compliant
|
| Environment |
| Operating Temperature |
-10ºC ~ 60ºC |
| Safety & EMC |
CE, FCC Class A, UKCA |
| Humidity |
10% ~ 95%@40ºC, non-condensing |
| Storage Temperature |
-20ºC ~ 60ºC |
| IP Level |
IP 65 compliant front panel |
| Physical Characteristics |
| Color |
Black |
| Mounting |
VESA 100, Panel, Wall, Rack, Stand and Arm |
| Dimensions (LxWxH) (mm) |
378.5 x 303 x 76.16 |
| Net Weight |
5.715kg |
| Construction |
Aluminum front cover and sheet metal rear cover |
| LCD |
| Size |
15” (4:3) |
| Resolution |
1024 (W) x 768 (H) |
| Brightness (cd/m2) |
400 cd/m² |
| Contrast Ratio |
800 : 1 |
| LCD Color |
16.2M |
| Pixel Pitch (mm) |
0.297 x 0.297 |
| Viewing Angle (H-V) |
160°/150° |
| Backlight MTBF |
70,000 hours |
| Touch |
| Touch Screen |
- Multi-point projected capacitive type (anti-UV / anti-glare coating,support gloves)
- Surface hardness: 7H
|
| Touch Controller |
EETI 80 series |
| Other Features |
| System Cooling |
Smart Fan (2xCPU FAN, 2xSYS FAN) |
| TPM |
Intel® Platform Trust Technology |
| I/O Interface |
| I/O Interface |
1 x AT/ATX switch |
| |
1 x Clear CMOS Button |
| |
1 x HDMI (2.0, up to 3840*2160 @60Hz) |
| |
2 x LAN (Intel® I225V 2.5GbE controller) |
| |
1 x Power Switch |
| |
1 x Reset Button |
| |
4 x RS-232 (by DB9) |
| |
1 x RS-232/422/485 (by DB9) |
| |
2 x USB 2.0 (Type-A) |
| |
2 x USB 3.2 Gen1x1 (Type-A, 5Gb/s) |
| |
2 x USB 3.2 Gen2x1 (Type-A, 10Gb/s) |
| OS Support |
| OS Support |
Windows 10 IoT
Linux |
|
| Description |
Key Features:
- 12th Gen Intel® Processors Platform
- IP65 Front
- PCIe Gen4 x16 slot (x16 signal)
- Anti-glare and Anti-UV PCAP
- Support Gloved and Wet Hand Operation
- Newly Designed Panel Mount Kit
- New Graphical BIOS Interface
|
