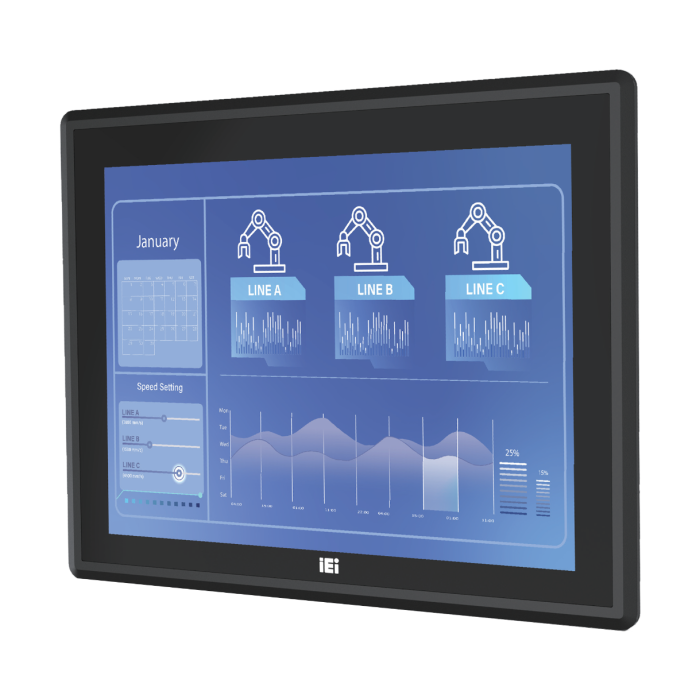

PPC2-C150-ADLP 15" Fanless IP65 Front Panel PC

IEI Integration Corp.

15.0”, 450nit, 1024x768, Intel Alder Lake-P Processor, 8GB on-board RAM, HDMI, 12V DC, PCAP touchscreen

Key Features:

  • Fanless
  • Intel Alder Lake-P Platform
  • On board 8GB RAM (no need to worry about vibration issues)
  • 4:3 display; 1024 x 768 resolution
  • IP65-compliant front panel

In stock

SKU
PPC2-C150-ADLP-ix/8G-R10

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / PPC2-C150-ADLP 15" Fanless IP65 Front Panel PC

15.0”, 450 cd/cm², 1024x768, Panel PC with Intel Alder Lake-P Processor, 8GB on-board RAM, HDMI output, black, 12V DC input, projected capacitive touchscreen with AG

Key Features:

  • Fanless
  • Intel Alder Lake-P Platform
  • On board 8GB RAM (no need to worry about vibration issues)
  • 4:3 display; 1024 x 768 resolution
  • IP65-compliant front panel

More Information

brand IEI Integration Corp.
Specifications
Model PPC2-C150-ADLP
LCD Display 15.0" (4:3)
Resolution 1024 (W) x 768 (H)
Brightness 450 cd/cm²
Contrast Ratio 800:1
LCD Color 16.2M
Viewing Angle (H-V) 160°/150°
Backlight MTBF 50,000 hours
CPU (SoC) 12th Generation Intel® Core™ i7/i5/i3 Processor ( Alder Lake-P)
Memory Dual-channel 8GB LPDDR4x on-board
Touchscreen Multi-point projected capacitive type (anti-UV / anti-glare coating, support gloves)
Surface hardness: ≥7H
Touch Controller Projected capacitive type IC: EETI 80
Ethernet LAN1: Intel®  I225V 2.5GbE controller
LAN2: Intel®  I225-LM 2.5GbE controller (support Intel® AMT )
Expansion 1 x M.2 M key 2242 (PCIe Gen4 x 4)
1 x M.2 M key 2280 (PCIe Gen4 x 4)
1 x M.2 A key 2230 (PCIe Gen3 x1 + USB 2.0)
Mounting VESA 100, Panel, Wall, Rack, Stand and Arm
Construction Material Aluminium front cover and sheet metal rear cover
Enclosure Color Silver+Black
I/O Ports, Switch 2 x RS-232 by DB9
1 x HDMI output
2 x RS-232/422/485 by DB9
1 x 12V DC Jack
2 x 2.5GbE RJ45
1 x Power button
2 x USB 3.2 Gen2
1 x Reset button
2 x USB 3.2 Gen1
1 x AT/ATX switch
1 x USB 2.0
Thermal Solution Fanless
Power Input DC 12V
TPM Intel® Platform Trust Technology
Watchdog Timer Software Programmable support 1~255 sec. system reset
Operating Temperature
(with airflow)		 -10ºC ~ 50ºC
Storage Temperature -20ºC ~ 60ºC
Humidity 10% ~ 95%@40ºC, non-condensing
IP Level IP 65 compliant front panel
Safety and EMC CE/FCC Class A/UKCA
Operation Vibration MIL-STD-810G 514.6C-1
Operation Shock Half-sine wave shock 5G; 11ms; 100 shocks per axis
Dimensions (H x W x D) 378.50 x 303.00 x 61.00
Net Weight TBD
ErP ErP 2009/125/EC
OS Windows 10/11 IoT, Linux
Packing List
1 x Power Cord 1 x Power Adapter
1 x Panel Mount Kit 1 x QIG
Ordering Information
PPC2-C150-ADLP-i7/8G-R10 15.0” 450 cd/cm² 1024x768 Panel PC with Intel® i7-1260P Processor, 8GB LPDDR4x on-board, HDMI output, black, 12V DC input, projected capacitive touchscreen with AG, R10
PPC2-C150-ADLP-i5/8G-R10 15.0” 450 cd/cm² 1024x768 Panel PC with Intel® i5-1240P Processor, 8GB LPDDR4x on-board, HDMI output, black, 12V DC input, projected capacitive touchscreen with AG, R10
PPC2-C150-ADLP-i3/8G-R10 15.0” 450 cd/cm² 1024x768 Panel PC with Intel® i3-1220P Processor, 8GB LPDDR4x on-board, HDMI output, black, 12V DC input, projected capacitive touchscreen with AG, R10
Options
Item Part No Description
Arm ARM-11-RS VESA 75/100 Desk Arm
Stand STAND-C12-R10 VESA 75/100 Easy Stand
Wall Mount Kit AFLWK-19B Monitor Wall Mount kit
OS WIN10-IoTE2021-H-RS
WIN10-IoTE2021-V-RS		 Win10 IoT Ent LTSC 2021 MultiLang High End
Win10 IoT Ent LTSC 2021 MultiLang Value
Description

15.0”, 450 cd/cm², 1024x768, Panel PC with Intel Alder Lake-P Processor, 8GB on-board RAM, HDMI output, black, 12V DC input, projected capacitive touchscreen with AG

Key Features:

  • Fanless
  • Intel Alder Lake-P Platform
  • On board 8GB RAM (no need to worry about vibration issues)
  • 4:3 display; 1024 x 768 resolution
  • IP65-compliant front panel
