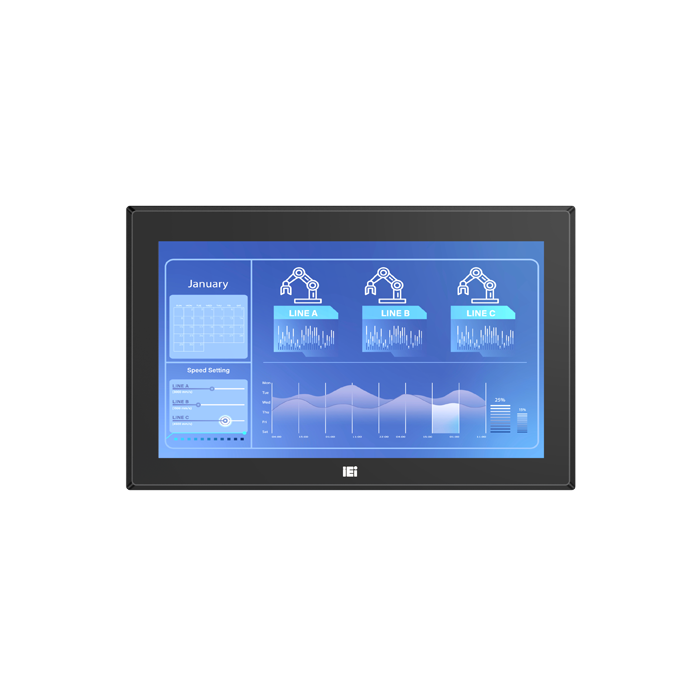

PPC2-CW215A-ADLP 21.5” Fanless Panel PC 12/13th Gen Core
IEI Integration Corp.
PPC2-CW215A-ADLP 21.5” Fanless Panel PC 12/13th Gen Core
21.5” Fanless Panel PC with 12th/13th Gen Intel Core and IP65 Front
Key Features:
12th/13th Gen Intel® Core™ Mobile i7/i5/i3 Processors
Anti-AG and Anti-UV FHD PCAP touch screen
Support Dual M.2 M-key slots
Dual channel SO-DIMM DDR4-3200
Optional Wi-Fi 6E and Bluetooth®5.2
Support IPMI 2.0 Remote Management
In stock
SKU
PPC2-CW215A-ADLP
Have a Question about this product?
Description /
PPC2-CW215A-ADLP 21.5” Fanless Panel PC 12/13th Gen Core
The PPC2-CW215A-ADLP from IEI is a 21.5" industrial-grade panel PC, powered by Intel® Alder Lake processors, designed for demanding applications. It features a full HD multi-touch display, fanless design for reliability, and multiple I/O options for flexible connectivity. Its robust construction and high performance make it ideal for manufacturing, automation, and other industrial environments.
More Information
brand
IEI Integration Corp.
Specifications
Hardware Spec.
System
CPU
12th Gen Intel® Core™ Mobile i7/i5/i3 Processors (Alder Lake-P) 13th Gen Intel® Core™ Mobile i7/i5/i3 Processors (Raptor Lake-P)
Memory Ext.
Dual channel SO-DIMM DDR4-3200 (Max. 64GB) (Pre-installed 1 x 8GB)
Storage
1 x 2.5” SATA HDD/SSD bay (optional)
Communication
Wireless
IEEE 802.11ax 2T2R module (Wi-Fi 6E) with BT v5.2(optional)
2 x M.2 M Key 2280 (PCle Gen 4 x4) 1 x M.2 B KEY (PCIe x1 or SATA) for IPMI 1 x M.2 2230 E Key Slot support Vpro (PCIe 3.0 x1 + USB2.0 x1 + CNVI)
Power
Power Supply
12V DC
Environment
Operating Temperature
-20°C ~ 60°C
Safety & EMC
CE, FCC (Class A)
Humidity
10% ~ 90% (non-condensing)
Storage Temperature
-20°C ~ 70°C
IP Level
IP 65 compliant front panel
Physical Characteristics
Colour
Black
Mounting
Panel, Wall, Stand and Arm VESA 75 /100mm
LCD
Size
21.5”
Resolution
1920 x 1080 (16:9)
Brightness (cd/m2)
350 cd/m²
Contrast Ratio
1000: 1
LCD Color
16.2M
Viewing Angle (H-V)
178°/178°
Backlight MTBF
50000 hours
Touch
Touch Screen
PCAP with USB interface (anti-UV/AR coating)
Touch Controller
EXC81W32
I/O Interface
I/O Interface
1 x RS-232 (by DB9)
1 x RS-232/422/485 (by DB9)
4 x USB 3.2 Gen1x1 (Type-A (5Gb/s))
1 x HDMI™ (2.0 (up to 3840 x 2160 @60Hz))
2 x LAN (Intel® I226 2.5GbE controller)
1 x DC Input Jack (12V)
1 x Reset Button
1 x AT/ATX switch
1 x Clear CMOS Button
Ordering Information
PPC2-CW215A-ADLP-i7/8G-R11
21.5" 350cd/m² 1920x1080 Fanless Panel PC with 12th Generation Intel® Core™ i7-1260P on-board Processor,TDP 28W,1 x 8GB DDR4, PCAP touch,12V DC,Ver.A,R11
PPC2-CW215A-ADLP-i5/8G-R11
21.5" 350cd/m² 1920x1080 Fanless Panel PC with 12th Generation Intel® Core™ i5-1240P on-board Processor,TDP 28W,1 x 8GB DDR4, PCAP touch,12V DC,Ver.A,R11
PPC2-CW215A-ADLP-i3/8G-R11
21.5" 350cd/m² 1920x1080 Fanless Panel PC with 12th Generation Intel® Core™ i3-1220P on-board Processor,TDP 28W,1 x 8GB DDR4, PCAP touch,12V DC,Ver.A,R11
PPC2-CW215A-ADLP-Ri7E/8G-R11
21.5" 350cd/m² 1920x1080 Fanless Panel PC with 13th Generation Intel® Core™ i7-1370PE on-board Processor,TDP 28W, 1 x 8GB DDR4 RAM, PCAP touch,12V DC,Ver.A,R11
PPC2-CW215A-ADLP-Ri5E/8G-R11
21.5" 350cd/m² 1920x1080 Fanless Panel PC with 13th Generation Intel® Core™ i5-1340PE on-board Processor,TDP 28W,1 x 8GB DDR4 RAM, PCAP touch,12V DC,Ver.A,R11
PPC2-CW215A-ADLP-Ri3E/8G-R11
21.5" 350cd/m² 1920x1080 Fanless Panel PC with 13th Generation Intel® Core™ i3-1320PE on-board Processor,TDP 28W, 1 x 8GB DDR4 RAM, PCAP touch,12V DC,Ver.A,R11
Package Contents
Package Contents
1 x PPC2-CW215A-ADLP
1 x Power Cord
1 x Power Adapter
1 x Package
1 x QIG
Description
The PPC2-CW215A-ADLP from IEI is a 21.5" industrial-grade panel PC, powered by Intel® Alder Lake processors, designed for demanding applications. It features a full HD multi-touch display, fanless design for reliability, and multiple I/O options for flexible connectivity. Its robust construction and high performance make it ideal for manufacturing, automation, and other industrial environments.
