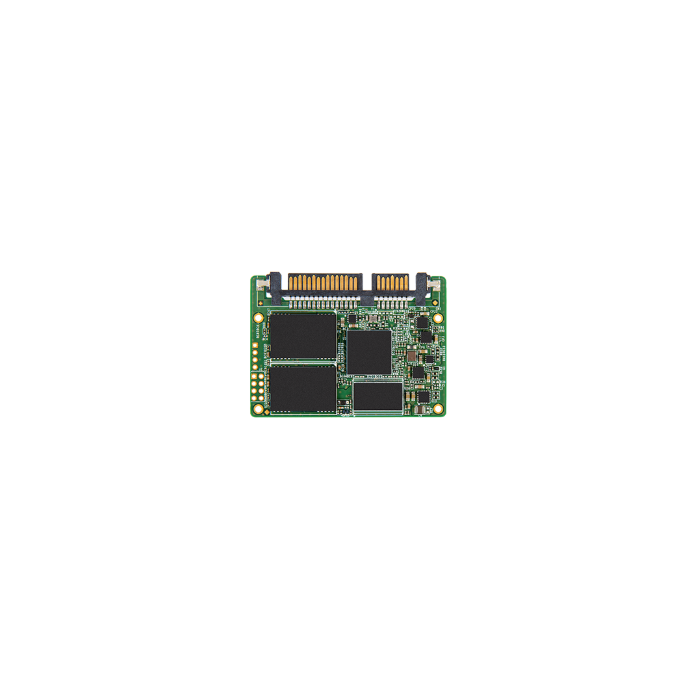

HSD450T SATA III, Half-slim SSD

Equipped with a SATA III 6Gb/s interface and a powerful controller, Transcend's HSD450T Half-Slim SSD delivers outstanding transfer speeds in a compact form factor.

In stock

SKU
TSxxGHSD450T

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / HSD450T SATA III, Half-slim SSD

Transcend's HSD450T Half-Slim SSD offers exceptional transfer speeds in a small package thanks to a SATA III 6Gb/s interface and a potent controller. The HSD450T, which is best suited to read-heavy applications and space-constrained mobile devices like industrial control systems, medical equipment, mobile devices, and POS terminals, offers outstanding 4K random read and write performance as well as unmatched reliability at an attractive price. It is powered by 64-layer 3D NAND TLC ash memory and has both a DDR3 DRAM cache and potent LDPC ECC built-in for reliable transfers.



Key Features:

  • Compliant with RoHS standards
  • Advanced Global Wear-Leveling and Intelligent Block management for reliability
  • Advanced Garbage Collection
  • Built-in LDPC ECC (Error Correction Code) functionality
  • Power-saving DevSleep (Device Sleep) mode (optional)
  • DDR3 DRAM Cache embedded
  • TRIM command for better performance
  • NCQ command for better performance
  • Enhanced S.M.A.R.T. function for durability
  • Security Command

More Information

Specifications

Appearance
Dimensions 54 mm x 39.8 mm x 4 mm (2.13" x 1.57" x 0.15")
Weight 8 g (0.28 oz)
mSATA Type MO-297
Pin 7+15 pin
Form Factor
  • Half-slim

Interface
Bus Interface
  • SATA III 6Gb/s

Storage
Flash Type
  • 3D TLC NAND flash
Capacity
  • 32 GB/
  • 64 GB/
  • 128 GB

Operating Environment
Operating Voltage
  • 5V±5%
Operating Temperature
  • Standard
    0°C (32°F) ~ 70°C (158°F)
Storage Temperature -40°C (-40°F) ~ 85°C (185°F)
Humidity 0% ~ 95%
Shock
  • 1500 G, 0.5 ms, 3 axis
Vibration (Operating) 3 G (peak-to-peak), 5 Hz ~ 800 Hz (frequency)
Vibration (Non-operating) 5 G (peak-to-peak), 5 Hz ~ 800 Hz (frequency)

Power
Power Consumption (Operation) 2.15 watt(s)
Power Consumption (Sleep) 0.62 watt(s)

Performance
Sequential Read/Write (ATTO, max.) Read: 550 MB/s
Write: 400 MB/s
Sequential Read/Write (CrystalDiskMark, max.) Read: 550 MB/s
Write: 400 MB/s
4K Random Read/Write (IOmeter, max.) Read: 55,000 IOPS
Write: 70,000 IOPS
Mean Time Between Failures (MTBF) 1,500,000 hour(s)
Terabytes Written (Max.) 80 TB
Drive Writes Per Day (DWPD) 0.58 (3 yrs)
Note
  • Speed may vary due to host hardware, software, usage, and storage capacity.
  • The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.

Warranty
Certificate
  • CE/
  • FCC/
  • BSMI
Warranty
  • Three-year Limited Warranty
Warranty Policy
  • Warranty does not apply when SSD Scope's wear-out indicator displays 0% within the warranty coverage.


Description

Transcend's HSD450T Half-Slim SSD offers exceptional transfer speeds in a small package thanks to a SATA III 6Gb/s interface and a potent controller. The HSD450T, which is best suited to read-heavy applications and space-constrained mobile devices like industrial control systems, medical equipment, mobile devices, and POS terminals, offers outstanding 4K random read and write performance as well as unmatched reliability at an attractive price. It is powered by 64-layer 3D NAND TLC ash memory and has both a DDR3 DRAM cache and potent LDPC ECC built-in for reliable transfers.



Key Features:

  • Compliant with RoHS standards
  • Advanced Global Wear-Leveling and Intelligent Block management for reliability
  • Advanced Garbage Collection
  • Built-in LDPC ECC (Error Correction Code) functionality
  • Power-saving DevSleep (Device Sleep) mode (optional)
  • DDR3 DRAM Cache embedded
  • TRIM command for better performance
  • NCQ command for better performance
  • Enhanced S.M.A.R.T. function for durability
  • Security Command
