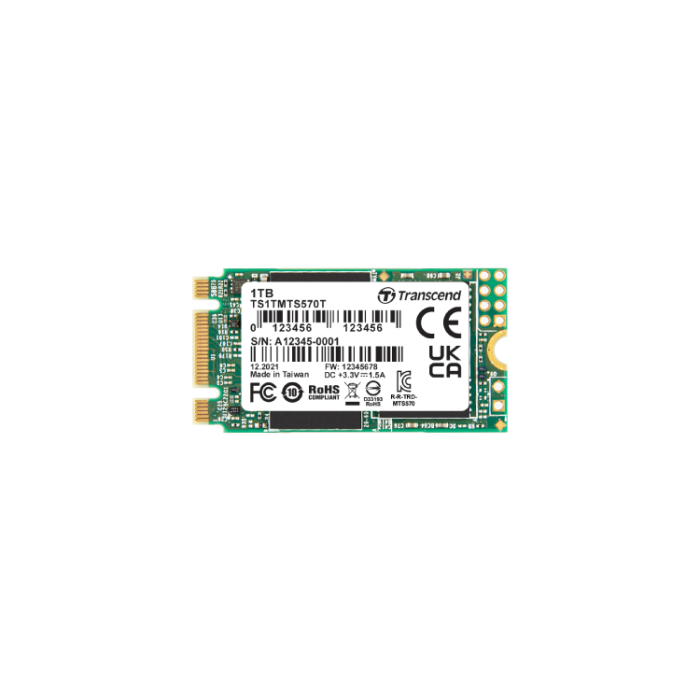

SATA III M.2 SSDs MTS570T & MTS570T-I
The SATA III 6Gb/s interface and cutting-edge 3D NAND technology of Transcend's M.2 SSD MTS570T enable the vertical stacking of 112 layers of 3D NAND flash chips. This density breakthrough significantly increases storage efficiency when compared to 3D NAND at 96 layers, and its integrated DRAM cache enables quicker access. The MTS570T, which uses 30" gold finger PCB and Corner Bond technology, is thoroughly tested in-house to ensure dependability in mission-critical applications. It has a 3K Program/Erase cycle endurance rating and an extended operating temperature range of -20°C to 75°C.
To ensure continued operation, increased durability, and ideal dependability in mission-critical applications, Transcend additionally provides the MTS570T-I with wide temperature capabilities (-40°C 85°C).
Key Features:
- Dynamic thermal throttling
- Built-in LDPC ECC (Error Correction Code) functionality
- Advanced Global Wear-Leveling and Block management for reliability
- Advanced Garbage Collection
- Static Data Refresh
- Early Move
- Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
- TRIM command for better performance
- NCQ command for better performance
- Full drive encryption with Advanced Encryption Standard (AES) (optional)
- Power-saving DevSleep (Device Sleep) mode (optional)
- Compliant with RoHS 2.0 standards
- Space-saving M.2 form factor (42mm) – ideal for mobile computing devices
- DDR3 DRAM Cache embedded
- Endurance: 3K P/E cycles (Program/Erase cycles) guaranteed
- Key components fortified by default with Corner Bond technology
- 30µ" PCB gold finger
- Anti-sulfur technology implemented to prevent sulfurization in the environment
- Power Shield (PS) to ensure data transfer integrity and minimize data corruption in the drive during an abnormal power outage
- Extended Temp. (-20°C ~ 75°C) and Wide Temp. (-40°C ~ 85°C) options available
- Supports Transcend Scope Pro software
In stock
- SKU
- TSxxxxMTS570T/-I
Have a Question about this product?
Description / SATA III M.2 SSDs MTS570T & MTS570T-I
The SATA III 6Gb/s interface and cutting-edge 3D NAND technology of Transcend's M.2 SSD MTS570T enable the vertical stacking of 112 layers of 3D NAND flash chips. This density breakthrough significantly increases storage efficiency when compared to 3D NAND at 96 layers, and its integrated DRAM cache enables quicker access. The MTS570T, which uses 30" gold finger PCB and Corner Bond technology, is thoroughly tested in-house to ensure dependability in mission-critical applications. It has a 3K Program/Erase cycle endurance rating and an extended operating temperature range of -20°C to 75°C.
To ensure continued operation, increased durability, and ideal dependability in mission-critical applications, Transcend additionally provides the MTS570T-I with wide temperature capabilities (-40°C 85°C).
Key Features:
- Dynamic thermal throttling
- Built-in LDPC ECC (Error Correction Code) functionality
- Advanced Global Wear-Leveling and Block management for reliability
- Advanced Garbage Collection
- Static Data Refresh
- Early Move
- Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
- TRIM command for better performance
- NCQ command for better performance
- Full drive encryption with Advanced Encryption Standard (AES) (optional)
- Power-saving DevSleep (Device Sleep) mode (optional)
- Compliant with RoHS 2.0 standards
- Space-saving M.2 form factor (42mm) – ideal for mobile computing devices
- DDR3 DRAM Cache embedded
- Endurance: 3K P/E cycles (Program/Erase cycles) guaranteed
- Key components fortified by default with Corner Bond technology
- 30µ" PCB gold finger
- Anti-sulfur technology implemented to prevent sulfurization in the environment
- Power Shield (PS) to ensure data transfer integrity and minimize data corruption in the drive during an abnormal power outage
- Extended Temp. (-20°C ~ 75°C) and Wide Temp. (-40°C ~ 85°C) options available
- Supports Transcend Scope Pro software
