SCM187-4R8EI-184EVK SMARC v2.1 Mini Quad 1.6 GHz SoC

Axiomtek

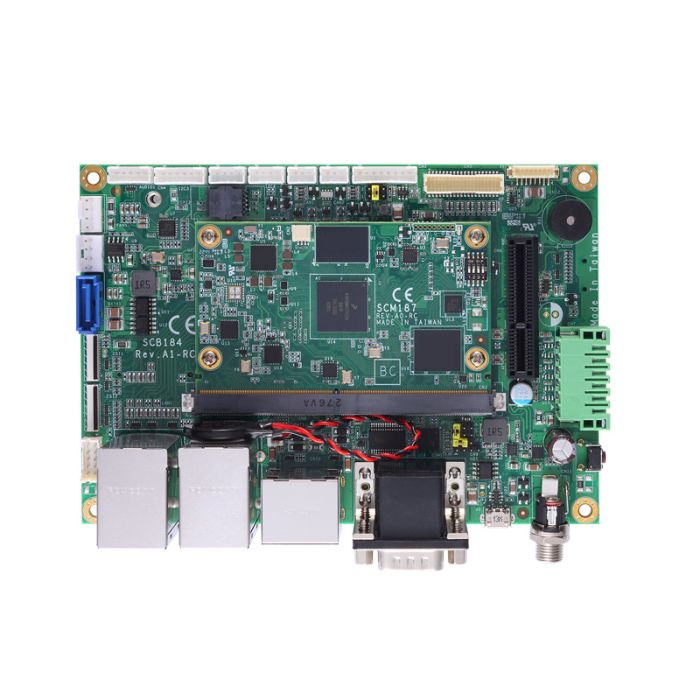

Axiomtek SCM187-4R8EI-184EVK SMARC v2.1 SoM Evaluation Kit Mini Quad 1.6 GHz SoC 4GB RAM 8GB eMMC CANBus

Key Features:

  • NXP i.MX 8M Mini Quad A53 Core processor
  • Cortex-M4 for real-time control
  • Dual CANBus
  • Dual-channel 24-bit LVDS
  • GbE LAN
  • Audio
  • Micro SD Socket
  • 12V-24V Wide Voltage
  • Yocto 4.0

In stock

SKU
SCM187-4R8EI-184EVK

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / SCM187-4R8EI-184EVK SMARC v2.1 Mini Quad 1.6 GHz SoC

The SCM187-4R8EI-184EVK is an evaluation kit for the SMARC v2.1 SoM based on the NXP i.MX 8M Mini 1.6GHz SoC. It offers 4GB LPDDR4 system memory and 8GB eMMC storage. The kit features connectivity options such as RS-232 and RS-485 ports, USB 2.0 ports, GbE LAN ports, and a dual-channel 24-bit LVDS display interface.

It includes CANBus, I2C, SPI, and GPIO interfaces, as well as storage options with an onboard eMMC and micro SD slot. The kit supports expansion with a PCIe x4 slot and offers optional TPM 2.0 security. It operates on 12V-24V DC-in, has an operating temperature range of -20°C to +70°C, and comes in a compact form factor of approximately 146 x 102 mm.

Key Features:

  • NXP i.MX 8M Mini Quad A53 Core processor
  • Cortex-M4 for real-time control
  • Dual CANBus
  • Dual-channel 24-bit LVDS
  • GbE LAN
  • Audio
  • Micro SD Socket
  • 12V-24V Wide Voltage
  • Yocto 4.0



More Information

brand Axiomtek
Specifications

Core System



CPU

NXP i.MX 8M Mini 1.6GHz SoC with Quad A53

System Memory

LPDDR4 4GB

Operating System

Yocto 4.0, Linux Kernel 5.15.32

Storage

1 x Micro SD slot 1 x 8GB eMMC

Internal I/O and Features



PCIe*

1 x PCIe x4 slot (SCM187 supports PCIe Gen2 x1)

USB*

2 x USB 2.0 (not supported on SCM187)

Audio

1 x Line In/ Line Out

CANBus

2 x CANBus

I2C

2 x I2C Header

QSPI

1 x QSPI Header

SPI

1 x SPI Header

Graphics

1 x Dual-channel 24-bit LVDS

LTE/5G*

1 x SIM card slot (not supported on SCM187) 1 x M.2 Key B 3052 slot for 5G Module (not supported on SCM187)

SATA*

1 x SATA for SATA III (not supported on SCM187) 1 x SATA Power (not supported on SCM187)

Fan

1 x Fan control

Storage

1 x 8GB eMMC

RTC

1 x RTC-Battery (CR2032)

Security*

1 x TPM 2.0 (optional, none in default)

* The connected SMARC module must also support the features for the connector to function. Refer to the SMARC module’s datasheets for information about supported features.

External I/O



Ethernet*

2 x GbE LAN (SCM187 supports 1 x GbE LAN)

USB*

4 x USB 2.0 Type A (SCM187 supports USB 2.0)

Graphics*

1 x HDMI (not supported on SCM187) 1 x DisplayPort (not supported on SCM187)

COM

1 x DB9 for RS-232 1 x DB9 for RS-232/485

OS Flash

1 x OS Flash

GPIO

10 x GPIO

Power

1 x Lockable DC jack (12V-24V)

Reset

1 x Reset bu on

Storage

1 x Micro SD slot

* The connected SMARC module must also support the features for the connector to function. Refer to the SMARC module’s datasheets for information about supported features.

Mechanical and Environmental



Power Input

12V-24V DC-in

Dimensions

146 x 102 mm (approx. 5.75" x 4.02")

Operating Temperature

-20°C to +70°C (-4°F to +158°F )

Storage Temperature

-40°C to +85°C (-40°F to +185°F )

Operating Humidity

10% to 95%, non-condensing

Storage Humidity

10% to 95%, non-condensing
Description

The SCM187-4R8EI-184EVK is an evaluation kit for the SMARC v2.1 SoM based on the NXP i.MX 8M Mini 1.6GHz SoC. It offers 4GB LPDDR4 system memory and 8GB eMMC storage. The kit features connectivity options such as RS-232 and RS-485 ports, USB 2.0 ports, GbE LAN ports, and a dual-channel 24-bit LVDS display interface.

It includes CANBus, I2C, SPI, and GPIO interfaces, as well as storage options with an onboard eMMC and micro SD slot. The kit supports expansion with a PCIe x4 slot and offers optional TPM 2.0 security. It operates on 12V-24V DC-in, has an operating temperature range of -20°C to +70°C, and comes in a compact form factor of approximately 146 x 102 mm.

Key Features:

  • NXP i.MX 8M Mini Quad A53 Core processor
  • Cortex-M4 for real-time control
  • Dual CANBus
  • Dual-channel 24-bit LVDS
  • GbE LAN
  • Audio
  • Micro SD Socket
  • 12V-24V Wide Voltage
  • Yocto 4.0


pdf
Datasheet
