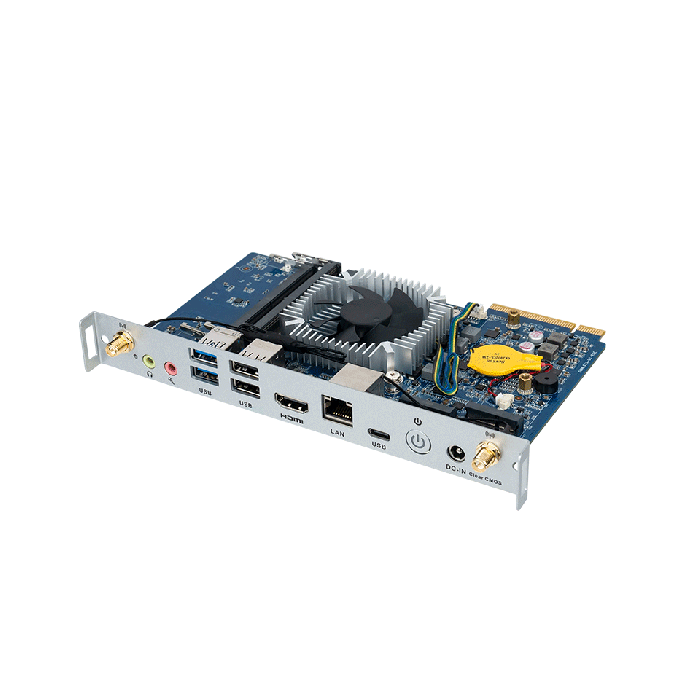

SDM-L613 13th Gen. CPU SDM Module

Giada Technology Inc.

Intel Raptor Lake-U Core, 1 x HDMI (7680 x 4320 @60 Hz), SDM I/O support 4K resolution Support Wi-Fi/BT, Intel vPro technology

Key Features:

  • Intel® 13th Gen. Raptor Lake Processors
  • Supporting 8K Display
  • Intel® vPro Technology
  • Support Wi-Fi/BT module

In stock

SKU
SDM-L-13x5G50H0G-GIA

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / SDM-L613 13th Gen. CPU SDM Module

The Giada SDM-L613, equipped with Intel Raptor Lake Core i3/i5/i7 processors, ushers in a new era of performance and efficiency. These processors boast a blend of high-performance and efficient cores that collaborate seamlessly, optimizing power consumption without compromising processing prowess.

This module supports the Intel-integrated Iris Xe GPU for Core i5/i7 configurations, enabling a maximum 8K resolution through the HDMI2.1 video out port. The SDM (PCIE X8) connector can transmit HDMI2.0 (4096 x 2304 @60 Hz), DP1.2 (4096 x 2304 @60 Hz), USB3.2 Gen1, UART, GSPI, I2C, PCIe, and SYS_FAN signals.

Additionally, the Intel Hardware Shield provides integrated hardware-based PC protection, encompassing below-the-OS security, application and data protection, and advanced threat detection.

Key Features:

  • Intel® 13th Gen. Raptor Lake Processors
  • Supporting 8K Display
  • Intel® vPro Technology
  • Support Wi-Fi/BT module

More Information

brand Giada Technology Inc.
Specifications

CPU

CPU

  • Intel® Core™ i3-1315U processor

  • Intel® Core™ i5-1335U/i5-1345U processor

  • Intel® Core™ i7-1365U processor

Efficient Frequency

  • 3.30GHz /3.40 GHz /3.50 GHz /3.70 GHz

Performance Frequency

  • 4.50 GHz /4.60 GHz /4.70 GHz /5.00 GHz
Chipset

  • SoC
Processing Units

  • 6 Cores /10 Cores /10 Cores /10 Cores
Configurable TDP-up
  • 15 W /215 W /15 W/ 15 W

Memory

Size

  • Up to 64 GB

Type

  • 2 x SO-DIMM DDR5-5200 MHz

Storage

Socket 1

  • 1 x M-Key M.2 (2280) PCIe4.0 X4 for SSD

Display
GPU

  • Intel® UHD Graphics (Core i3)

  • Intel® IRIS® Xe Graphics (Core i5, Core i7)
Graphic Engine
  • DirectX 12.1, OpenGL 4.6, OpenCL 3.0, 8K60fps 12b 4:2:0 HEVC/VP9/SCC
Display Interface

  • 1 x HDMI (Max.7680 x 4320 @60 Hz)

Network

Network Controller

  • 1 x Intel® Ethernet Controller I225-LM

Ethernet Interface

  • 1 x 2.5 GbE RJ45

Wi-Fi/BT

  • 1 x E-Key M.2 (2230) for Wi-Fi/BT, Support Wi-Fi 5, Wi-Fi 6 (CNVi)

Mobile Network

  • NA

I/O interface
USB

  • 1 x USB Type-C3.2 Gen1,

  • 2 x USB3.2 Gen2, 2 x USB2.0
Serial Port

  • NA
Audio
  • 1 x MIC-IN, 1 x AUDIO-OUT
Button
  • 1 x Power on, 1 x CLR-CMOS
Antenna

  • 2 x Connector for Wi-Fi/BT

SDM I/O

PCIe X8 Edge Connector

  • HDMI (4096 x 2304 @60 Hz),DP (4096 x 2304 @60 Hz),USB3.2 Gen1, UART, GSPI, I2C, PCIe, SYS_FAN

System

TPM

  • Optional: TPM2.0

JAHC

  • Watchdog Timer, Auto Power On, RTC

Power Requirement

  • DC-IN, 12 V/5 ASDM IO: 12 V

Dimensions

  • 175mm x 110mm (6.89” x 4.33” )

Operating System

  • Windows 11 (64bit) /Linux Ubuntu (64bit)

Operating Temperature

  • 0°C ~60°C (32°F~113°F) @0.7m/s Air Flow

Storage Temperature

  • -20°C ~75°C (-4°F~167°F)

Humidity

  • 95% @ 60°C (non-condensing)
Description

The Giada SDM-L613, equipped with Intel Raptor Lake Core i3/i5/i7 processors, ushers in a new era of performance and efficiency. These processors boast a blend of high-performance and efficient cores that collaborate seamlessly, optimizing power consumption without compromising processing prowess.

This module supports the Intel-integrated Iris Xe GPU for Core i5/i7 configurations, enabling a maximum 8K resolution through the HDMI2.1 video out port. The SDM (PCIE X8) connector can transmit HDMI2.0 (4096 x 2304 @60 Hz), DP1.2 (4096 x 2304 @60 Hz), USB3.2 Gen1, UART, GSPI, I2C, PCIe, and SYS_FAN signals.

Additionally, the Intel Hardware Shield provides integrated hardware-based PC protection, encompassing below-the-OS security, application and data protection, and advanced threat detection.

Key Features:

  • Intel® 13th Gen. Raptor Lake Processors
  • Supporting 8K Display
  • Intel® vPro Technology
  • Support Wi-Fi/BT module
