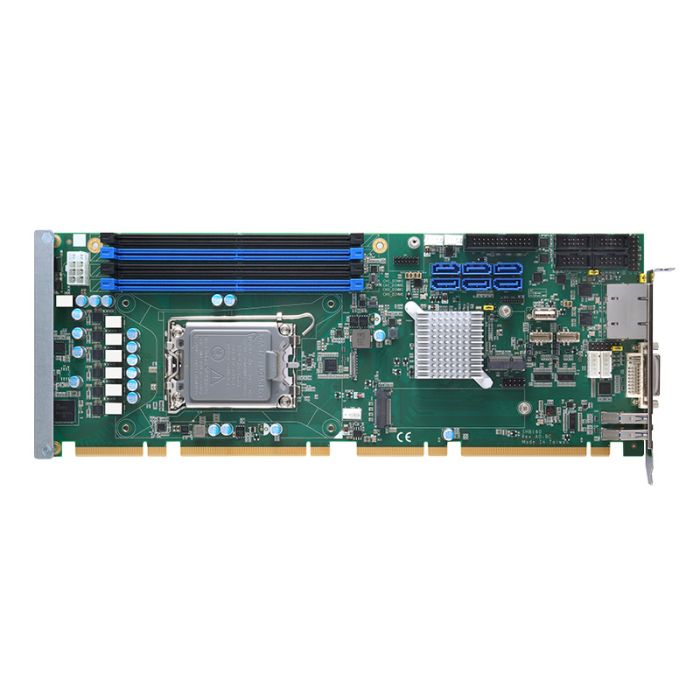

SHB160 PICMG 1.3 Full-Size CPU Card 13th/12th Gen

Axiomtek

Key Features:

  • LGA1700 13th/12th Gen Intel Core i7/i5/i3, Pentium or Celeron processor (up to 125W)
  • Intel R680E/H610E chipset
  • DDR5 4400MHz U-DIMM up to 128GB ECC (R680E only)/ non-ECC memory
  • Supports Intel AMT and vPro (R680E)
  • TPM 2.0 supported (optional)
  • Supports dual 2.5GbE
  • Supports LPT port
  • Supports M.2 Key M/ Key E (H610E only supports Key E)
  • Supports PCIe 4.0 through the gold fingers

In stock

SKU
SHB160DGG-xxxx

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / SHB160 PICMG 1.3 Full-Size CPU Card 13th/12th Gen

Key Features:

  • LGA1700 13th/12th Gen Intel Core i7/i5/i3, Pentium or Celeron processor (up to 125W)
  • Intel R680E/H610E chipset
  • DDR5 4400MHz U-DIMM up to 128GB ECC (R680E only)/ non-ECC memory
  • Supports Intel AMT and vPro (R680E)
  • TPM 2.0 supported (optional)
  • Supports dual 2.5GbE
  • Supports LPT port
  • Supports M.2 Key M/ Key E (H610E only supports Key E)
  • Supports PCIe 4.0 through the gold fingers

More Information

Brand Axiomtek
Specifications
CPU
  • LGA1700 13th/12th Gen Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor (up to 125W)
Chipset
  • Intel® R680E/ Q670E
System Memory
  • 4 x DDR5-4400MHz* ECC or non-ECC U-DIMM, up to 128GB (R680E)
  • 2 x DDR5-4400MHz non-ECC U-DIMM, up to 64 GB (H610E)
BIOS
  • AMI
COM
  • 2 x RS-232
  • 2 x RS-232/422/485, mode selection by SW
USB
  • 2 x USB 3.2 Gen2x1 (Rear I/O)
  • 4 x USB 3.2 Gen2x1 (Internal box header) (H610E only with 2 x USB 3.2 Gen2x1)
  • 3 x USB 2.0 (2 Internal pin headers, 1 port with 180D type A) (H610E without 180D type A)
  • 4 x USB 2.0 (4 ports on SHB connector-C via golden fingers)
Ethernet
  • 1 x 10/100/1000/2500 Mbps (Intel® I225-LM; Intel® AMT with Intel vPro®)
  • 1 x 10/100/1000/2500 Mbps (Intel® I225-V)
Display
  • 1 x DVI-I
  • 1 x DisplayPort (internal header)
Digital I/O
  • N/A
Audio
  • HD Codec audio as MIC-in/Line-in/Line-out/Speaker-out with audio kit AX93242 (optional)
Storage
  • M.2 Key M 2280, PCIe 4.0 x4 signal (R680E only)
  • 6 x SATA-600, support RAID 0/1/5/10 (R680E)
  • 4 x SATA-600 (H610E)
Expansion
  • 1 x PCIe x16 Gen4
  • 1 x PCIe x4 Gen4 or 4 x PCIe x1 Gen4
  • 4 x 32-bit PCI bus masters
  • 1 x M.2 Key E 2230
Others
  • 1 x PS/2 keyboard internal connector
  • 1 x PS/2 mouse internal connector
  • 1 x LPT
  • 1 x Smart CPU fan
  • 2 x Smart system fan
  • TPM 2.0 module (optional)
Battery
  • Lithium 3V/220 mAH
Power Requirements
  • Intel® Core™ i5-12400 with 32GB 4 x DDR5-4400, +12V_CPU @5.2A , +5V @4.64A, +3.3V @1.76A
Watchdog Timer
  • 225 levels, 1 to 255 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • 0°C to +60°C (+32°F to +140°F)
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Dimensions
  • 338 x 126 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE
Description

Key Features:

  • LGA1700 13th/12th Gen Intel Core i7/i5/i3, Pentium or Celeron processor (up to 125W)
  • Intel R680E/H610E chipset
  • DDR5 4400MHz U-DIMM up to 128GB ECC (R680E only)/ non-ECC memory
  • Supports Intel AMT and vPro (R680E)
  • TPM 2.0 supported (optional)
  • Supports dual 2.5GbE
  • Supports LPT port
  • Supports M.2 Key M/ Key E (H610E only supports Key E)
  • Supports PCIe 4.0 through the gold fingers
