SHK4-7-49 4X4 MiMo 4G/5G Reef Sharkee Antenna

Panorama Antennas

4X4 MiMo 4G/5G Reef Sharkee Antenna

Key Features:

In stock

SKU: SHK[X]4-7-49[X]

Have a Question about this product?

Name *

Phone *

Email *

Postcode *

Message *

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / SHK4-7-49 4X4 MiMo 4G/5G Reef Sharkee Antenna

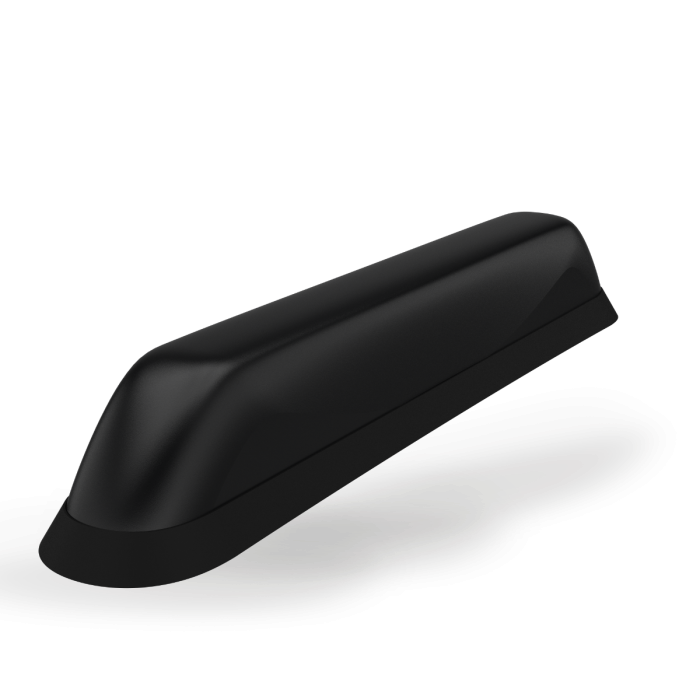

The SHK[X]4-7-49[X] MiMo Reef Sharkee® antenna is designed to be a discrete one-size-fits-all solution for mobile applications. The robust low-profile housing contains 4x 4G LTE / 5G NR elements covering 698-960/1427-4900MHz. Versions of the product also contain up to 4x optional WiFi elements supporting WiFi 6e 2.4/5.150-7.125GHz and optional L1 only or L1/L5 GPS/GNSS module. This version of the product does not have a whip position.

The sleek sharkfin design has low visual impact and at only 52mm (2″) high the antenna can comply with certain state laws regarding light-bar obscuration on police vehicles.

The product is supplied with low-loss flame retardant pigtail cables approved to UN ECE R118 and a variety of extension cables are available for different applications.

The SHK[X]4-7-49[X] can be installed on conductive or non-conductive panels.

More Information

brand

Panorama Antennas

Specifications

ELECTRICAL DATA
Pattern	Omnidirectional
Max Input Power(W)	5
Typical VSWR	<2.5:1
Frequency Range \| Gain	Check the part number table
Cellular LTE Elements	4 x 4 MIMO
WIFI Elements	2 x 2 MIMO; 4 x 4 MIMO; No; 3 x 3 MIMO
UHF Elements	No
GPS DATA
GPS Frequency Range	1164-1189MHz/1559-1612MHZ; 1559-1612MHz
LNA GAIN (dB)	30dB / 26dB; 26dB
Number of GPS Elements	1 Module; No
MECHANICAL DATA
Colour	Black
Length	365 (mm) \| 14.37 (in)
Width	60 (mm) \| 2.36 (in)
Height	max: 52 (mm) \| 2.05 (in)
Operating Temperature	-40°/ +85°C (-40.0°/ +185.0°F)
CABLE DATA
Cable Length – LTE	0.3 (m) \| 0.98 (ft)
Cable length – GPS	0.3 (m) \| 0.98 (ft)
Cable Length – WIFI	0.3 (m) \| 0.98 (ft)
Cable Type (LTE)	CS30
Cable Type (GPS)	RG174
Cable Type (WIFI)	CS30
TERMINATION DATA
Connector (WIFI)	SMA (f)
Connector (GPS)	SMA (m); FME (f)
Connector (LTE)	SMA (m)
MOUNTING DATA
Mounting Type Fixed	Panel
Mounting Methods	Panel
APPROVALS DATA
IP Rating	IP69K
TECHNOLOGY DATA
Technology	GPS; WIFI MIMO; 4G/5G; WIFI; 5G; 2G/3G; 2G/3G/4G; CBRS; GNSS; WIFI 6E

Description

The sleek sharkfin design has low visual impact and at only 52mm (2″) high the antenna can comply with certain state laws regarding light-bar obscuration on police vehicles.

The product is supplied with low-loss flame retardant pigtail cables approved to UN ECE R118 and a variety of extension cables are available for different applications.

The SHK[X]4-7-49[X] can be installed on conductive or non-conductive panels.

Datasheet
