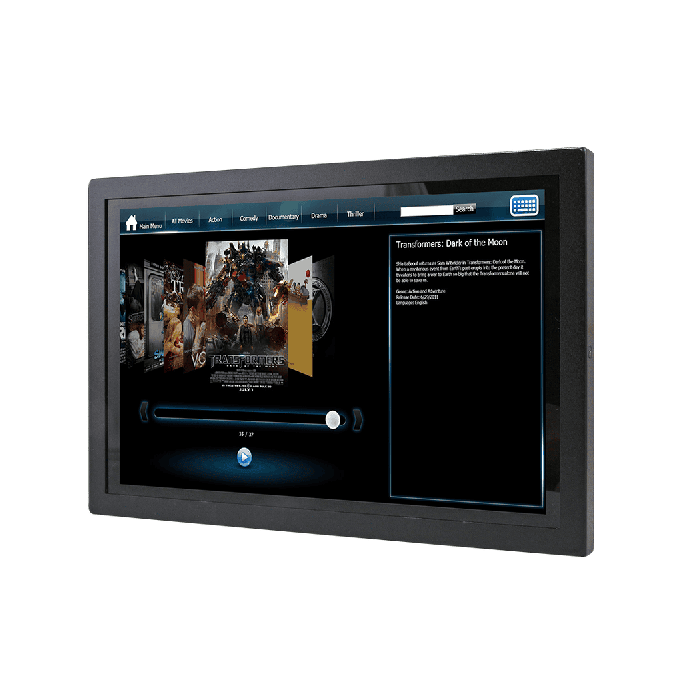

SID-10W03 10.1" Semi Industrial Panel PC with Atom 8350

Processor

Intel Atom® x5-Z8350 Processor

System Memory

2GB/4GB LPDDR3

Storage

32GB/ 64GB eMMC

DC Input

DC 12~24V

OS

Windows 10 2019 / Linux(TBA)

Certification Information

CE/FCC Part 15, Subpart B

LCD Size

10.1"

LCD Panel

TFT LCD

Display Type

WXGA

Resolution

1280x800

Pixel pitch

0.1695(H)X0.1695(V) mm

Luminance

350 cd/m2(typ)

Contrast ratio

800

Viewing angle

85 (U), 85 (D), 85 (L), 85 ( R)

Response time

30ms

Backlight

LED

Touch Type

PCAP

Touch Light Transmission

86%

USB

1 x USB 3.0, 2 x USB 2.0

Video Port

1 x HDMI 1.4 output

Audio Port

1 x Line out

Wireless LAN Antenna

1 x SMA type connector

WLAN

WIFI 802.11 b/g/n/ac

Operating Temp.

0°C ~ 40°C (32°F ~ 104°F)

Storage Temp.

-20°C ~ 60°C (-4°F ~ 140°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Weight

1.5 kg

IP Rating

Front IP65

Mounting Kit

75 x75mm

Dimension (W x L x D)

255.2 x 169.4 x 40.7mm

Power Requirement

DC 12~24V

Power Mode

AT mode (Default)

Construction

Metal

Adapter

Input: 100~240 Vac/50~60 Hz, Output: 60W Adapter (12V @ 5A Adapter)

Ordering Information

SID-10W03-5004-A1R : SID-10W03 2GB 32GB / Ubuntu 19.04
SID-10W03-5005-A1R : SID-10W03 2GB, 32GB / Win 10
SID-10W03-5007-A1R : SID-10W03 4GB, 64GB / Ubuntu 19.04
SID-10W03-5008-A1R : SID-10W03 4GB, 64GB / Win 10
