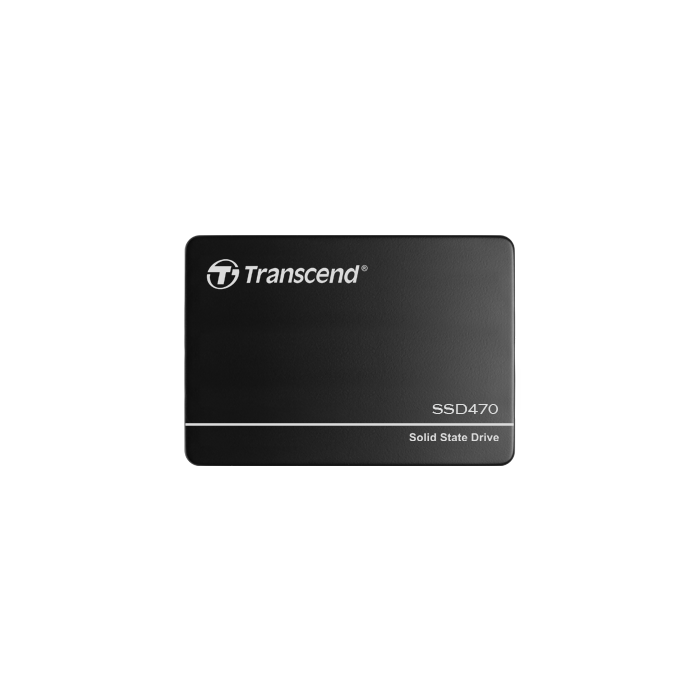

SSD470A 2.5" SATA SSDs

Transcend

2.5" SSD SATA III 6Gb/s interface and 112-layer 3D NAND flash

Key Features:

  • Compliant with RoHS 2.0 standards
  • DDR3 DRAM Cache embedded
  • Endurance: 3K P/E cycles (Program/Erase cycles) guaranteed
  • Anti-sulfur technology implemented to prevent sulfurization in the environment
  • Power Shield (PS) to ensure data transfer integrity and minimize data corruption in the drive during an abnormal power outage
  • Promised operational reliability in an extended temperature range (from -20°C to 75°C)

In stock

SKU
TSxxxxSSD470A

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / SSD470A 2.5" SATA SSDs

Transcend's SSD470A 2.5" SSD is a self-encrypting drive (SED) that meets TCG (Trusted Computing Group) Opal 2.0 specifications. Hardware-based AES 256-bit encryption and sector-specific LBA (Logical Block Address) permissions are used to secure data.

With its 112-layer 3D NAND flash and SATA III 6Gb/s interface, Transcend's SSD470A SSD offers a ground-breaking capacity that significantly boosts storage effectiveness. Fast random read and write rates are made possible by its integrated DRAM cache, which also increases drive endurance. Anti-sulfur resistors also ensure their dependability in challenging circumstances. Additionally, Transcend's SSD470A has undergone internal 100% chamber testing for prolonged operating temperatures of -20°C to 75°C.

Key Features:

  • Dynamic thermal throttling
  • Built-in LDPC ECC (Error Correction Code) functionality
  • Advanced Global Wear-Leveling and Block management for reliability
  • Advanced Garbage Collection
  • Static Data Refresh
  • Early Move
  • Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
  • TRIM command for better performance
  • NCQ command for better performance
  • Full drive encryption with Advanced Encryption Standard (AES)
  • Compliant with TCG Opal specifications and IEEE 1667 standards
  • Power-saving DevSleep (Device Sleep) mode (optional)
  • Compliant with RoHS 2.0 standards
  • DDR3 DRAM Cache embedded
  • Endurance: 3K P/E cycles (Program/Erase cycles) guaranteed
  • Anti-sulfur technology implemented to prevent sulfurization in the environment
  • Power Shield (PS) to ensure data transfer integrity and minimize data corruption in the drive during an abnormal power outage
  • Promised operational reliability in an extended temperature range (from -20°C to 75°C)

More Information

brand Transcend
Specifications

Appearance
Dimensions 100 mm x 69.85 mm x 6.8 mm (3.94" x 2.75" x 0.27")
Weight 54 g (1.9 oz)
Form Factor
  • 2.5"

Interface
Bus Interface
  • SATA III 6Gb/s

Storage
Capacity
  • 128 GB/
  • 256 GB/
  • 512 GB/
  • 1 TB/
  • 2 TB/
  • 4 TB
Flash Type
  • 112-layer 3D NAND flash

Operating Environment
Operating Voltage
  • 5V±5%
Operating Temperature
  • Extended Temp.
    -20°C (-4°F) ~ 75°C (167°F)
Storage Temperature -55°C (-67°F) ~ 85°C (185°F)
Humidity 5% ~ 95%
Shock
  • 1500 G, 0.5 ms, 3 axis
Vibration (Operating) 20 G (peak-to-peak), 7 Hz ~ 2,000 Hz (frequency)

Power
Power Consumption (Operation) 5.0 watt(s)
Power Consumption (Sleep) 1.1 watt(s)

Performance
Sequential Read/Write (CrystalDiskMark) Read: up to 560 MB/s
Write: up to 500 MB/s
4K Random Read/Write (IOmeter) Read: up to 80,000 IOPS
Write: up to 85,000 IOPS
Mean Time Between Failures (MTBF) 3,000,000 hour(s)
Terabytes Written (TBW) up to 1,210 TBW
Drive Writes Per Day (DWPD) 2.16 (3 yrs)
Note
  • Speed may vary due to host hardware, software, usage, and storage capacity.
  • The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.
  • Terabytes Written (TBW) expresses the endurance under the highest capacity.
Description

Transcend's SSD470A 2.5" SSD is a self-encrypting drive (SED) that meets TCG (Trusted Computing Group) Opal 2.0 specifications. Hardware-based AES 256-bit encryption and sector-specific LBA (Logical Block Address) permissions are used to secure data.

With its 112-layer 3D NAND flash and SATA III 6Gb/s interface, Transcend's SSD470A SSD offers a ground-breaking capacity that significantly boosts storage effectiveness. Fast random read and write rates are made possible by its integrated DRAM cache, which also increases drive endurance. Anti-sulfur resistors also ensure their dependability in challenging circumstances. Additionally, Transcend's SSD470A has undergone internal 100% chamber testing for prolonged operating temperatures of -20°C to 75°C.

Key Features:

  • Dynamic thermal throttling
  • Built-in LDPC ECC (Error Correction Code) functionality
  • Advanced Global Wear-Leveling and Block management for reliability
  • Advanced Garbage Collection
  • Static Data Refresh
  • Early Move
  • Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
  • TRIM command for better performance
  • NCQ command for better performance
  • Full drive encryption with Advanced Encryption Standard (AES)
  • Compliant with TCG Opal specifications and IEEE 1667 standards
  • Power-saving DevSleep (Device Sleep) mode (optional)
  • Compliant with RoHS 2.0 standards
  • DDR3 DRAM Cache embedded
  • Endurance: 3K P/E cycles (Program/Erase cycles) guaranteed
  • Anti-sulfur technology implemented to prevent sulfurization in the environment
  • Power Shield (PS) to ensure data transfer integrity and minimize data corruption in the drive during an abnormal power outage
  • Promised operational reliability in an extended temperature range (from -20°C to 75°C)
pdf
Datasheet
