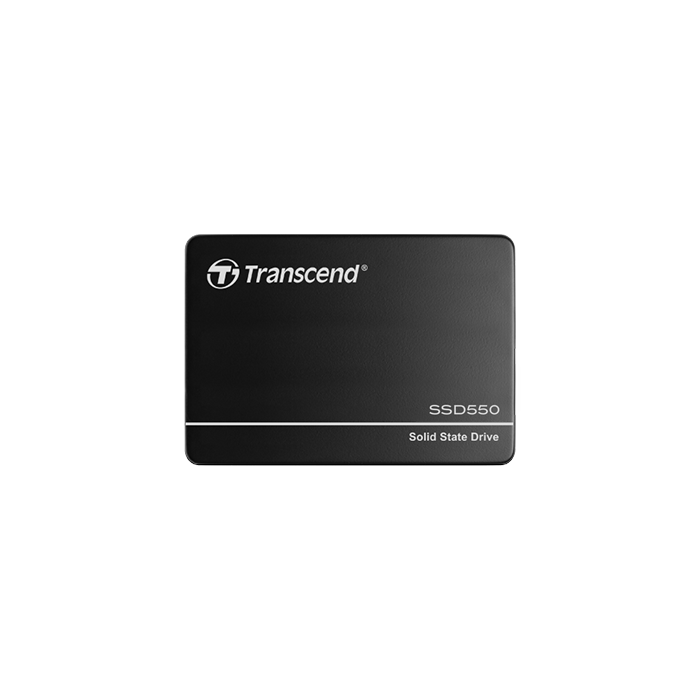

SSD550I 2.5" SATA SSD

Transcend

40GB/80GB/160GB/320GB/640GB/1280GB 2.5" SATA SSD 112-layer 3D NAND flash SLC Mode technology

In stock

SKU
TSxxxxxSSD550I

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / SSD550I 2.5" SATA SSD

Transcend's 2.5" SATA III SSD550I features the 112-layer 3D NAND flash and the SLC Mode technology, achieving remarkable endurance and sustained speeds equivalent to SLC flash. Its built-in DRAM cache allows faster random speeds while the anti-sulfur resistor guarantees its reliability in harsh conditions. The SSD550I is thoroughly tested in-house, operating stably in wide operating temperatures ranging from -40℃~85℃.

Key Features:

Firmware:

  • Dynamic thermal throttling
  • Built-in LDPC ECC (Error Correction Code) functionality
  • Advanced Global Wear-Leveling and Block management for reliability
  • Advanced Garbage Collection
  • Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
  • TRIM command for better performance
  • NCQ command for better performance
  • Full drive encryption with Advanced Encryption Standard (AES) (optional)
  • Power-saving DevSleep (Device Sleep) mode (optional)

Hardware:

  • Compliant with RoHS 2.0 standards
  • DDR3 DRAM Cache embedded
  • High-quality 3D NAND flash and SLC mode for exceptional endurance and reliability
  • Endurance: 100K P/E cycles (Program/Erase cycles) guaranteed
  • Anti-sulfur technology implemented to prevent sulfurization in the environment
  • Power Shield (PS) to ensure data transfer integrity and minimize data corruption in the drive during an abnormal power outage
  • Promised operational reliability in a wide temperature range (from -40°C to 85°C)
  • Supports Transcend Scope Pro software

More Information

brand Transcend
Specifications

Appearance
Dimensions 100 mm x 69.85 mm x 6.8 mm (3.94" x 2.75" x 0.27")
Weight 54 g (1.9 oz)
Form Factor
  • 2.5"

Interface
Bus Interface
  • SATA III 6Gb/s

Storage
Capacity
  • 40 GB/
  • 80 GB/
  • 160 GB/
  • 320 GB/
  • 640 GB/
  • 1280 GB
Flash Type
  • 112-layer 3D NAND flash (SLC mode)

Operating Environment
Operating Voltage
  • 5V±5%
Operating Temperature
  • Wide Temp.
    -40°C (-40°F) ~ 85°C (185°F)
Storage Temperature -55°C (-67°F) ~ 85°C (185°F)
Humidity 5% ~ 95%
Shock
  • 1500 G, 0.5 ms, 3 axis
Vibration (Operating) 20 G (peak-to-peak), 7 Hz ~ 2,000 Hz (frequency)

Power
Power Consumption (Operation) 3.3 watt(s)
Power Consumption (Sleep) 1.1 watt(s)

Performance
Sequential Read/Write (CrystalDiskMark) Read: up to 560 MB/s
Write: up to 500 MB/s
4K Random Read/Write (IOmeter) Read: up to 70,000 IOPS
Write: up to 85,000 IOPS
Mean Time Between Failures (MTBF) 3,000,000 hour(s)
Terabytes Written (TBW) up to 4,578 TBW
Drive Writes Per Day (DWPD) 52.3 (3 yrs)
Note
  • Speed may vary due to host hardware, software, usage, and storage capacity.
  • The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.
  • Terabytes Written (TBW) expresses the endurance under the highest capacity.
Description

Transcend's 2.5" SATA III SSD550I features the 112-layer 3D NAND flash and the SLC Mode technology, achieving remarkable endurance and sustained speeds equivalent to SLC flash. Its built-in DRAM cache allows faster random speeds while the anti-sulfur resistor guarantees its reliability in harsh conditions. The SSD550I is thoroughly tested in-house, operating stably in wide operating temperatures ranging from -40℃~85℃.

Key Features:

Firmware:

  • Dynamic thermal throttling
  • Built-in LDPC ECC (Error Correction Code) functionality
  • Advanced Global Wear-Leveling and Block management for reliability
  • Advanced Garbage Collection
  • Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
  • TRIM command for better performance
  • NCQ command for better performance
  • Full drive encryption with Advanced Encryption Standard (AES) (optional)
  • Power-saving DevSleep (Device Sleep) mode (optional)

Hardware:

  • Compliant with RoHS 2.0 standards
  • DDR3 DRAM Cache embedded
  • High-quality 3D NAND flash and SLC mode for exceptional endurance and reliability
  • Endurance: 100K P/E cycles (Program/Erase cycles) guaranteed
  • Anti-sulfur technology implemented to prevent sulfurization in the environment
  • Power Shield (PS) to ensure data transfer integrity and minimize data corruption in the drive during an abnormal power outage
  • Promised operational reliability in a wide temperature range (from -40°C to 85°C)
  • Supports Transcend Scope Pro software
pdf
Datasheet
