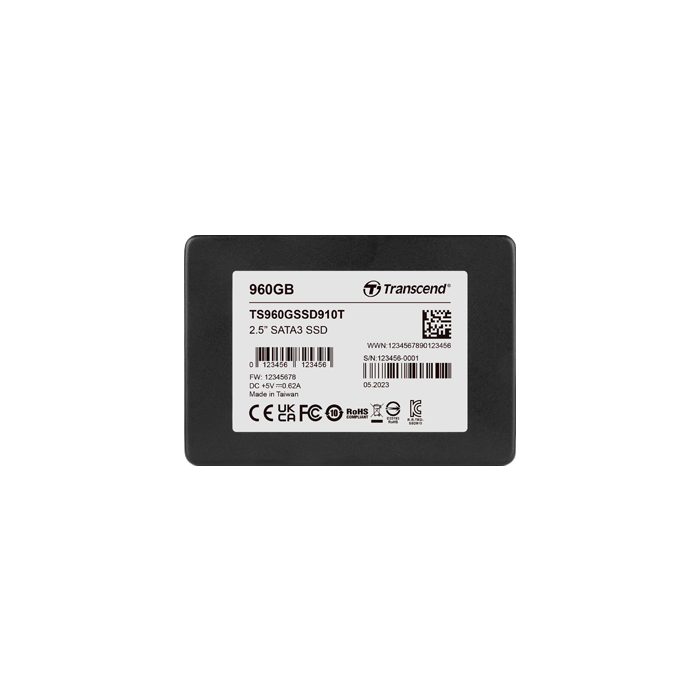

SSD910T 2.5" SATA & PATA SSD

Transcend

Lightning-fast, reliable 2.5" Enterprise SSD for data centres and high-performance servers

Key Features:

  • Compliant with RoHS standards
  • DRAM Cache embedded
  • High-quality 3D NAND flash
  • Power Loss Protection (PLP) to prevent data loss in the event of a sudden power outage

In stock

SKU
TSxxxGSSD910T

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / SSD910T 2.5" SATA & PATA SSD

Presenting Transcend's SSD910T 2.5" Enterprise SSD, meticulously crafted for expansive data centres and high-performance servers. Boasting premium 3D NAND flash, a SATA III 6Gb/s interface, and a DRAM cache, this drive bestows lightning-fast transfer speeds, perfectly equipped to tackle immense data workloads. Immerse yourself in a realm of superior Quality of Service (QoS), ultra-low latency, and unparalleled endurance, culminating in remarkably swift loading durations. Integrated Power Loss Protection (PLP) ensures unwavering data integrity, even amidst fluctuations in power. Elevate your system to Transcend's SSD910T for unrivalled performance in web servers and media streaming applications.

Key Features:

Firmware Features

  • Dynamic thermal throttling

  • Built-in ECC (Error Correction Code) functionality

  • Advanced Global Wear-Leveling and Block management for reliability

  • Advanced Garbage Collection

  • Early Move

  • Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices

  • TRIM command for better performance

  • NCQ command for better performance

Hardware Features

  • Compliant with RoHS standards

  • DRAM Cache embedded

  • High-quality 3D NAND flash

  • Power Loss Protection (PLP) to prevent data loss in the event of a sudden power outage

More Information

brand Transcend
Specifications

Appearance

Dimensions
  • 100 mm x 69.85 mm x 7 mm (3.94" x 2.75" x 0.28")

Form Factor
  • 2.5"

Interface
Bus Interface
  • SATA III 6Gb/s

Storage
Capacity
  • 240 GB/
  • 480 GB/
  • 960 GB
Flash Type
  • 3D NAND flash

Operating Environment
Operating Voltage
  • 5V±5%
Operating Temperature
  • Standard Temp.
    0°C (32°F) ~ 70°C (158°F)
Storage Temperature -40°C (-40°F) ~ 85°C (185°F)
Humidity 0% ~ 90%
Shock
  • 1500 G, 0.5 ms, 3 axis
Vibration (Operating) 20 G (peak-to-peak), 80 Hz ~ 2000 Hz (frequency)

Power
Power Consumption (Operation) 2.9 watt(s)
Power Consumption (Sleep) 1.3 watt(s)

Performance
Sequential Read/Write Read: up to 390 MB/s
Write: up to 448 MB/s
4K Random Read/Write Read: up to 9,578 IOPS
Write: up to 45,100 IOPS
Quality of Service (QoS) 99%
Read: 137us
Write: 31.36us
99.9%
Read: 190us
Write: 42.752us
Latency (4K, QD=1) Read: 101.2us
Write: 18.667us
Mean Time Between Failures (MTBF) 2,000,000 hour(s)
Terabytes Written (TBW) up to 1320 TBW
Drive Writes Per Day (DWPD) 3.01 (5 yrs)
Note
  • Speed may vary due to host hardware, software, usage, and storage capacity.
  • The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.
  • SSD performance measured by FIO 3.16 benchmarking tool.

Warranty
Certificate
  • CE/
  • UKCA/
  • FCC/
  • BSMI
Warranty
  • Five-year Limited Warranty
Warranty Policy
  • Please click here for more information about the Transcend Warranty Policy.
  • Warranty does not apply when Scope Pro software wear-out indicator displays 0% within the warranty coverage.
  • Scope Pro software is required by request. Please contact us for more information.
Description

Presenting Transcend's SSD910T 2.5" Enterprise SSD, meticulously crafted for expansive data centres and high-performance servers. Boasting premium 3D NAND flash, a SATA III 6Gb/s interface, and a DRAM cache, this drive bestows lightning-fast transfer speeds, perfectly equipped to tackle immense data workloads. Immerse yourself in a realm of superior Quality of Service (QoS), ultra-low latency, and unparalleled endurance, culminating in remarkably swift loading durations. Integrated Power Loss Protection (PLP) ensures unwavering data integrity, even amidst fluctuations in power. Elevate your system to Transcend's SSD910T for unrivalled performance in web servers and media streaming applications.

Key Features:

Firmware Features

  • Dynamic thermal throttling

  • Built-in ECC (Error Correction Code) functionality

  • Advanced Global Wear-Leveling and Block management for reliability

  • Advanced Garbage Collection

  • Early Move

  • Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices

  • TRIM command for better performance

  • NCQ command for better performance

Hardware Features

  • Compliant with RoHS standards

  • DRAM Cache embedded

  • High-quality 3D NAND flash

  • Power Loss Protection (PLP) to prevent data loss in the event of a sudden power outage
