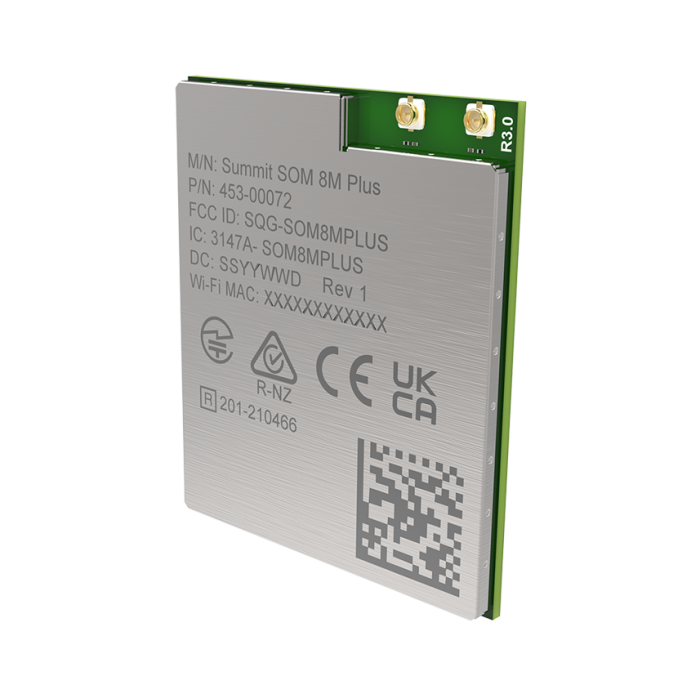

Summit SOM 8M Plus System-on-Module - WiFi 5 + Bluetooth 5.3
i.MX 8M Plus with Dual-Band 2x2 Wi-Fi 5 + Bluetooth 5.3 System-on-Module
In stock
SKU
453-0007x
Have a Question about this product?
Description /
Summit SOM 8M Plus System-on-Module - WiFi 5 + Bluetooth 5.3
The Summit SOM 8M Plus, which is powered by NXP Semiconductor's i.MX 8M Plus processor and 88W8997 wireless SoC, is a versatile, power-efficient quad Cortex-A53 and Cortex-M7 solution for powerful heterogeneous multiprocessing, machine learning, rich multimedia (graphics, video, vision, and audio), advanced connectivity, and enhanced security to enable high-performance, flexible solutions.
Features:
Wi-Fi 5 2x2 MU-MIMO
Bluetooth 5.3
1.6 GHz quad-core Cortex-A53 MPU and 800 MHz Corex-M7 MCU
Machine learning, graphics, video, vision, and audio – up to three displays
Secure enclave and secure boot powered by i.MX 8M Plus
Extensive range of pre-certified antennas
10+ year product lifecycle
CVE remediated Long Term Support Linux
Upcoming FIPS 140-3 Level 1 validation
Industrial temperature rating
Global certifications/registrations
More Information
Brand
Ezurio (Laird Technologies)
Specifications
Processors
Microprocessor
4x Cortex®-A53 cores @ 1.6 GHz
Microcontroller
1x Cortex®-M7 core @ 800 MHz
Audio
Tensilica® HiFi 4 DSP
Graphics
GC7000UL with 2 shaders for 3D and GC520L for 2D
Machine Learning
Neural Processing Unit (NPU) with 2.3 TOP/s
Memory
RAM
Up to 2GB LPDDR4 standard; Up to 6GB LPDDR4 on request
Storage
Up to 16GB eMMC 5.1 standard; Up to 64GB eMMC 5.1 on request
Machine Learning
Neural Processing Unit
Keyword detect, noise reduction, beamforming
Speech recognition (i.e. Deep Speech 2)
Image recognition (i.e. ResNet-50)
Graphics and Video
Graphics Processing Unit
166 million triangles/sec
1.0 giga pixel/sec
16 GFLOPs 32-bit
OpenGL ES 1.1, 2.0, 3.0, OpenCL 1.2, Vulkan
2D acceleration
Video Processing Unit
Video Decode
1080p60 HEVC/H.265 Main, Main 10 (up to level 5.1)
1080p60 VP9 Profile 0, 2
1080p60 VP8
1080p60 AVC/H.264 Baseline, Main, High decoder
Video Encode
1080p60 AVC/H.264 encoder
1080p60 HEVC/H.265 encoder
Display Interfaces
1x MIPI DSI, up to UWHD and WUXGA
1x LVDS Tx, up to 1920x1080p60
1x HDMI 2.0a Tx, up to 4kp30
Vision
Camera
2x 4-lane MIPI CSI
Image Signal Processor
375 Mpixel/s HDR ISP supporting configurations, such as 12MP@30fps, 4kp45, or 2x 1080p80
Audio
Audio Interfaces
SPDIF input and output
Six external SAI modules supporting I2S, AC97, TDM, codec/DSP, and DSD interfaces
ASRC
eARC/ARC (HDMI)
8-channel PDM mic input
Peripherals
Input/Output
2x USB 3.0/2.0 Dual-Role with PHY
2x Gbit Ethernet with IEEE® 1588, AVB (One also supports TSN)
Development board, accessories, and evaluation software
Qualifications
Bluetooth® SIG
Bluetooth 5.3
Regulatory
Approvals
FCC/IC/CE/MIC/RCM
Description
The Summit SOM 8M Plus, which is powered by NXP Semiconductor's i.MX 8M Plus processor and 88W8997 wireless SoC, is a versatile, power-efficient quad Cortex-A53 and Cortex-M7 solution for powerful heterogeneous multiprocessing, machine learning, rich multimedia (graphics, video, vision, and audio), advanced connectivity, and enhanced security to enable high-performance, flexible solutions.
