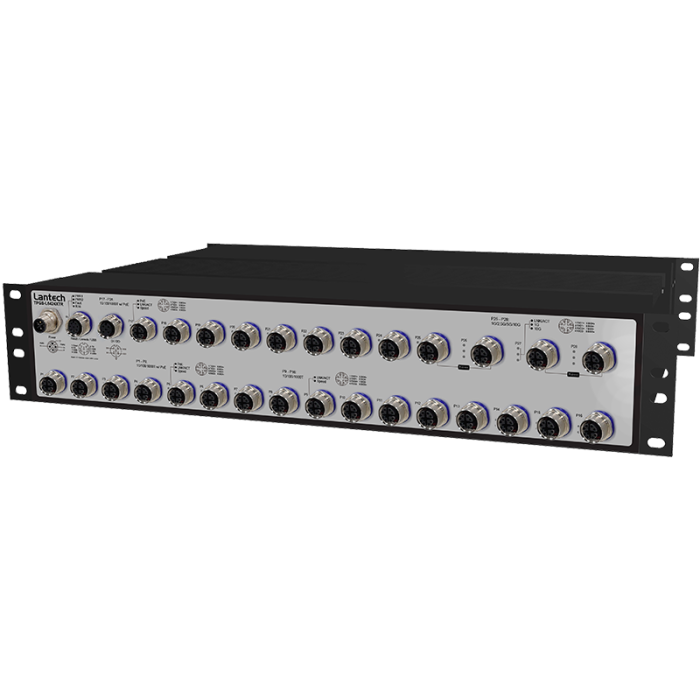

TPGS-L6424XTR 28 Port EN50155 Managed Ethernet Switch

Standards

IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE802.3an 10Gbase-T
IEEE802.3x Flow Control and Back Pressure
IEEE802.3ad Port trunk with LACP
IEEE802.1d Spanning Tree
IEEE802.1w Rapid Spanning Tree
IEEE802.1s Multiple Spanning Tree
IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
IEEE 802.1X User Authentication (Radius)
IEEE802.1p Class of Service
IEEE802.1Q VLAN Tag
IEEE802.3at/af Power over Ethernet

Switch Architecture

Back-plane (Switching Fabric): 128Gbps

Transfer Rate

14,880pps for Ethernet port
148,800pps for Fast Ethernet port
1,488,000pps for Gigabit Ethernet port

Mac Address

16K MAC address table

Jumbo frame

10KB

Connectors

10/100/1000T: 24 ports M12 8-pole X-coded with Auto MDI/MDI-X function
1G/2.5G/5G/10G Copper: 4 x ports M12 8-pole X-coded with Auto MDI/MDI-X function
Power Input connector: 1 x M12 4-pole Male S-coded
Reset/Console/USB: 1 x M12 8-pole Female A-coded
DIDO: 1 x M12 5-pole Female A-coded

Network Cable

100Base-TX: 2-pair STP Cat. 5/ 5E/ 6 cable
EIA/TIA-568 100-ohm (100m)
1000Base-TX: 2-pair STP Cat. 5/ 5E/ 6 cable
EIA/TIA-568 100-ohm (100m)
10G Copper: 4-pair STP Cat6a/7 cable

LED

Per unit: Power 1 (Green), Power 2 (Green), FAULT (Red)
10/100/1000T Ethernet port: Link/Activity (Green), Speed (Green);
R.M. indicator (Green)
PoE: Link/Act (Green) (PoE model)
1G/2.5G/5G/10G Copper port: Speed (1G/2.5G/5G: Yellow; 10G: Orange)

DI/DO

2 Digital Input (DI):
Level 0: -30~2V / Level 1: 10~30V
Max. input current:8mA
2 Digital Output (DO): Open collector to 80 VDC, 50mA

Operating Humidity

5% ~ 95% (Non-condensing)

Operating Temperature

-40°C~70°C / -40°F~158°F (85°C operation for 10min.)

Storage Temperature

-40°C~85°C / -40°F~185°F

Power Supply

16.8~137.5VDC

PoE Budget (PoE model)

160W

PoE pin assignment (PoE model)

M12 port #1~#8 (-8 model); port #1~#8 & #17~#24 (-16 model); support IEEE 802.3at/af End-point, Alternative A mode

Power Consumption

Max. 54.3W exclude PoE load

Dimensions

IP41 Aluminum alloy case (rack mount):
440mm(W)x88mm(H)x351.3mm(D)

Weight

TBC

Installation

2U Rack mount design

EMI & EMS

FCC,
EN 55032:2015,
EN 55024:2010,
EN IEC 61000-6-2,
EN IEC 61000-6-4,
IEC 61000-4-2 (ESD),
IEC 61000-4-3 (RS),
IEC 61000-4-4 (EFT),
IEC 61000-4-5 (Surge),
IEC 61000-4-6 (CS),
IEC 61000-4-8 (Magnetic field)

Stability Testing

EN61373 (Shock and Vibration)

MTBF

TBC (standards: IEC 62380)

Verifications & report

EN50155:2017,
EN50121-3-2:2016,
EN50121-4:2016,
EN45545-1, EN 45545-2 Fire & Smoke verification

Warranty

5 years

Bypass**

Up to two pairs copper bypass module on 10G copper ports to pass to next switch in case of power failure and CPU hang.

Management

SNMP v1 v2c, v3/ Web/Telnet/CLI

SNMP MIB

RFC 1213 MIBII
RFC 1158 MIB
RFC 1157 SNMP MIB,
RFC 1493 Bridge MIB*
RFC 1573 IF MIB
RFC 2674 Q-Bridge MIB*
RFC 2819 RMON MIB
Private MIB

ITU G.8032

Support ITU G.8032 for Ring protection in less than 20ms for self-heal recovery (basic mode)
Support basic single ring & enhanced ring
Enhanced G.8032 ring configuration with ease
Ring covers multicast on different ports
Train mode for auto coupling ring configuration

PoE Management (PoE model)

1. PoE Detection to check if PD hangs then restart the PD
2. PoE Scheduling to On/OFF PD upon routine time table

Per Port PoE Status (PoE model)

On/ Off, voltage, current, watts, temperature

IEC 61375-3-4 standard

1. Support Linear Topology、Linear Topology with Dual Homing、Ring Topology、Ring Topology with Dual Homing and Ladder Topology with Dual Homing.
2. Switch IP address support Consist network address definitions.
3. Set traffic priority with Supervisor/Message/Stream/Process/Best Effort in consist network.

User friendly UI

1. Auto topology drawing
2. Topology demo
3. Complete CLI for professional setting

Port Trunk with LACP

LACP Port Trunk: 8 Trunk groups/Maximum 8 trunk members

LLDP

Supports LLDP to allow switch to advise its identification and capability on the LAN

CDP

Cisco Discovery Protocol for topology mapping

Enhanced Environmental Monitoring

System status for actual input voltage, current, total power load and ambient temperature to be shown in GUI and sent alerting if any abnormal status

VLAN

Port Based VLAN
IEEE 802.1Q Tag VLAN (256 entries)/ VLAN ID (Up to 4K, VLAN ID can be assigned from 1 to 4096)
GVRP, QinQ, QoS
Protocol based VLAN
IPv4 Subnet based VLAN

Spanning Tree

Supports IEEE802.1d Spanning Tree and IEEE802.1w Rapid Spanning Tree, IEEE802.1s Multiple Spanning Tree 8 MSTI

Quality of Service

The quality of service determined by port, Tag and IPv4 Type of service, IPv4 Differentiated Services Code Points - DSCP

Class of Service

Support IEEE802.1p class of service, per port provides 8 priority queues

Remote Admin

Supports 10 IP addresses that have permission to access the switch management and to prevent unauthorized intruder.

Login Security

Supports IEEE802.1X Authentication/RADIUS

Port Mirror

Support 3 mirroring types: “RX, TX and Both packet”

Network Security

Support 10 IP addresses that have permission to access the switch management and to prevent unauthorized intruder.
802.1X access control for port based and MAC based authentication/MAC-Port binding
Ingress L2/L3
SSL/SSH v2 for Management
HTTPS for secure access to the web interface
TACACS+ for Authentication

IGMP

Support IGMP snooping v1, v2, v3; Supports IGMP static route; 1024 multicast groups; IGMP router port; IGMP query; GMRP

MLD Snooping

Support IPv6 Multicast stream

Static MAC-Port bridge

Static multicast forwarding forward reversed IGMP flow with multicast packets binding with ports for IP surveillance application

Bandwidth Control

Support ingress packet filter and egress* packet limit.
The egress* rate control supports all of packet type.
Ingress filter packet type combination rules are Broadcast/Multicast/Flooded Unicast packet, Broadcast/Multicast packet, Broadcast packet only and all types of packet.
The packet filter rate can be set an accurate value through the pull-down menu for the ingress packet filter and the egress* packet limit.

Flow Control

Supports Flow Control for Full-duplex and Back Pressure for Half-duplex

Enhanced Storm Control

prevents traffic on a LAN from being disrupted by a broadcast, multicast, or unicast storm on one of the physical interfaces

System Log

Supports system log record and remote system log server

SMTP**

Supports SMTP** Server and 8 e-mail accounts for receiving event alert

Protection

1. Miss-wiring avoidance
2. Node failure protection
3. Loop protection

SNMP Trap

Up to 5 trap stations; trap types including:

1. Device cold start
2. Authorization failure
3. Port link up/link down
4. DI/DO open/close
5. Typology change (ITU ring)
6. Power failure
7. Environmental abnormal

PXE

PXE to verify switch firmware with the latest or certain version

DHCP

Provide DHCP Client/ DHCP Server/DHCP Option 82/Port based DHCP; DHCP Snooping; DHCP Option 66; basic IPv6 DHCP server

Mac based DHCP Server

Assign IP address by Mac that can include dumb switch in DHCP network

DNS

Provide DNS client feature and can set Primary and Secondary DNS server

NTP

Provide both NTP server and NTP client

Firmware Update

Supports TFTP firmware update, TFTP backup and restore; HTTP firmware upgrade

ECN

Complies with IEC 61375-3-4 (ECN) standard. The support of Ethernet Consist Network allows interconnection between end devices located in single consist of train and interoperability with IEC61375-2-5 (TBN).

Optional L3Lite/L3*/ETBN**

Lantech OS3 are optional upgradable to L3 Lite/ L3* or ETBN communication protocols for future expansion. The optional L3Lite includes editable routing table, VRRP, Router-on-a-stick, Inter- VLAN routing. Optional ETBN complies with IEC61375-2-5 ETBN for Train Backbone Network.
Detail SPEC upon request.

Dual Image Firmware

Support dual image firmware function

Diagnostic

Support Ping, ARP table and DDM information

Configuration
upload and download

Supports editable configuration file for system quick installation
