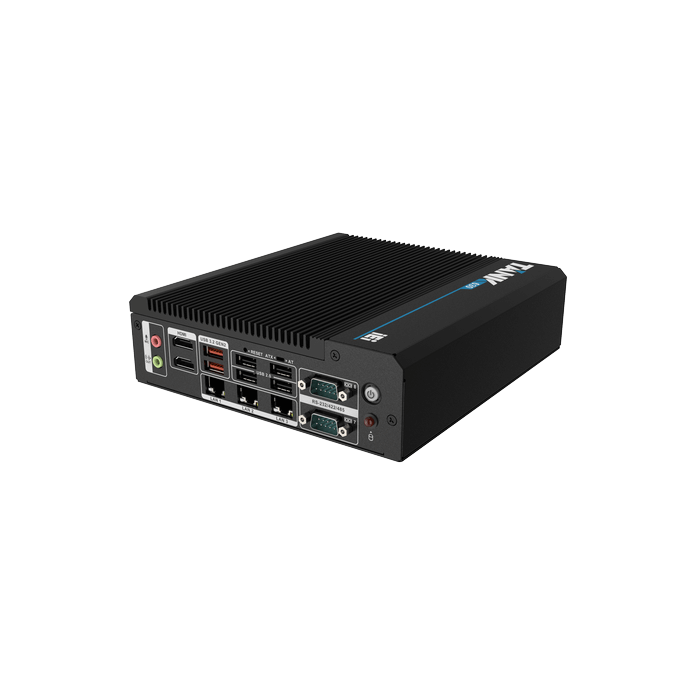

TANK-630-EHL Fanless Celeron Embedded System

IEI Integration Corp.

Fanless Embedded System with Intel Celeron J6412 processor

Key Features:

  • Fanless system with Intel® Celeron® J6412 processor
  • Multiple COM ports: six RS-232 and two RS-232/422/485
  • 2 x HDMI dual independent display
  • M.2 and one 2.5” SATA storage device
  • CE/FCC compliant

In stock

SKU
TANK-630-EHL-JC-R11

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / TANK-630-EHL Fanless Celeron Embedded System

The TANK-630-EHL is a rugged, fanless embedded system designed for industrial and harsh environments. Powered by the Intel® Celeron® J6412 quad-core processor (2.0 GHz, up to 2.6 GHz, with a low TDP of 10W), it is energy-efficient while delivering solid performance. This system supports up to 32GB of DDR4 memory and includes 8GB pre-installed, making it versatile for various applications.

Key features include:

  • I/O Versatility: Offers multiple connectivity options, including 6 RS-232 and 2 RS-232/422/485 COM ports, 2 HDMI outputs supporting dual independent displays, 3 2.5GbE LAN ports, 2 USB 3.2 Gen2, and 4 USB 2.0 ports.
  • Expandable Storage and Wireless Support: This unit accommodates one 2.5” SATA storage drive and multiple M.2 slots (A-key, B-key, M-key) for storage or wireless module integration.
  • Durable and Compact Design: Constructed with extruded aluminium for durability, it supports VESA and wall mounting. The system operates from -10°C to 50°C with proper airflow and meets CE, FCC, and UKCA compliance standards.
  • Fanless Operation: Ensures silent and reliable performance, making it suitable for applications like factory automation, IoT, and edge computing.
    The TANK-630-EHL is also compatible with Windows 10/11 and Linux operating systems.



More Information

brand IEI Integration Corp.
Specifications

Hardware Spec.

Form factor
SBC Form Factor
  •  Supported CPU:
    Intel® Celeron® J6412 2.0 GHz (up to 2.6 GHz, quad-core, TDP 10W)
  •  Chipset:
    SoC
  •  System Memory:
    2 x SO-DIMM DDR4 3200 (8GB pre-installed) (up to 32GB)
  •  Power:
    DC Jack: 12 ~ 28V DC
    Terminal Block: 12 ~ 28V DC
    Consumption: 12V@3.36 (Intel® Celeron® J6412 with 8GB DDR4 Memory)
I/O Interface
I/O Ports
  •  USB:
    2 x USB3.2 Gen2
    4 x USB 2.0
  •  Ethernet:
    3 x 2.5 GbE by Intel® I225-V/I226-V controller
  •  Display:
    2 x HDMI™ (up to 4K@30Hz)
  •  COM Port:
    2 x RS-232/422/485 (DB-9)
    6 x RS-232 (DB-9)
  •  Digital I/O:
    12-bit Digital I/O (DB15)
  •  Audio:
    1 x Line-out
    1 x Mic-in
  •  Wireless:
    1 x 802.11a/b/g/n/ac (optional)
  •  TPM:
    1 x TPM (2 x10 pin)
    Intel PTT
  •  Watchdog Timer:
    Programmable 1 ~ 255 sec/min
Expansion Slots
Expansion Slots
  •  M.2:
    1 x 2230 A-key (PCIe Gen3 x1/USB 2.0)
    1 x 2042/52/80 B-key (SATA/USB 2.0)
    1 x 2280 M-key (PCIe Gen3 x2)
System
Cooling method / System Fan Fanless
Drive Bays 1 x 2.5” SATA 6Gb/s HDD/SSD bay
Indicator & Buttons
Buttons 1 x Power Button
1 x Reset Button
1 x AT/ATX Switch
Indicators 1 x LED for Power
1 x LED for HDD
Physical Characteristics
Construction Extruded aluminium alloy
Colour
Colour Black
Dimensions
Dimensions 184 x 200.6 x 53 (mm)
Weight
Weight 2.04 /2.29 kg
Environment
Operating Temperature -10°C ~ 50°C with 0.7M/S air flow (M.2)
Humidity 10% ~ 95% non-condensing
Operating Vibration MIL-STD-810G 514.6C-1 (SSD)
Operating Shock Half-sine wave shock 5G, 11ms, 100 shocks per axis (SSD)
Safety & EMC CE, FCC, UKCA
OS Support
OS Support Microsoft® Windows® 10/11, Linux


Package Contents

Package Content

  • 1 x Mounting Bracket

  • 1 x Screw pack
Description

The TANK-630-EHL is a rugged, fanless embedded system designed for industrial and harsh environments. Powered by the Intel® Celeron® J6412 quad-core processor (2.0 GHz, up to 2.6 GHz, with a low TDP of 10W), it is energy-efficient while delivering solid performance. This system supports up to 32GB of DDR4 memory and includes 8GB pre-installed, making it versatile for various applications.

Key features include:

  • I/O Versatility: Offers multiple connectivity options, including 6 RS-232 and 2 RS-232/422/485 COM ports, 2 HDMI outputs supporting dual independent displays, 3 2.5GbE LAN ports, 2 USB 3.2 Gen2, and 4 USB 2.0 ports.
  • Expandable Storage and Wireless Support: This unit accommodates one 2.5” SATA storage drive and multiple M.2 slots (A-key, B-key, M-key) for storage or wireless module integration.
  • Durable and Compact Design: Constructed with extruded aluminium for durability, it supports VESA and wall mounting. The system operates from -10°C to 50°C with proper airflow and meets CE, FCC, and UKCA compliance standards.
  • Fanless Operation: Ensures silent and reliable performance, making it suitable for applications like factory automation, IoT, and edge computing.
    The TANK-630-EHL is also compatible with Windows 10/11 and Linux operating systems.
