Description / TANK-801-BT - Celeron J1900, 16-bit digital I/O

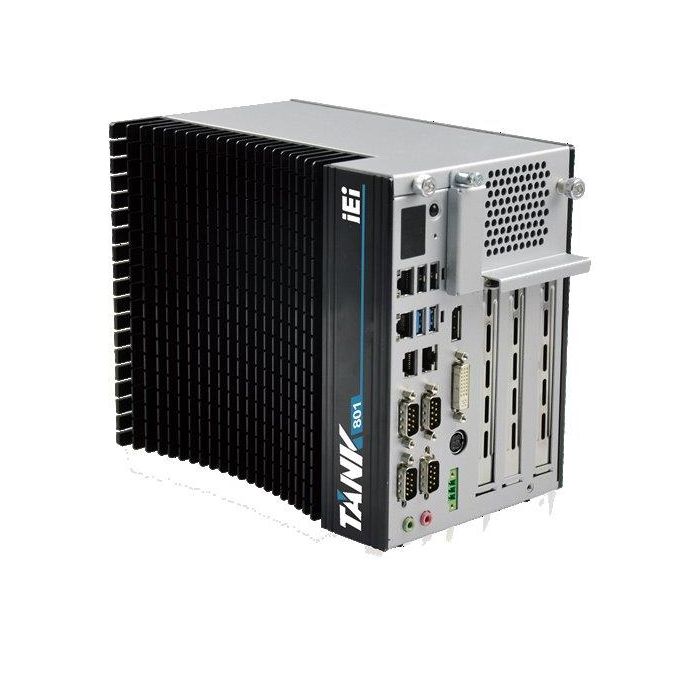

Fanless embedded system with Intel® Celeron® J1900 2 GHz, 10W

· Intel® Celeron® J1900 2 GHz, 10W

· 16-bit digital I/O, 8-bit input/8-bit output

· 1 x DVI-I ,1 x DisplayPort

· Various expansion type:

o 3A: One PCIe x1 + Two x PCI

o 3B: Two PCIe x1 + One x PCI

o 3C: Three x PCI

· Dual DC power input

Brand

IEI Integration Corp.

Specifications

Spec Item	Description
Form factor
SBC Form Factor	CPU: Intel® Celeron® J1900 2 GHz Chipset:SoC System Memory: One 204-pin DDR3L 1.35V SO-DIMM 2 GB pre-installed (system max: 8G)
I/O Interface
I/O Ports	2 x USB 3.0 2 x USB 3.0 Ethernet: 2 x RJ-45 1 x PCIe GbE by Intel® I210 1 x PCIe GbE by Intel® I211 COM Port: 2 x RS-232 (DB-9) 2 x RS-232/422/485 (DB-9, with isolation) 16-bit digital I/O, 8-bit input/8-bit output 1 x DisplayPort, 1 x DVI-I 1 x Line-out, 1 x Mic-in
Expansion Slots
Expansion Slots	1 x Full size PCIe Mini PCI/PCIe: 3A: One PCIe x1 + Two x PCI 3B: Two PCIe x1 + One x PCI 3C: Three x PCI
System
Cooling method / System Fan	Fanless
Drive Bays	1 x 2.5' SATA 6Gb/s HDD/SSD Bay
Color
Color	Black C + Silver
Dimensions
Dimensions	136 x 219 x 188
Weight
Weight	2.8 kg/4.3 kg
Environment
Operating Temperature	-20°C ~ 60°C with air flow (SSD)
Humidity	5% ~ 95%, non-condensing
