Shop TANK-860-HM86 - 4th gen i series CPU + Intel HM86

IEI Integration Corp.

Fanless wide temperature embedded system with 4th generation Intel® Core™ CPU

In stock

Name *

Phone *

Email *

Postcode *

Message *

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / TANK-860-HM86 - 4th gen i series CPU + Intel HM86

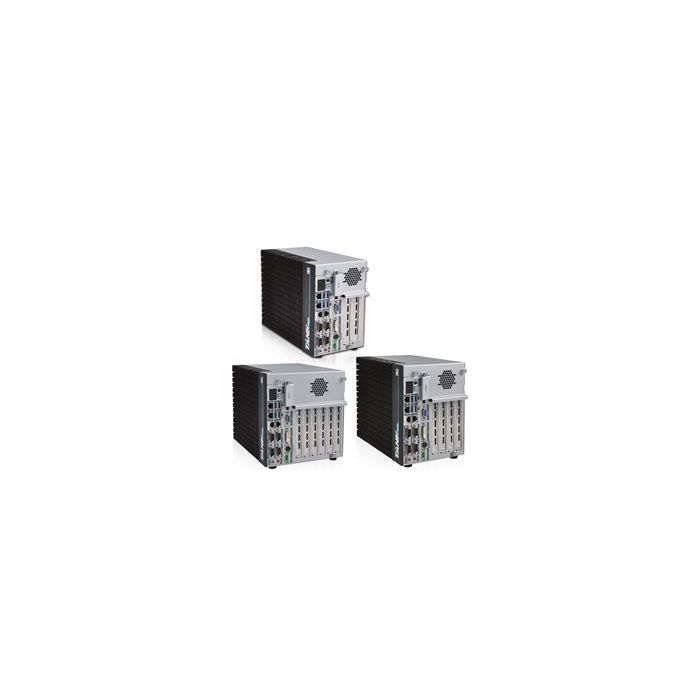

Fanless wide temperature embedded system with 4th generation Intel® Core™ CPU

· Intel® HM86 chipset + 4th generation Intel® Core™ CPU

· Great flexibility of expansion slots

o 2-slot model: 2 x PCIe by 16, 1 x PCIe Mini slot

o 4-slot model: 2 x PCIe by 16, 2 x PCI, 2 x PCIe Mini slot

o 6-slot model: 1 x PCIe by 16, 2 x PCIe by 4, 3 x PCI, 2 x PCIe Mini slot

· IPMI function for remote control management

· Three independent video outputs support high resolution

· 2 x 2.5" SATA HDD bay design fulfils high storage demand

Brand

IEI Integration Corp.

Specifications

Spec Item	Description
Form factor
SBC Form Factor	CPU: Intel® Core™ i5-4400E 2.7 GHz Intel® Celeron® 2000E 2.2 GHz Chipset:Intel® HM86 System Memory 2 x 204-pin DDR3 SO-DIMM slot. Pre-installed one 4 GB SO-DIMM(system max: 16 GB)
I/O Interface
I/O Ports	4 x USB 3.0 2 x USB 2.0 Ethernet: 2 x RJ-45 1 x PCIe GbE by Intel® I210 1 x PCIe GbE by Intel® I217LM COM Port: 4 x RS-232 (DB-9, two with isolation) 2 x RS-422/485 (RJ-45) Digital I/O:8-bit digital I/O, 4-bit input/4-bit output Display: 1 x VGA, 1 x DVI-I, 1 x DisplayPort Resolution VGA: Up to 1920 x 1200@60Hz DVI-I: Up to 2500 x 1600@60Hz Displayport: Up to 2500 x 1600@60Hz Audio: 1 x Line-out, 1 x Mic-in Wireless 1 x 802.11b/g/n (optional)
Expansion Slots
Expansion Slots	PCI/PCIe 2 A: Two PCIe x8 (physical PCIe x16 slot) 4 A: Two PCIe x8 (physical PCIe x16 slot) +2 x PCI 6 A: One PCIe x8 (physical PCIe x16 slot) +two PCIe x4 + three PCI PCIe Mini 2A: 1 x Full-size (co-lay mSATA) 4A: 1 x Full-size (co-lay mSATA) +1 x Full-size (on backplane) 6A: 1 x Full-size (co-lay mSATA) +1 x Full-size (on backplane)
System
Cooling method / System Fan	Fanless
Drive Bays	2 x 2.5"" SATA 6Gb/s HDD/SSD bay
Color
Color	Black C + Silver
Dimensions
Dimensions	2 slot: 121.5 x 255.2 x 205 4 slot: 154.8 x 255.2 x 205 6 slot: 195.4 x 255.2 x 205
Environment
Operating Temperature	-20°C ~ 60°C with air flow (SSD)
Humidity	5% ~ 95%, non-condensing
