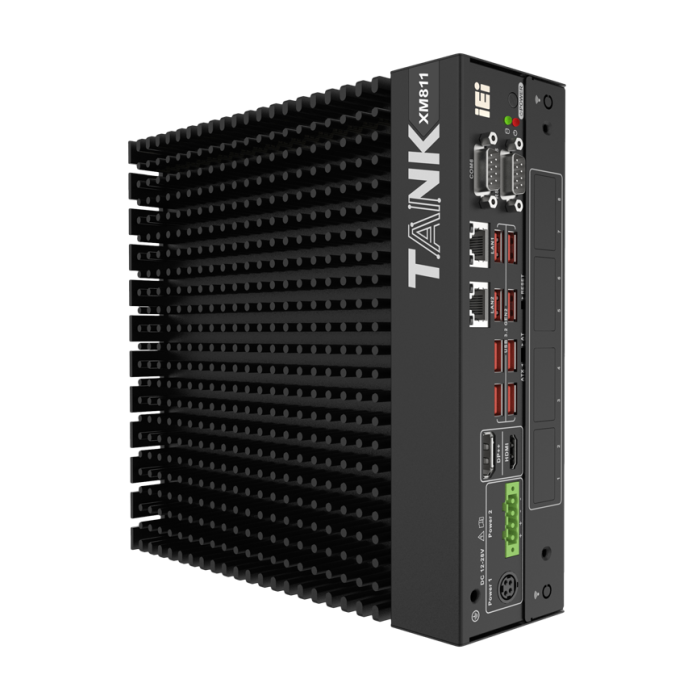

TANK-XM811 13th/14th Gen Fanless Embedded Computer

IEI Integration Corp.

High-Performance 12th/13th/14th Generation Intel Core Fanless Embedded Computer

Key Features:

  • Supported CPUs:
    • Intel® Coreâ„¢ i5-12500TE 1.9GHz (up to 4.3GHz, 6-core, 35W TDP)
    • Intel® Coreâ„¢ i7-12700TE 1.4GHz (up to 4.6GHz, 12-core, 35W TDP)
    • Intel® Coreâ„¢ i9-12900TE 1.1 GHz (up to 4.8 GHz, 16-core, 35W TDP)
  • 2 x 2.5GbE ports
  • Multiple USB ports and serial ports
  • Multiple internal expansion boards for flexible selection
  • Various optional backplanes and chassis
  • CE/FCC compliant

In stock

SKU
TANK-XM811-ixAx-R11

Have a Question about this product?

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Description / TANK-XM811 13th/14th Gen Fanless Embedded Computer

IEI has engineered the TANK-XM811 with the latest technologies to deliver optimized and reliable processing performance at the rugged edge. This product features 12th generation Intel® Core™ processors, expandable GPU power, rapid NVMe storage, and scalability through IEI's eChassis modules. This product can be used for various industrial IoT applications, including surveillance, transportation, and advanced manufacturing.

Furthermore, the system effectively reduces lead times and inventory carrying costs by providing comprehensive modularized options and easy configuration.

More Information

brand IEI Integration Corp.
Specifications

Form factor

SBC Form Factor

  •  CPU:

    12th/13th/14th Gen Intel® Core™ CPU 35/65W

    Intel® Core™ i5-12500TE 1.9GHz (up to 4.3GHz, 6-core, 35W TDP)

    Intel® Core™ i7-12700TE 1.4GHz (up to 4.6GHz, 12-core, 35W TDP)

    Intel® Core™ i9-12900TE 1.1 GHz (up to 4.8 GHz, 16-core, 35W TDP)

  •  Chipset:

    R680E

  •  System Memory:

    2 x SO-DIMM DDR4 3200 (8GB pre-installed) (up to 64GB)

  •  Power:

    DC Jack: 12 V~28 V DC

    Terminal Block: 12 V~28 V DC

    Consumption: 12V @ 8.8A (Intel® Core™ i9-12900TE with 16GB memory)

I/O Interface

I/O Ports

  •  USB:

    8 x USB 3.2 Gen 2

  •  Ethernet:

    2 x RJ-45:

    2 x 2.5 GbE by Intel ® I226V (colay I226LM)

  •  COM Port:

    2 x RS-232/422/485

    4 x RS-232

  •  Digital I/O:

    12-bit Digital I/O (6-in/ 6-out)

  •  Display:

    1 x HDMIâ„¢

    1 x DP++

  •  TPM:

    Support Intel PTT

  •  Watchdog Timer:

    Programmable 1 ~ 255 sec/min

Expansion Slots

Expansion Slots

  •  M.2:

    1 x 2280 M-key (PCIe x4)

    1 x 2230 A-key (USB+PCIe x1, supports vPRO)

  •  Backplane:

    Optional

System

Cooling method / System Fan

Fanless

4-pin external system fan connector

Drive Bays

1 x 2.5＂ SATA 6Gb/s HDD/SSD bay

Indicator & Buttons

Buttons

1 x Power button

1 x Reset button

1 x AT/ATX switch

Indicators

1 x Power LED (green)

1 x HDD LED (yellow)

Physical Characteristics

Construction

Extruded aluminium alloy

Colour

Colour

Black

Dimensions

Dimensions

230.6 x 256.04 x 76.2

Weight

Weight

3.33/3.7 kg

Environment

Operating Temperature

-20°C ~ 60°C with air flow (CPU TDP35W & SSD)

-20°C ~ 50°C with air flow (CPU TDP65W & SSD)

Humidity

10% ~ 95% non-condensing

Operating Vibration

Half-sine wave shock 5G, 11ms, 100 shocks per axis (SSD)

Operating Shock

MIL-STD-810G 514.6C-1 (SSD)

Safety & EMC

CE/FCC compliant

OS Support

OS Support

Microsoft Windows 10 / Windows 11, Linux
Description

IEI has engineered the TANK-XM811 with the latest technologies to deliver optimized and reliable processing performance at the rugged edge. This product features 12th generation Intel® Core™ processors, expandable GPU power, rapid NVMe storage, and scalability through IEI's eChassis modules. This product can be used for various industrial IoT applications, including surveillance, transportation, and advanced manufacturing.

Furthermore, the system effectively reduces lead times and inventory carrying costs by providing comprehensive modularized options and easy configuration.
