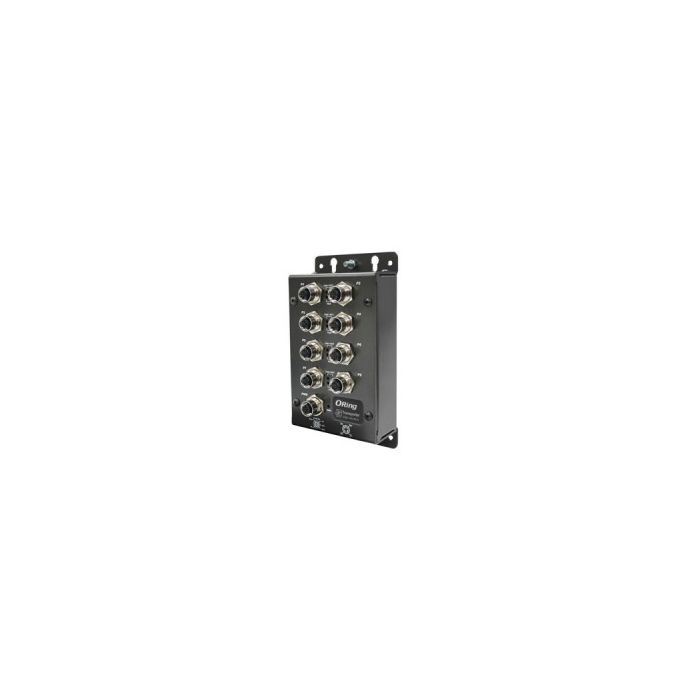

TES-180-M12 - 8 port unmanaged switch
▪ Leading EN50155-compliant Ethernet switch for rolling stock application ▪ Support auto-negotiation and auto-MDI/MDI-X ▪ Support store and forward transmission ▪ Support flow control ▪ Warning system by relay output ▪ Ultra-rugged enclosure for toughest industrial usages ▪ Wall mounting enabled
More Information
Specifications
Physical Ports
10/100 Base-T(X) Ports in M12 (D-coding) Auto MDI/MDIX
8 x M12 connector (D-coding)
Technology
Ethernet Standards
IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX IEEE 802.3x for Flow control
MAC Table
8192 MAC addresses
Processing
Store-and-Forward
LED Indicators
Power Indicator
Green : Power LED
Fault Indicatorr
Amber : Indicate power failure event
10/100Base-T(X) M12 Port Indicator
Green for port Link/Act. Amber for Duplex/Collision
Fault contact
Relay
Relay output to carry capacity of 3A at 24VDC on M12 connector (A-coding)
Power
Input Power
12~48VDC on M12 connector
Power Consumption (Typ.)
4.32 Watts
Overload Current Protection
Present
Reverse Polarity Protection
Present
Physical Characteristic
Enclosure
IP-30
Dimension (W x D x H)
88.9 (w) x 40 (D) x178.2 (H) mm
Weight (g)
510 g
Environmental
Storage Temperature
-40 to 85°C (-40 to 185°F)
Operating Temperature
-40 to 70°C (-40 to 158°F)
Operating Humidity
5% to 95% Non-condensing
Regulatory approvals
EMI
FCC Part 15, CISPR (EN55022) class A, EN50155 (EN50121-3-2, EN55011, EN50121-4)
